Pinpoint Test B: All Door Locks Are Inoperative

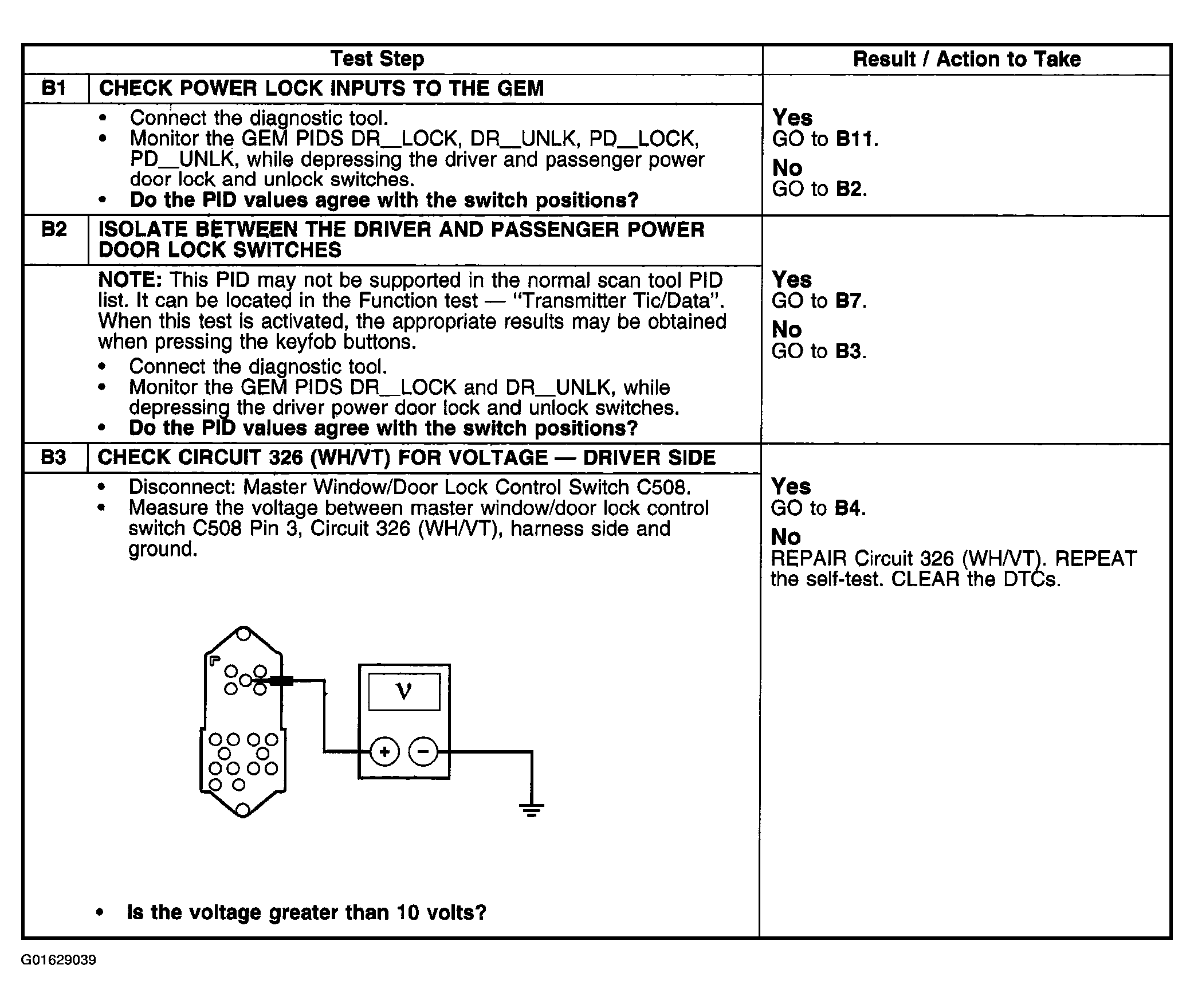

Fig 1: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B1-B3)

Courtesy of FORD MOTOR CO.

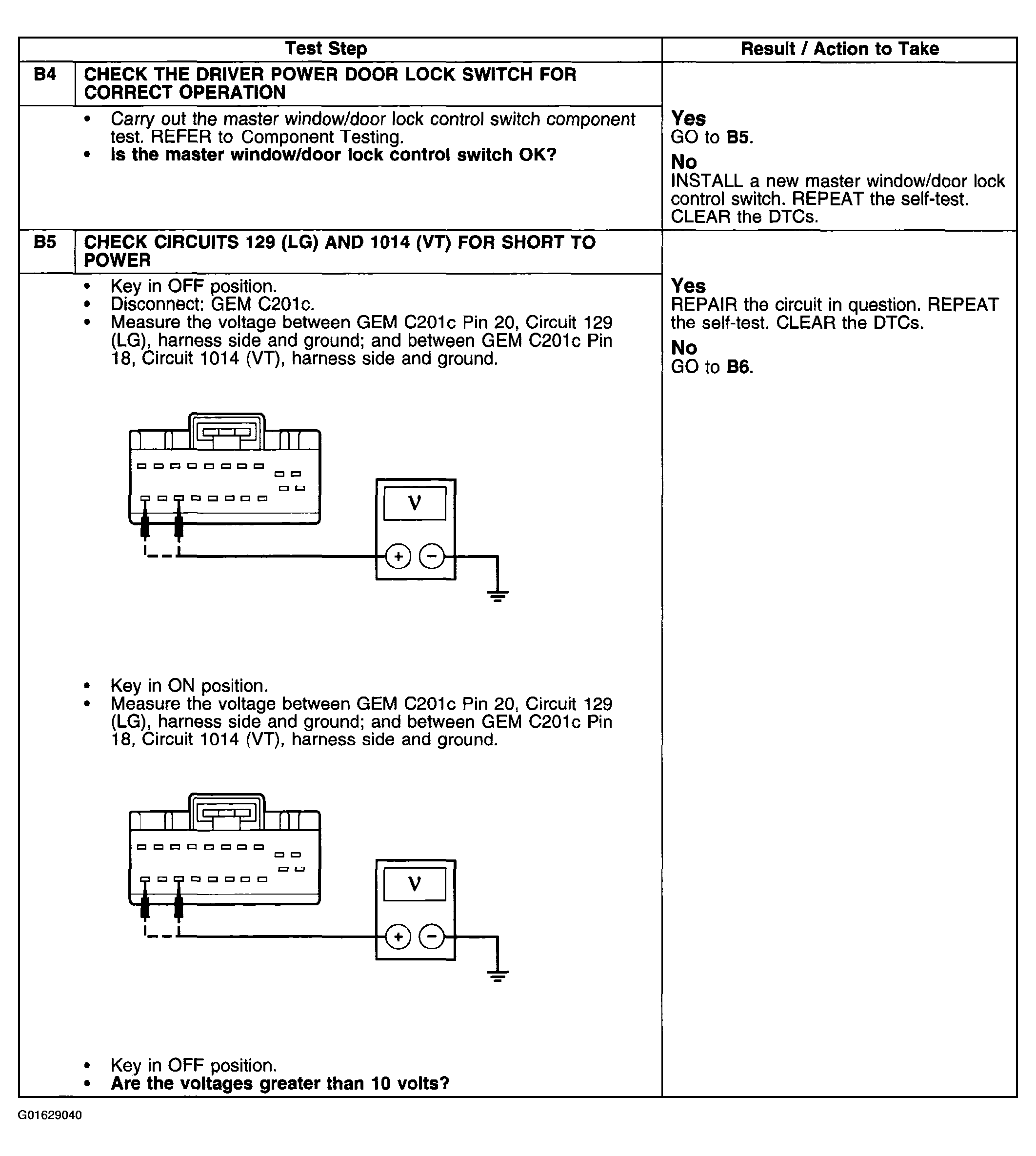

Fig 2: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B4 & B5)

Courtesy of FORD MOTOR CO.

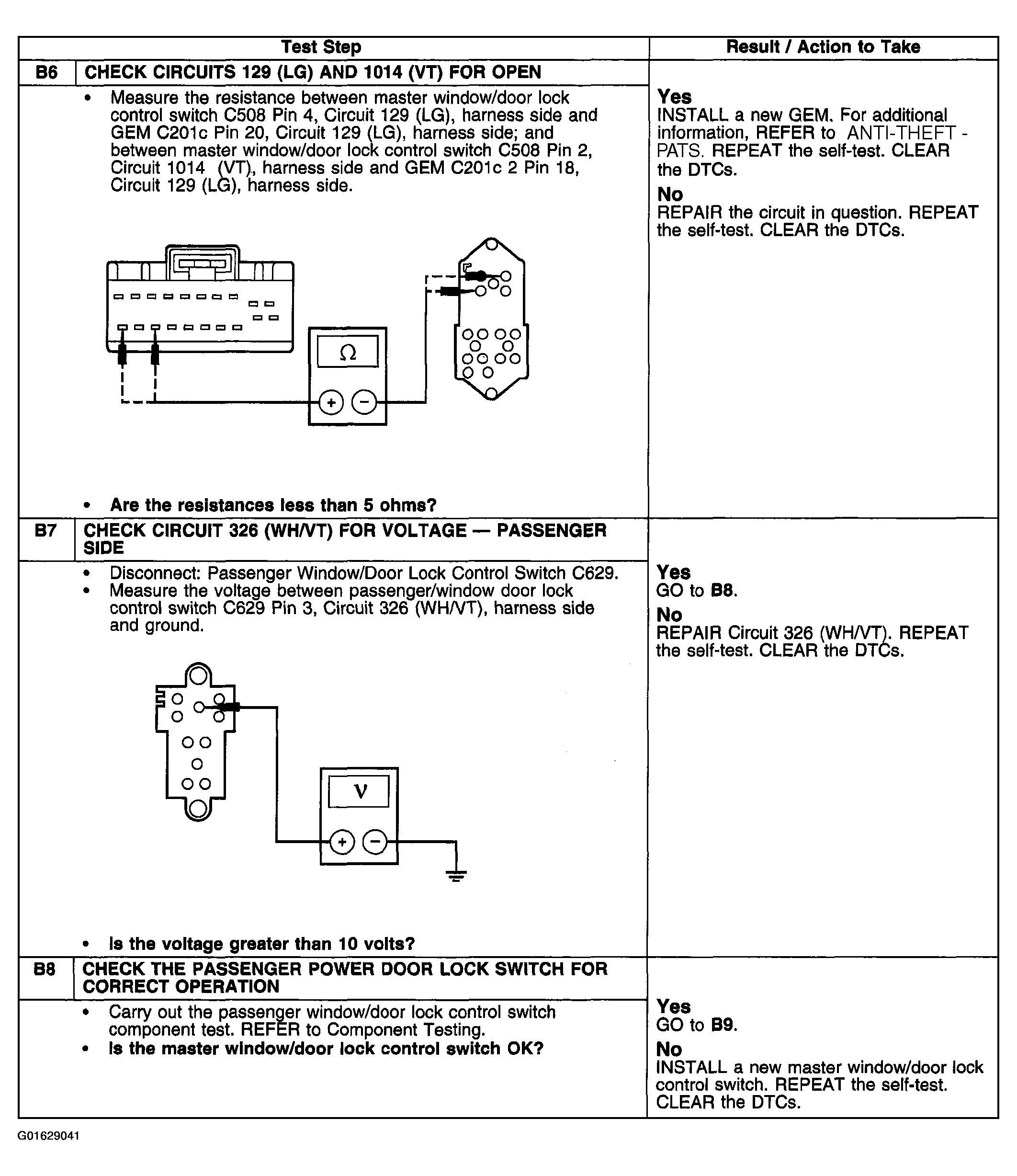

Fig 3: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B6-B8)

Courtesy of FORD MOTOR CO.

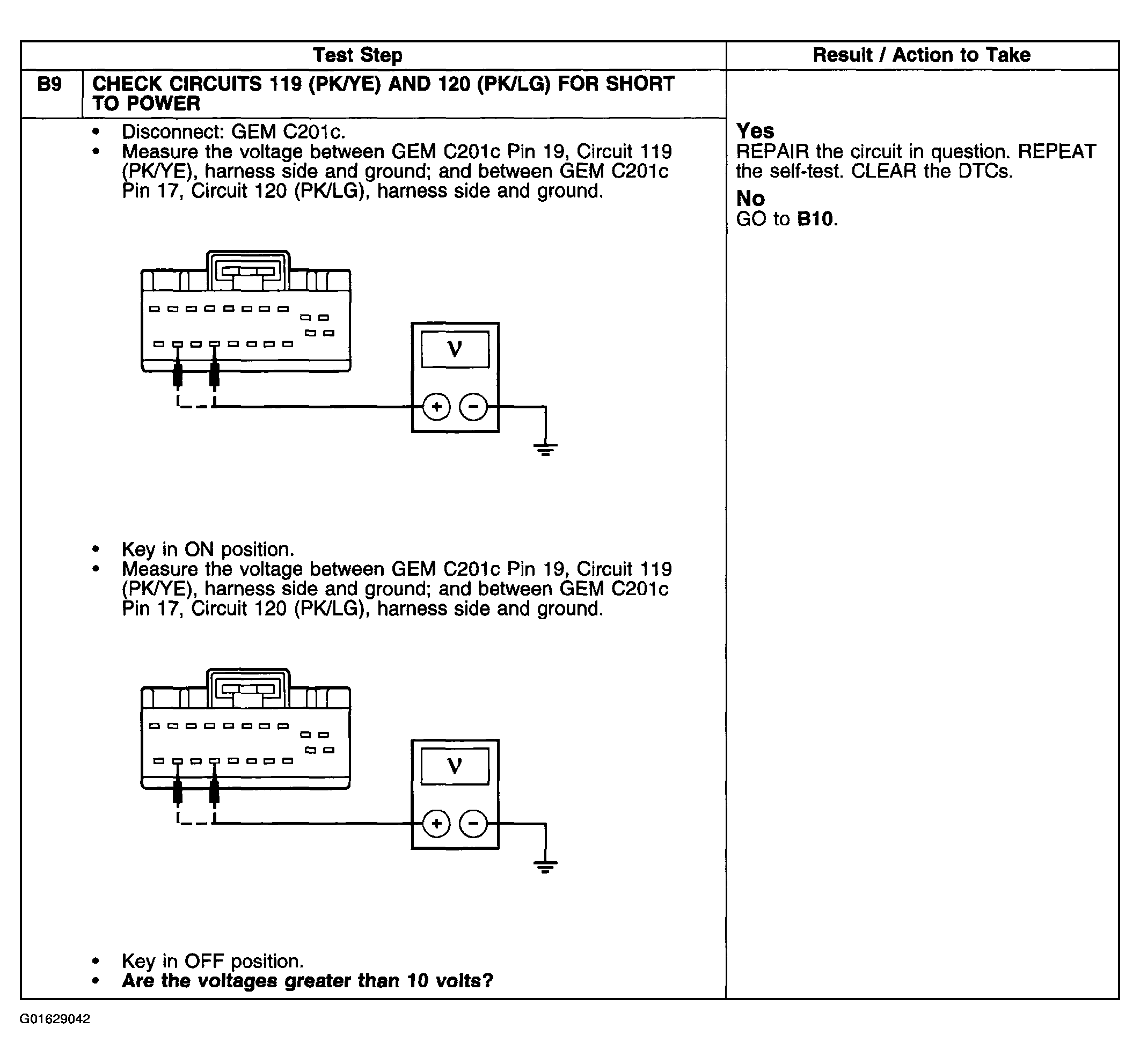

Fig 4: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B9)

Courtesy of FORD MOTOR CO.

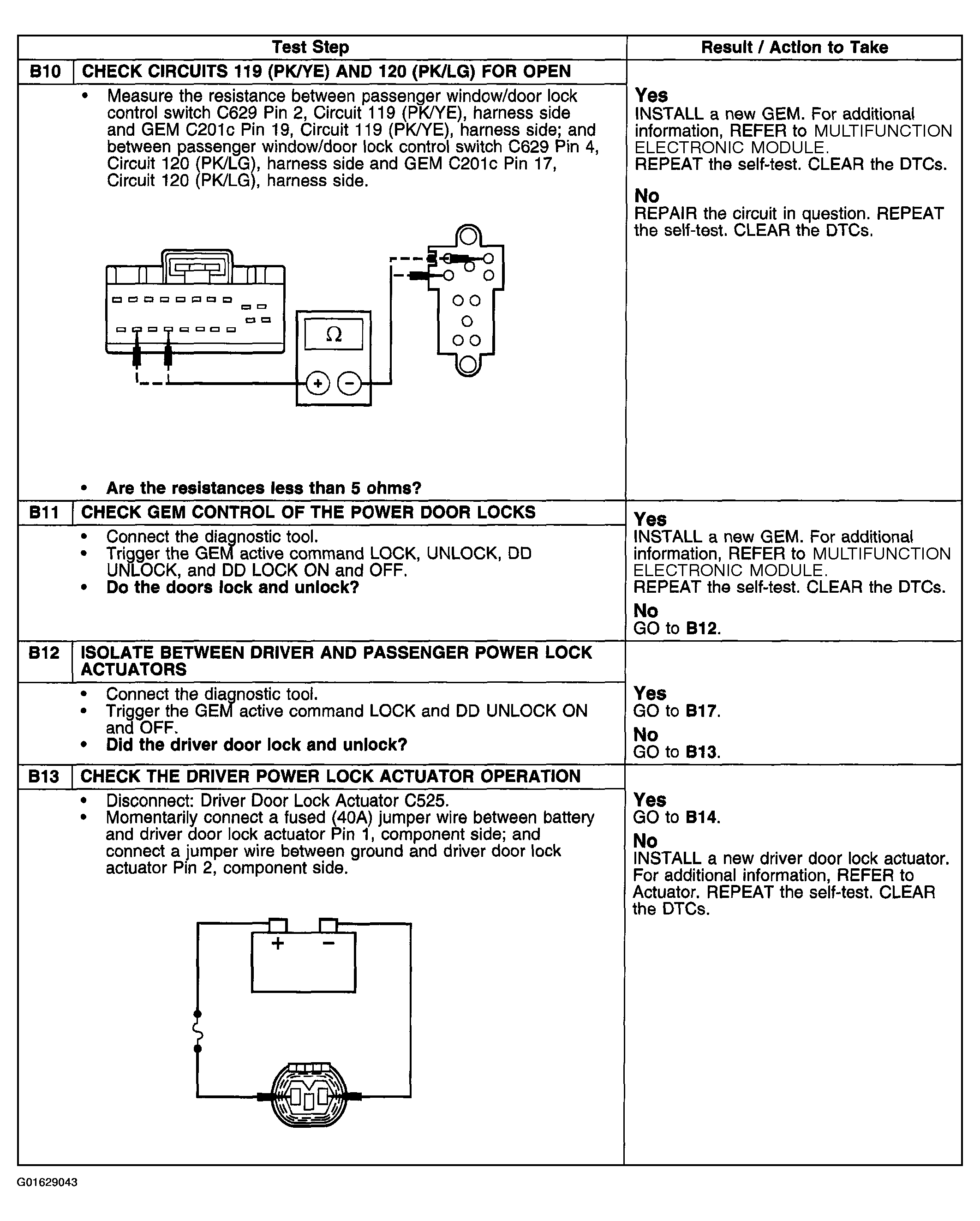

Fig 5: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B10-B13)

Courtesy of FORD MOTOR CO.

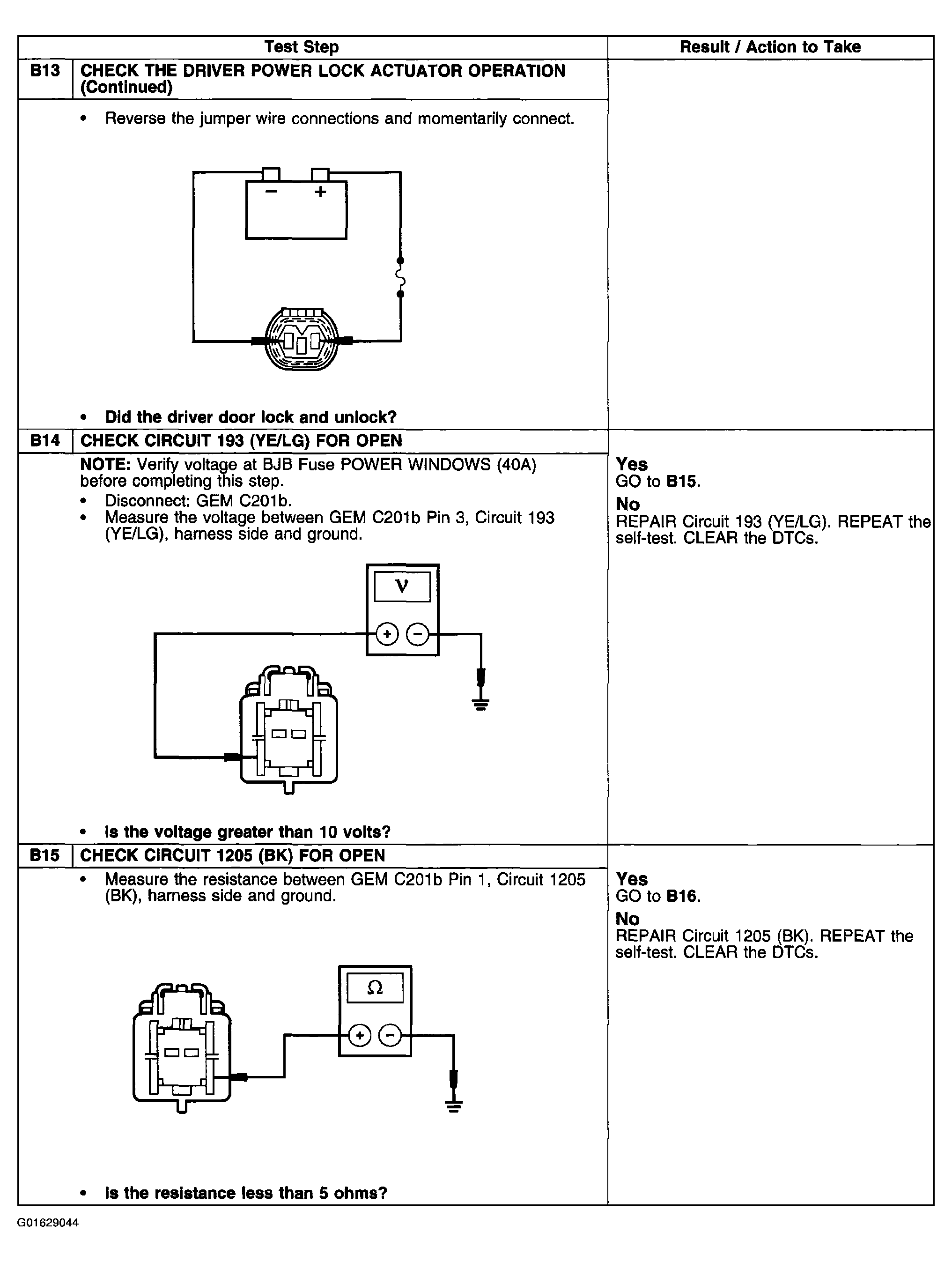

Fig 6: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B13-B15)

Courtesy of FORD MOTOR CO.

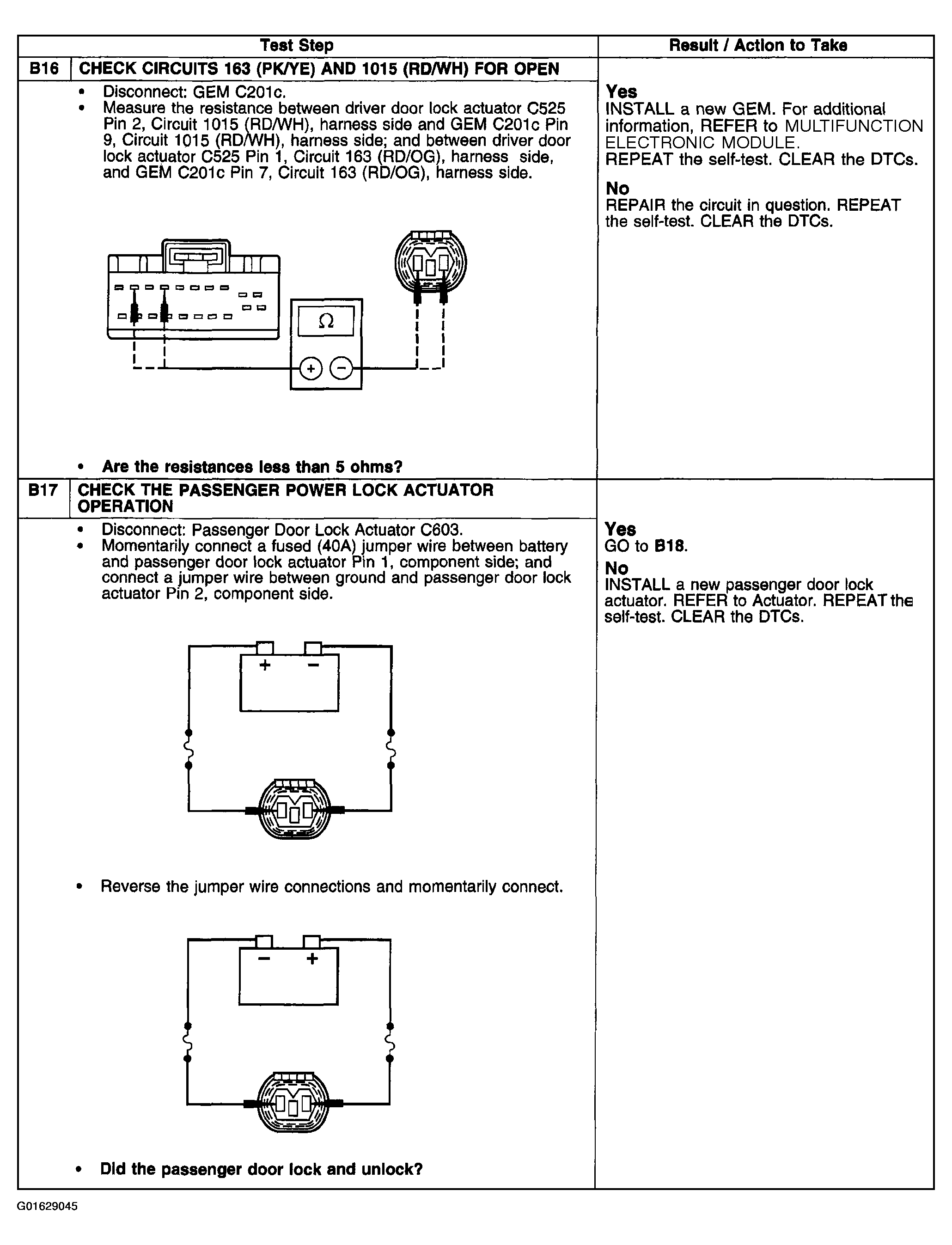

Fig 7: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B16 & B17)

Courtesy of FORD MOTOR CO.

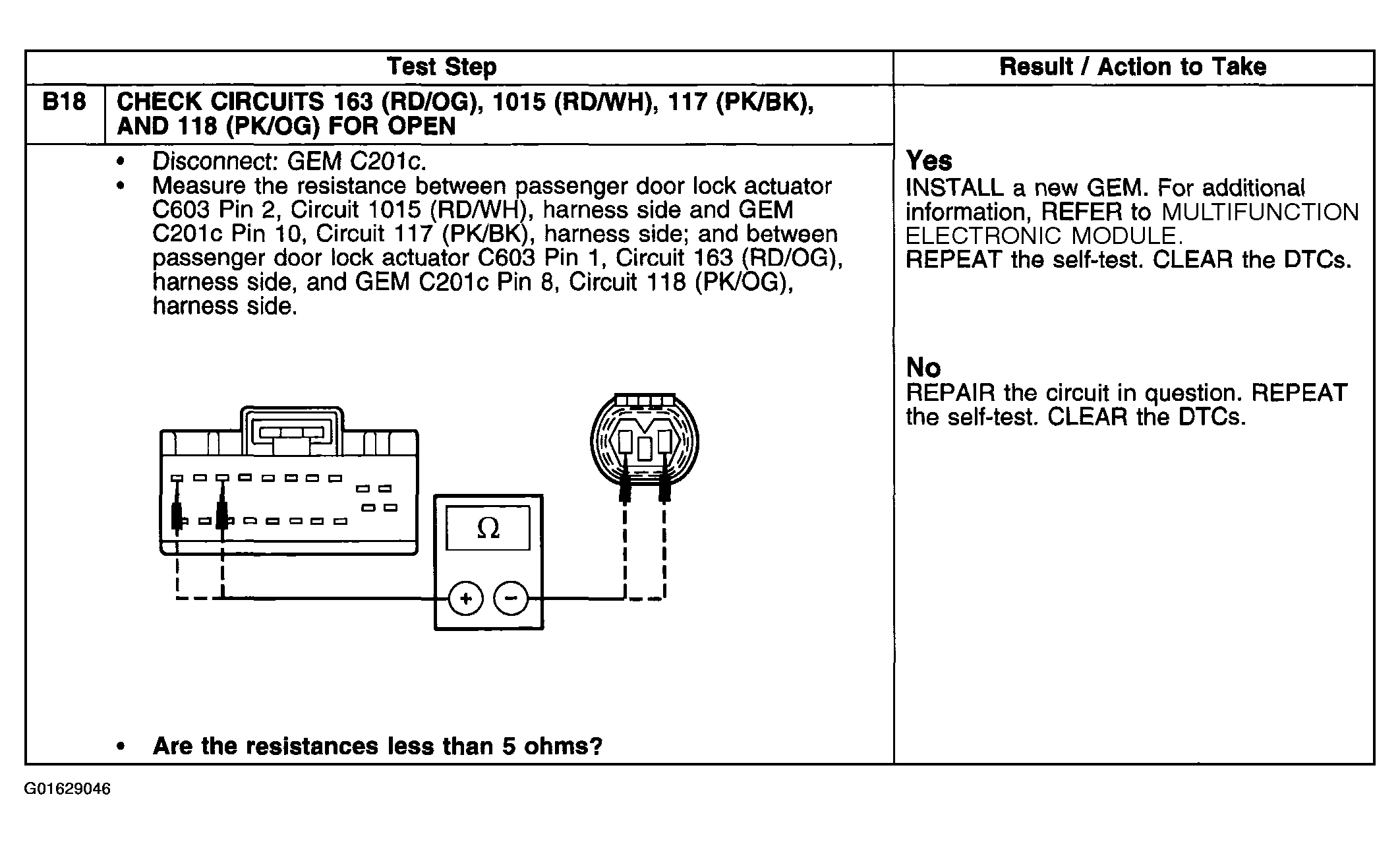

Fig 8: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B18)

Courtesy of FORD MOTOR CO.
