Torque Specifications

WARNING: This page is about a different variant/trim than selected.
Fig 1: Clutch Control Torque Specifications Table (1 Of 2)
G01627215Courtesy of FORD MOTOR CO.

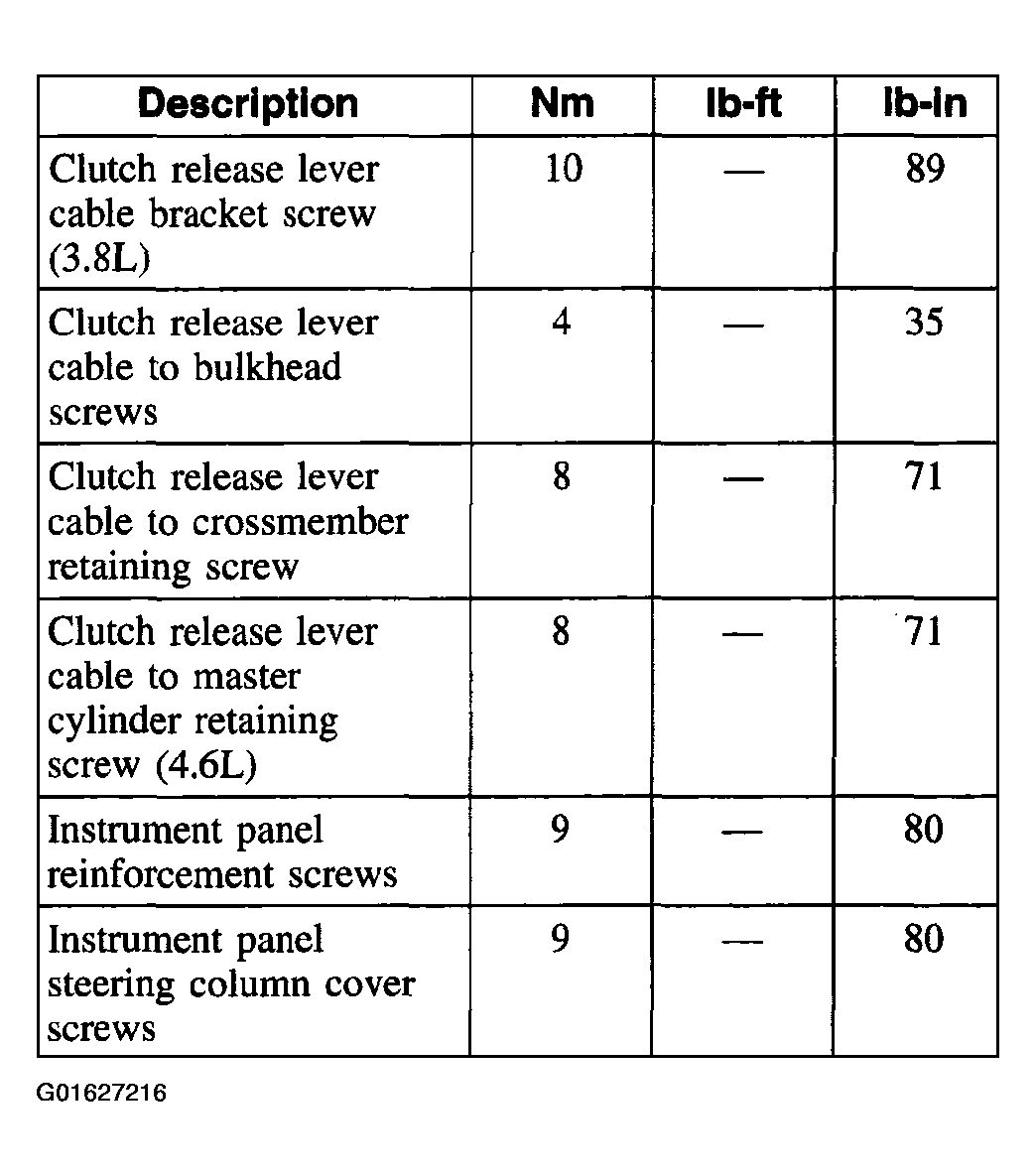

Fig 2: Clutch Control Torque Specifications Table (2 Of 2)
G01627216Courtesy of FORD MOTOR CO.
