Timing Drive Components: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Since the engine is not free-wheeling, if the crankshaft or the camshafts are moved in any manner during removal and installation, the crankshaft and the camshafts must be re-synchronized.
  1. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .
  2. Remove the crankshaft sensor ring from the crankshaft.

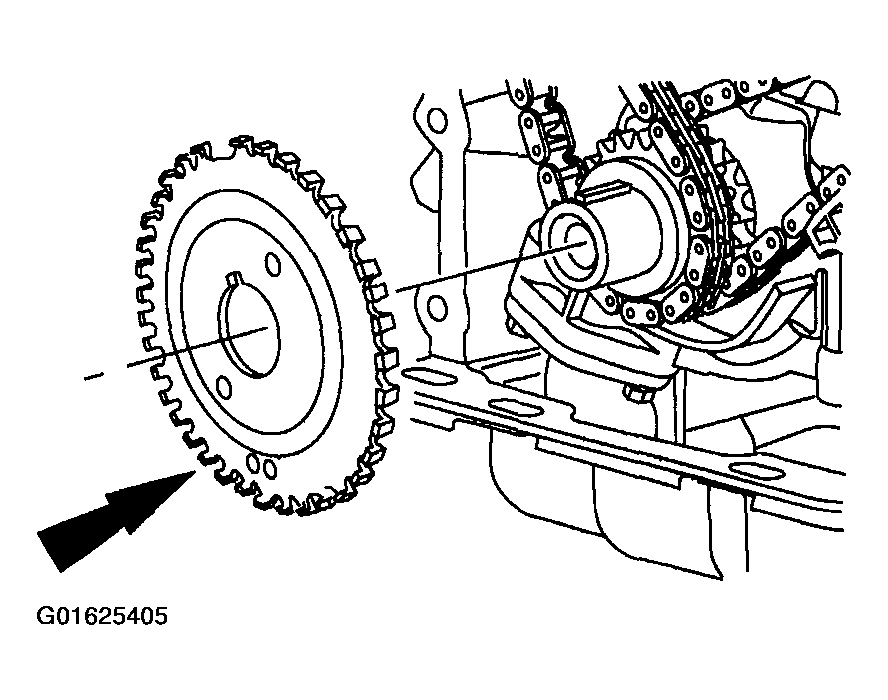

    Fig 1: Removing Crankshaft Sensor Ring From Crankshaft
    G01625405Courtesy of FORD MOTOR CO.
    3. CAUTION: Unless otherwise instructed, at no time when the timing chains are removed and the cylinder heads are installed is the crankshaft or the camshaft to be rotated. Severe piston and valve damage will occur.

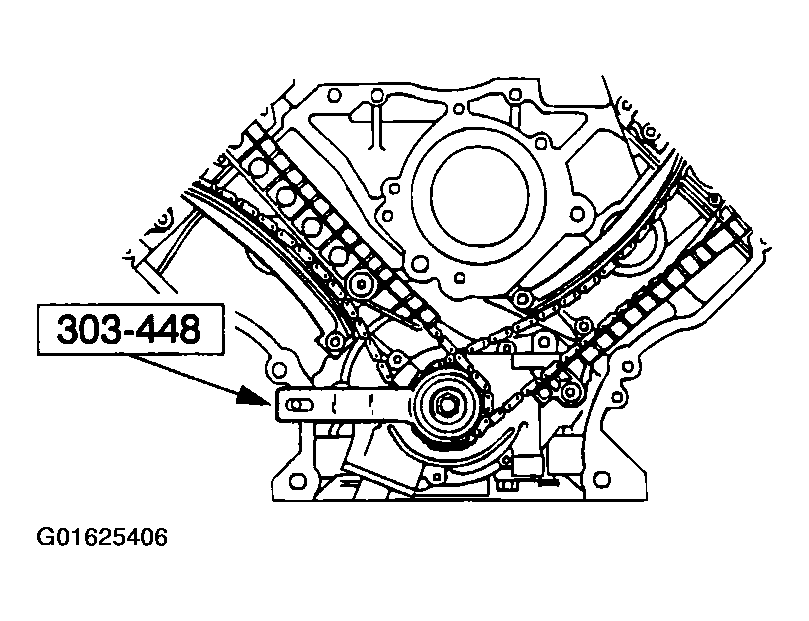

    Fig 2: Positioning Crankshaft
    G01625406Courtesy of FORD MOTOR CO.
  3. Using the special tool, position the crankshaft as shown.
    4. CAUTION: The camshaft timing marks must be correctly lined up or damage to the valves and pistons can occur.
    NOTE: The copper links on the timing chain may not line up with the timing marks on the sprockets.
    Fig 3: Identifying Positioning Of Timing Marks On Camshaft Sprockets
    G01625407Courtesy of FORD MOTOR CO.
  4. Make sure the timing marks on the camshaft sprockets are correctly positioned. If necessary, turn the crankshaft one full turn clockwise to correctly position the sprockets.
    5. NOTE: LH shown; RH similar.

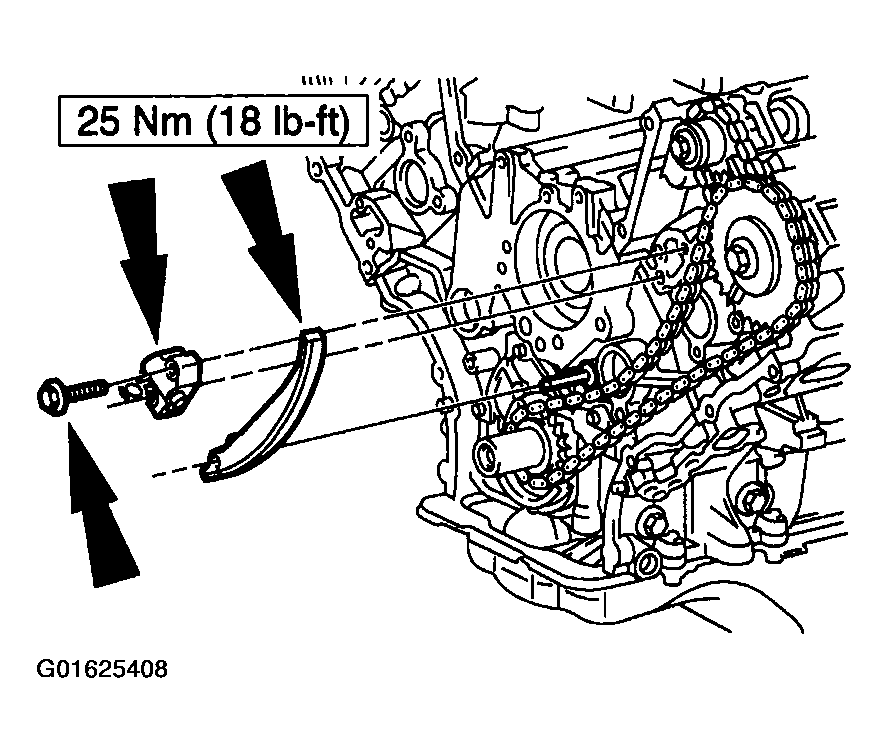

    Fig 4: Removing Timing Chain Tensioner And Tensioner Arm
    G01625408Courtesy of FORD MOTOR CO.
  5. Remove the two bolts, the timing chain tensioner and tensioner arm.
    6. CAUTION: Unless otherwise instructed, at no time when the timing chains are removed and the cylinder heads are installed is the crankshaft or the camshaft to be rotated. Severe piston and valve damage will occur.
  6. Remove the LH and RH timing chains and the crankshaft sprocket.
    • Remove the special tool from the crankshaft.
    • Remove the RH timing chain from camshaft sprocket.
    • Remove the RH timing chain from the crankshaft sprocket.
    • Remove the LH timing chain from the camshaft sprocket.
    • Remove the LH timing chain and the crankshaft sprocket.

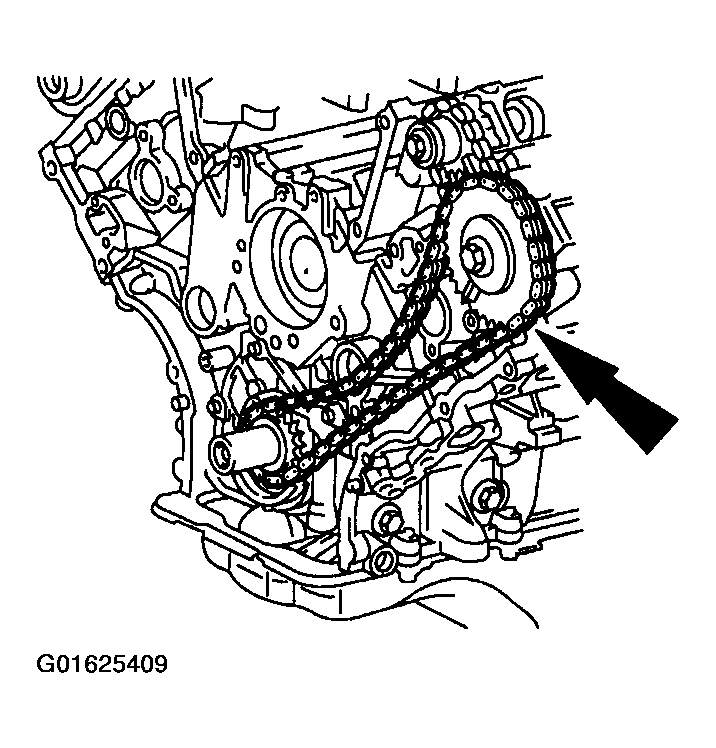

      Fig 5: Removing LH Timing Chain And Crankshaft Sprocket
      G01625409Courtesy of FORD MOTOR CO.
    7. CAUTION: The bolts are different lengths and must be returned to their original location.
    NOTE: RH shown; LH similar.

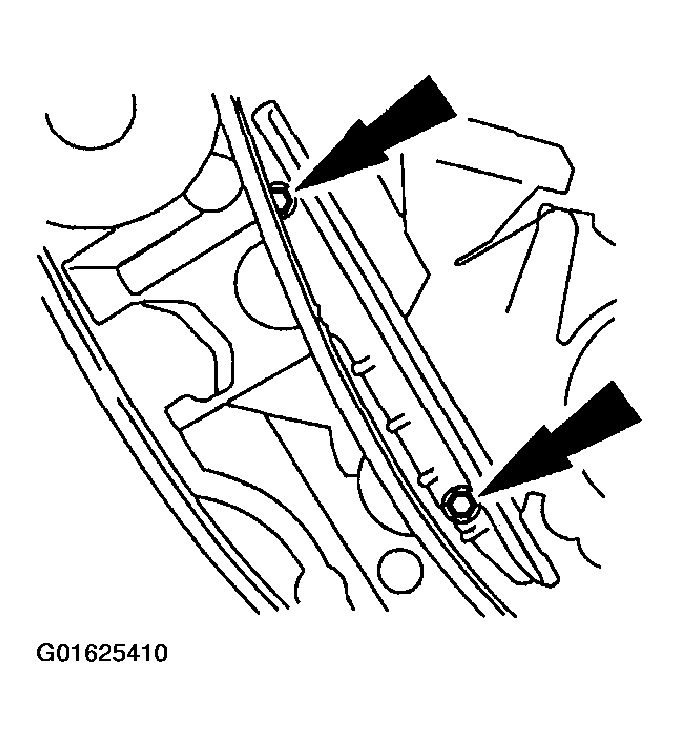

    Fig 6: Removing Timing Chain Guides
    G01625410Courtesy of FORD MOTOR CO.
  7. Remove the bolts and the timing chain guides.
