Engine Mount: Installation

WARNING: This page is about a different variant/trim than selected.
  1. LH Mount  Position the engine mount and install the bolt and studbolts.

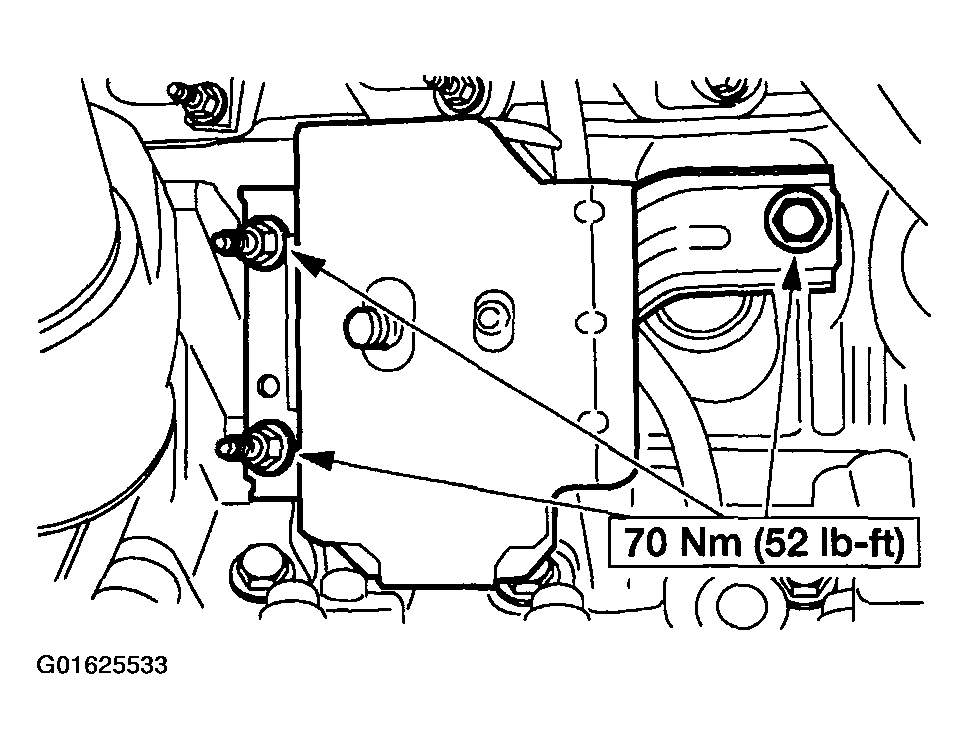

    Fig 1: Identifying Tightening Torque Of Engine Mount Bolt And Studbolts
    G01625533Courtesy of FORD MOTOR CO.
  2. Attach the ground cables and install the nuts.

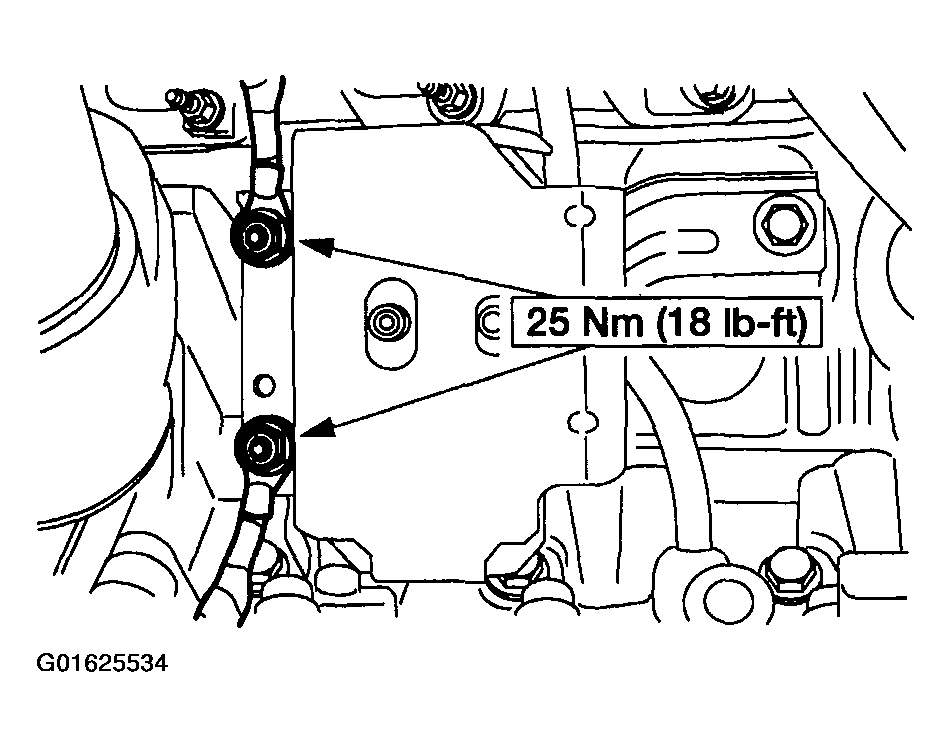

    Fig 2: Identifying Tightening Torque Of Ground Cables Nuts
    G01625534Courtesy of FORD MOTOR CO.
  3. RH Mount  Position the engine mount and install the bolts and studbolt.

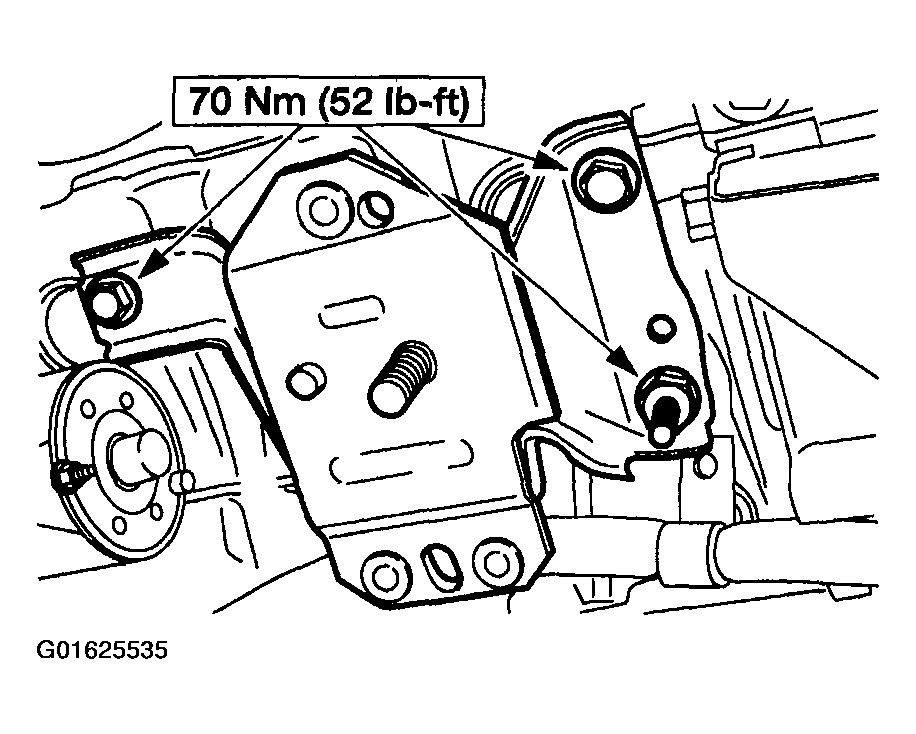

    Fig 3: Identifying Tightening Torque Of Engine Mount Nuts
    G01625535Courtesy of FORD MOTOR CO.
  4. Attach the wiring harness and install the nut.

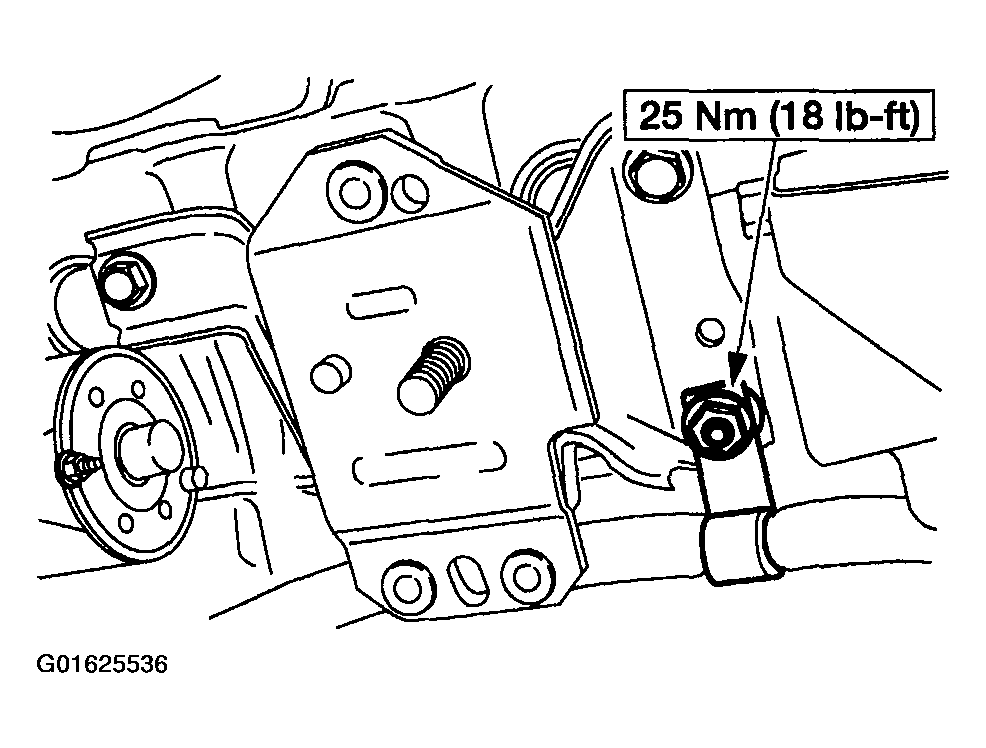

    Fig 4: Identifying Tightening Torque Of Wiring Harness Nut
    G01625536Courtesy of FORD MOTOR CO.
  5. Both Mounts  Using the jackstands, raise the subframe into position.
    6. NOTE: RH shown, LH similar.
    Fig 5: Aligning Subframe Using Special Tool
    G01625537Courtesy of FORD MOTOR CO.
  6. Using the special tool, align the subframe.
    7. NOTE: RH shown, LH similar.

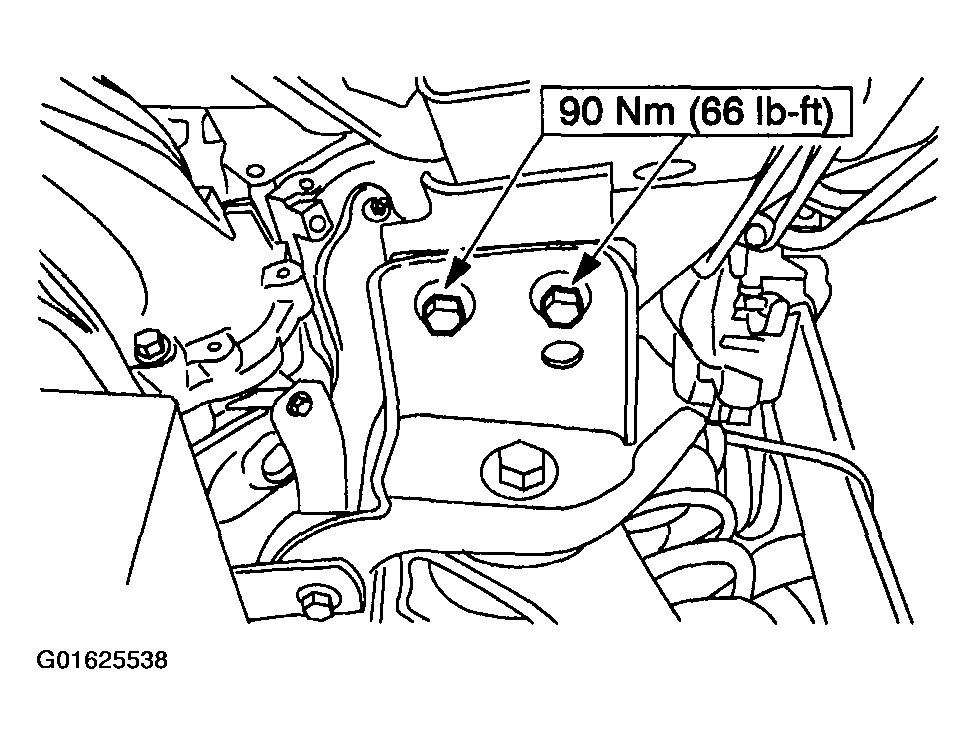

    Fig 6: Identifying Tightening Torque Of Bolts
    G01625538Courtesy of FORD MOTOR CO.
  7. Install the four bolts.
    8. NOTE: RH shown, LH similar.

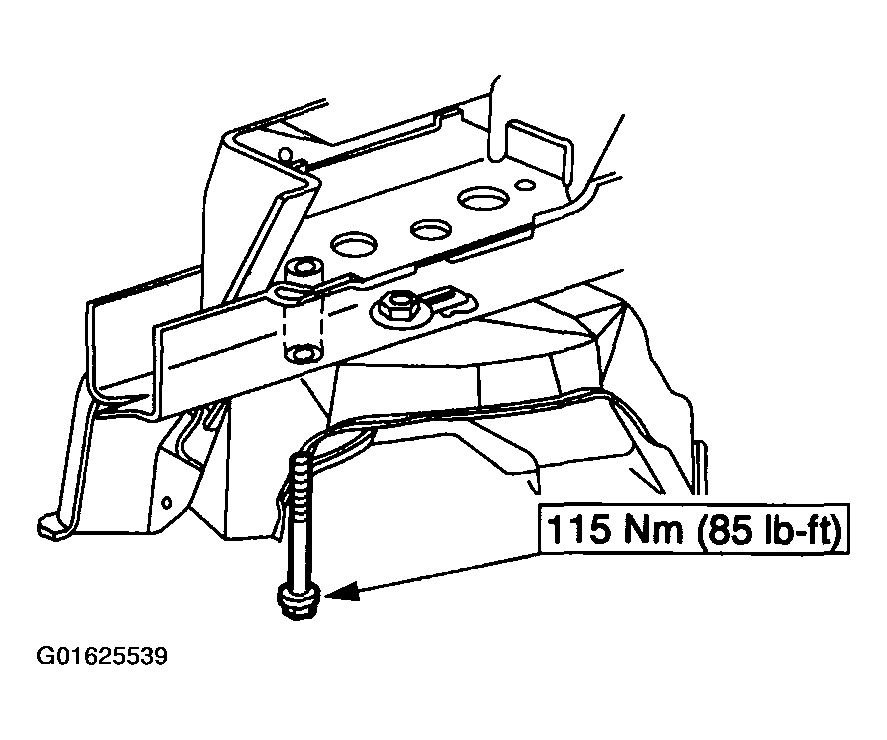

    Fig 7: Identifying Tightening Torque Of Bolts
    G01625539Courtesy of FORD MOTOR CO.
  8. Install the four bolts.
  9. Remove the jackstands.

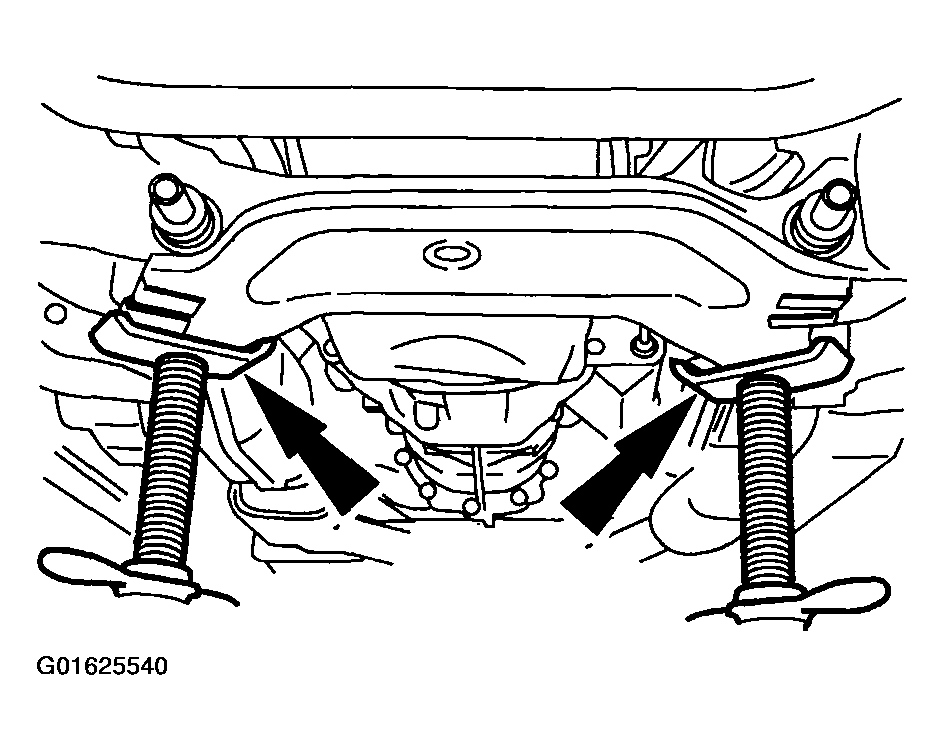

    Fig 8: Removing Jackstands
    G01625540Courtesy of FORD MOTOR CO.
    10. NOTE: RH shown, LH similar.

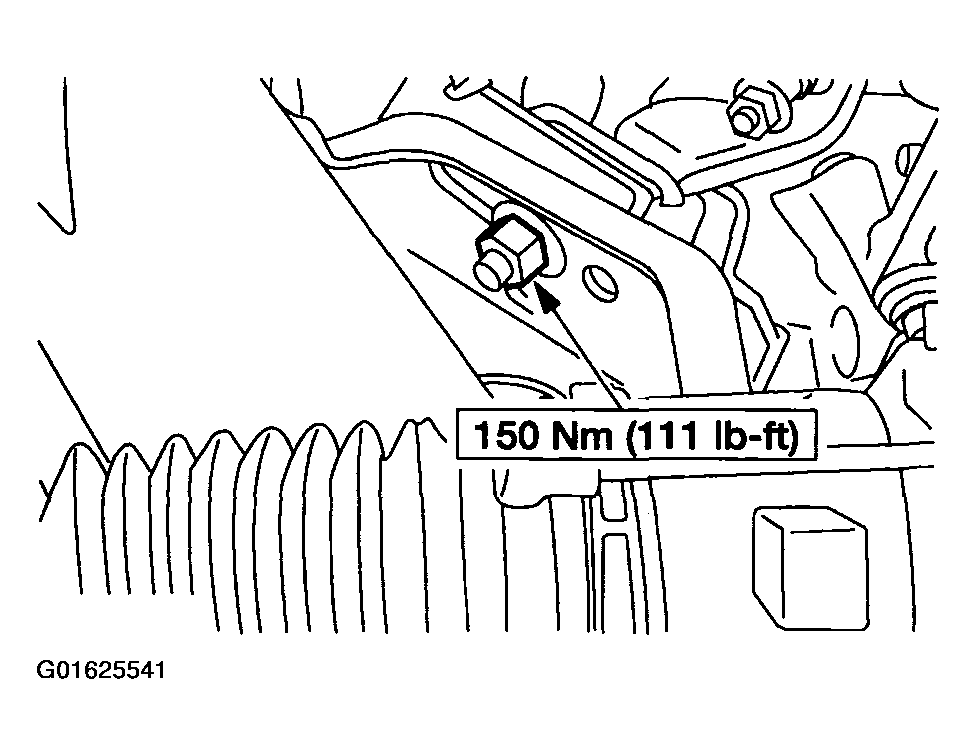

    Fig 9: Identifying Tightening Torque Of Engine Mount Nuts
    G01625541Courtesy of FORD MOTOR CO.
  10. Install the two engine mount nuts.
  11. Position the cross-brace support and install the 13 bolts.

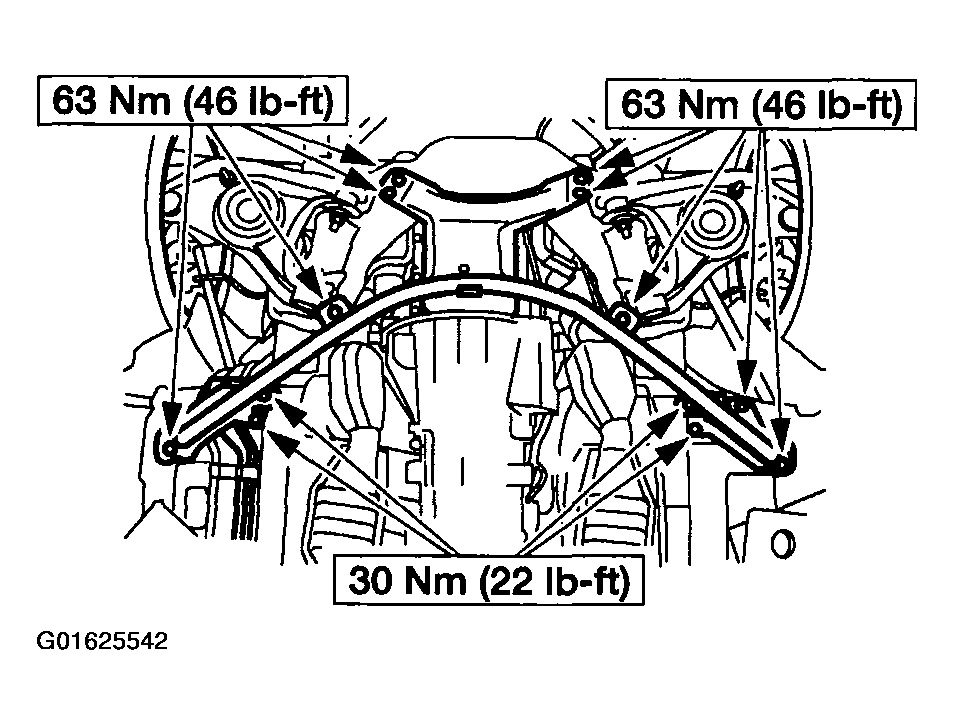

    Fig 10: Identifying Tightening Torque Of Cross-Brace Support Bolts
    G01625542Courtesy of FORD MOTOR CO.
    12. NOTE: RH shown, LH similar.

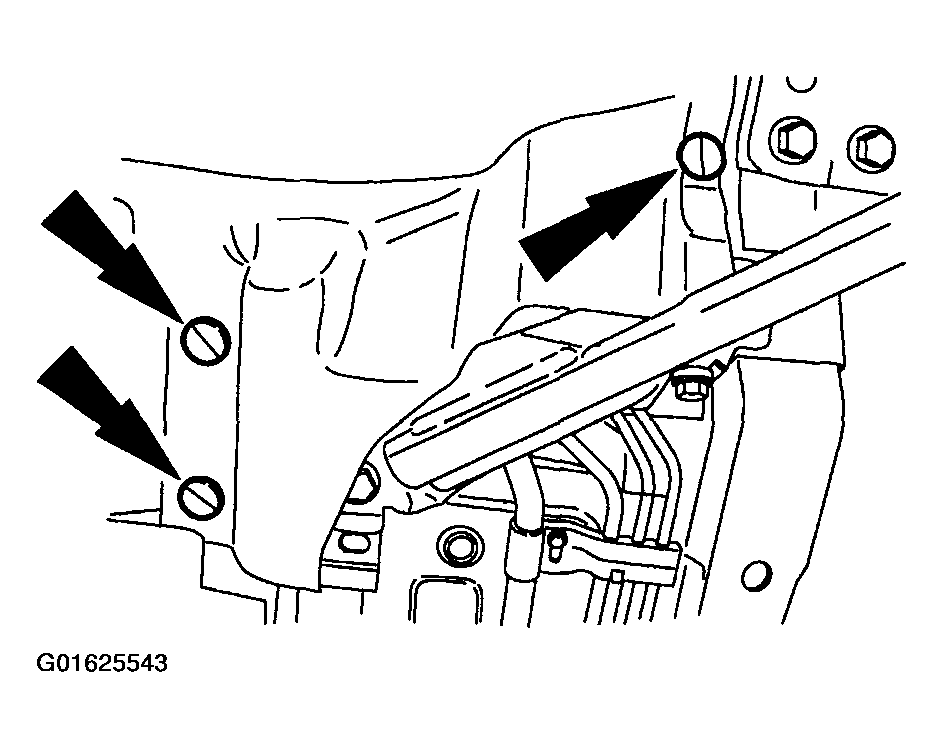

    Fig 11: Installing Splash-Shield Pushpins
    G01625543Courtesy of FORD MOTOR CO.
  12. Install the six splash-shield pushpins.
  13. Install the front springs. For additional information, refer to FRONT .
  14. Remove the special tool.

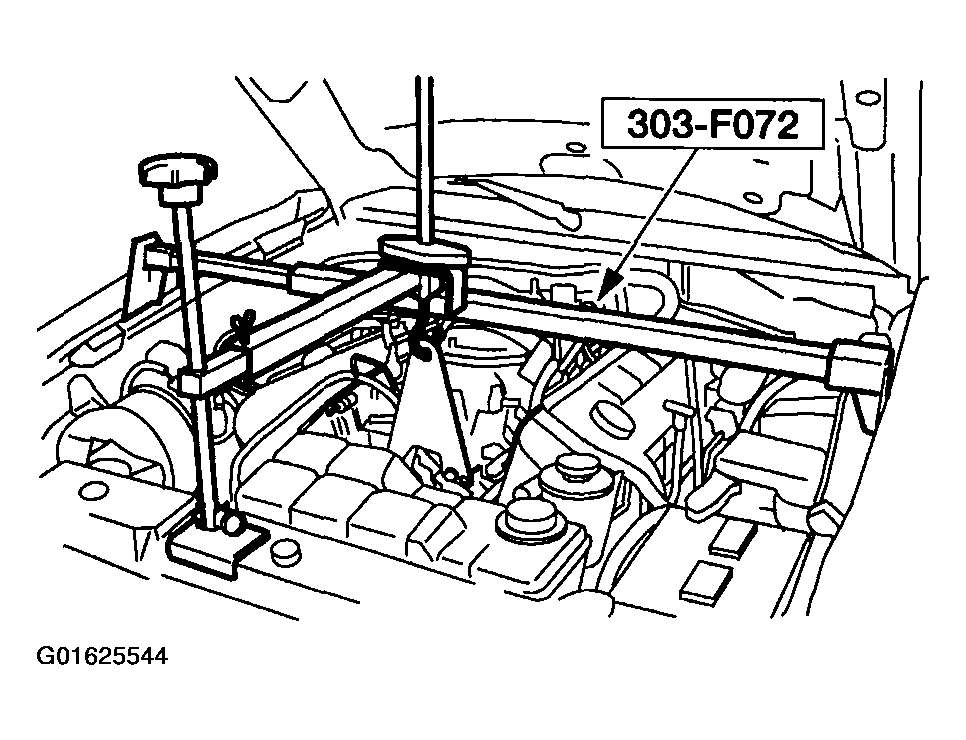

    Fig 12: Removing Special Tool
    G01625544Courtesy of FORD MOTOR CO.
  15. Remove the special tool.

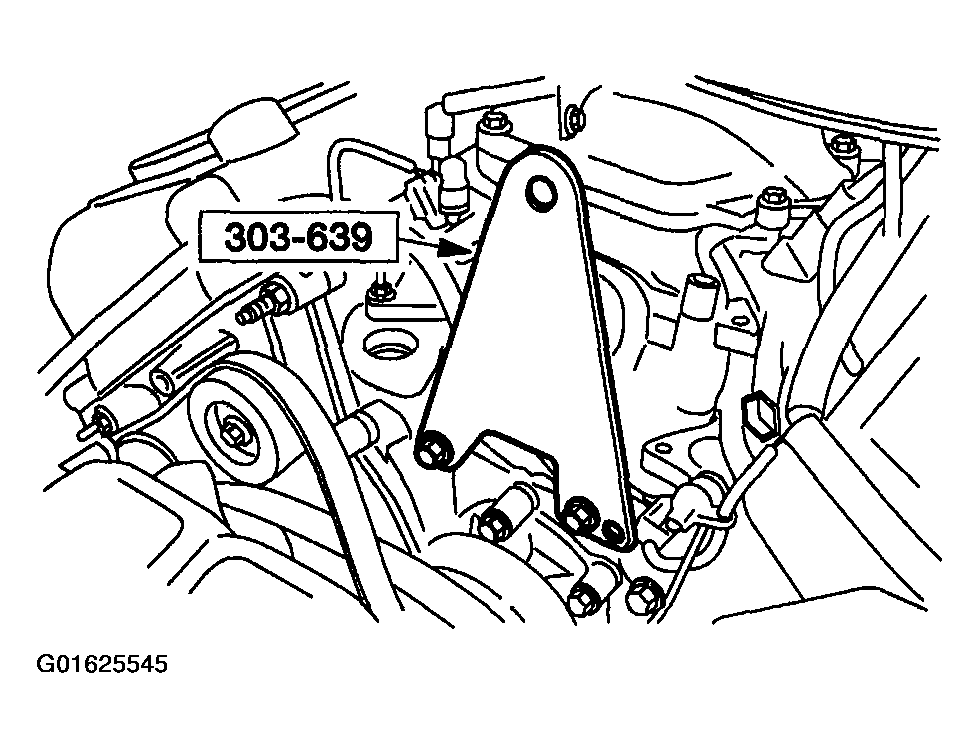

    Fig 13: Removing Special Tool
    G01625545Courtesy of FORD MOTOR CO.
  16. Position the generator and install the bolts.

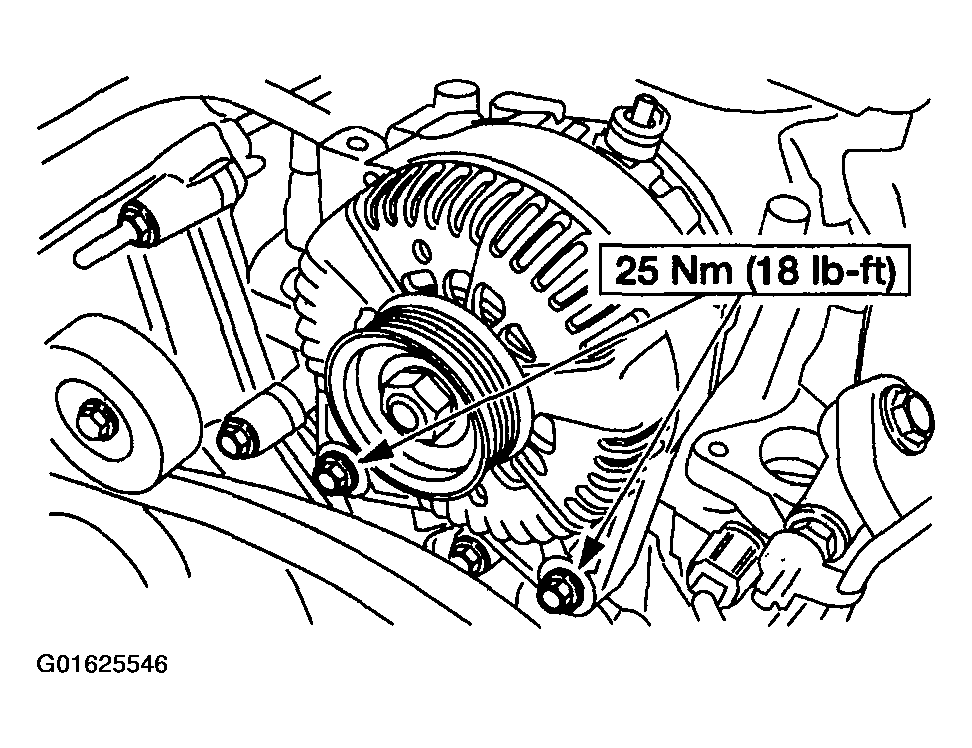

    Fig 14: Identifying Tightening Torque Of Generator Bolt
    G01625546Courtesy of FORD MOTOR CO.
  17. Connect the generator electrical connections.

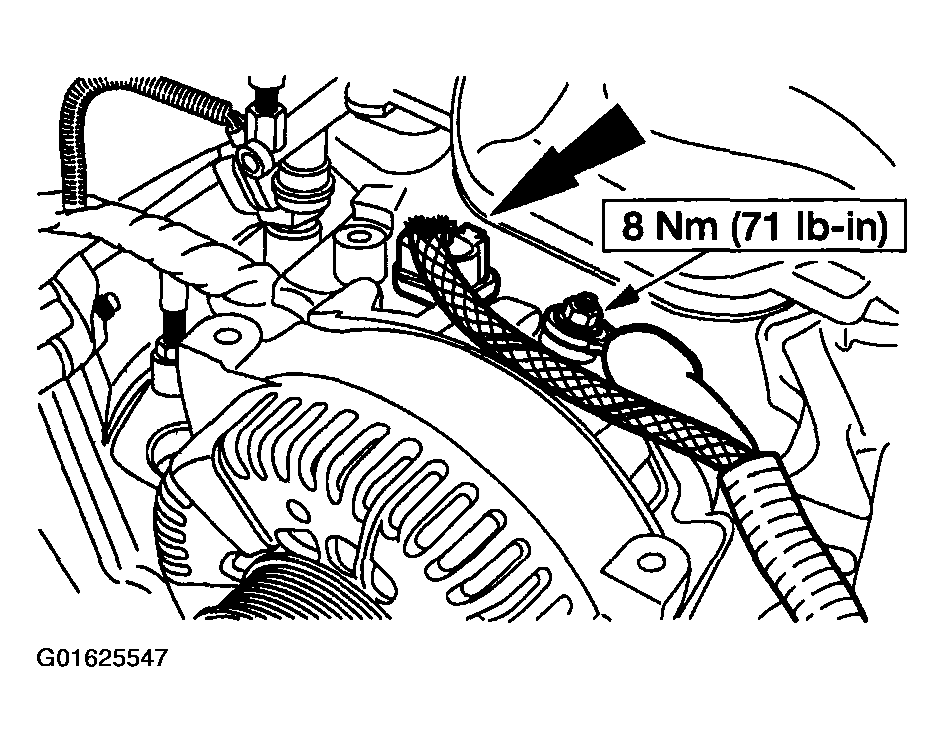

    Fig 15: Connecting Generator Electrical Connections
    G01625547Courtesy of FORD MOTOR CO.
  18. Rotate the drive belt tensioner clockwise and attach the drive belt to the generator pulley.
    • Make sure the drive belt is routed correctly and is aligned correctly installed on each pulley.

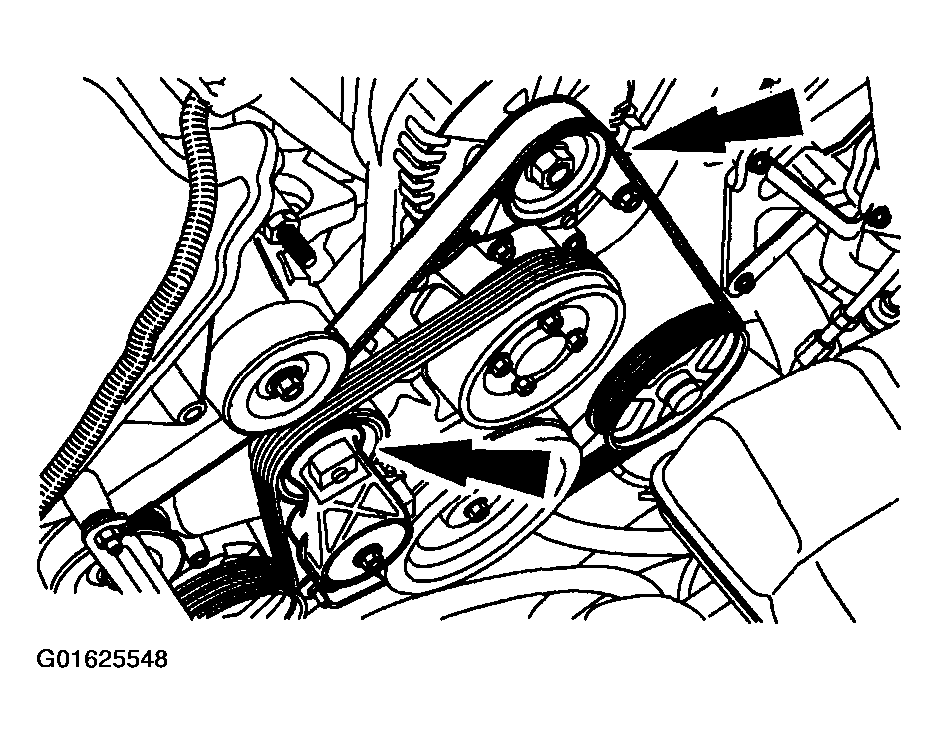

      Fig 16: Attaching Drive Belt To Generator Pulley
      G01625548Courtesy of FORD MOTOR CO.
  19. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  20. 20. Install the coolant bypass tube. For additional information, refer to ENGINE COOLING .
