In-Vehicle Repair: Flywheel: Installation

WARNING: This page is about a different variant/trim than selected.
  1. To install, reverse the removal procedure.
    • Tighten the bolts in the sequence shown.

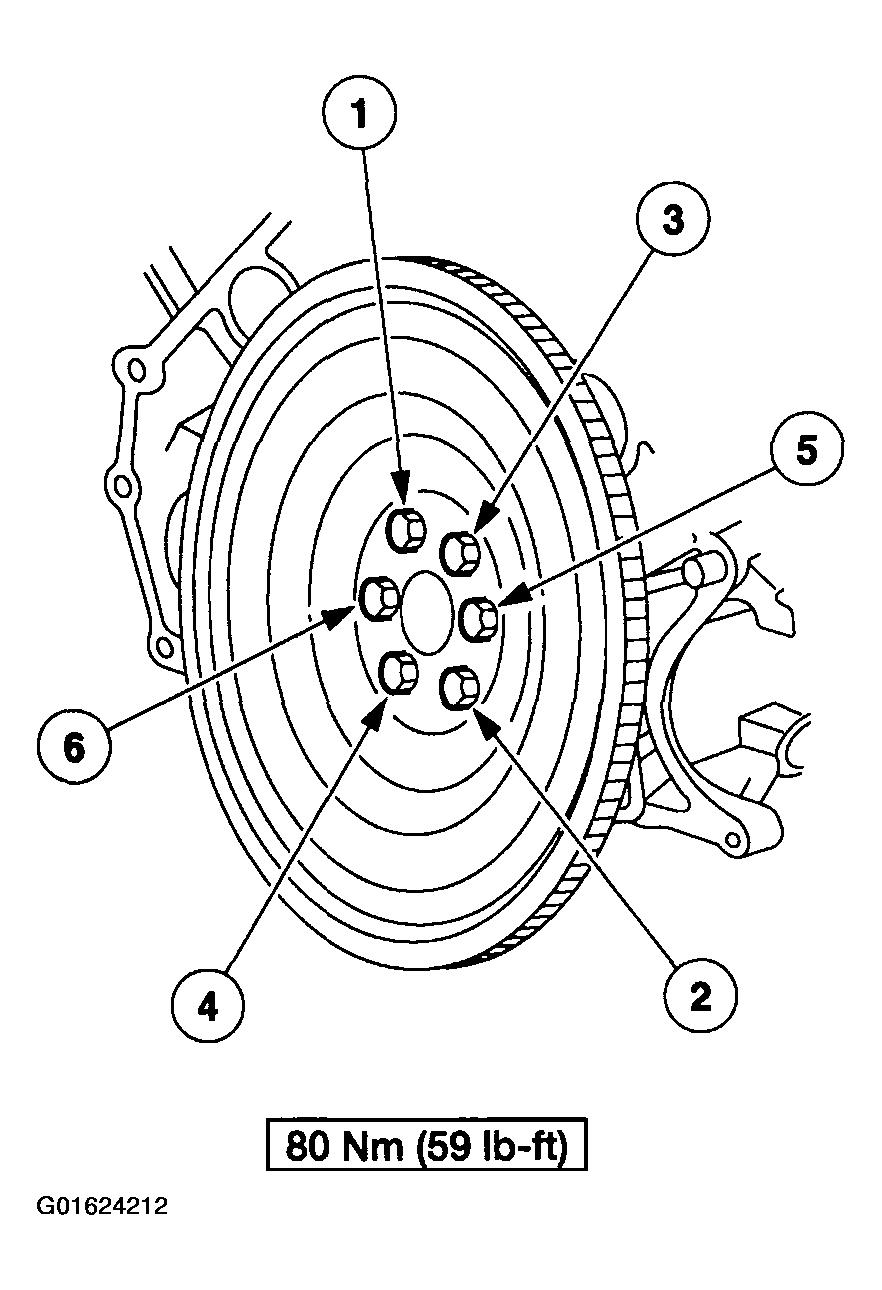

      Fig 1: Identifying Tightening Sequence For Installing Flywheel
      G01624212Courtesy of FORD MOTOR CO.
