Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission. For additional information, refer to TRANSMISSION .
  2. Remove the six bolts retaining the flexplate to crankshaft, and remove the flexplate.

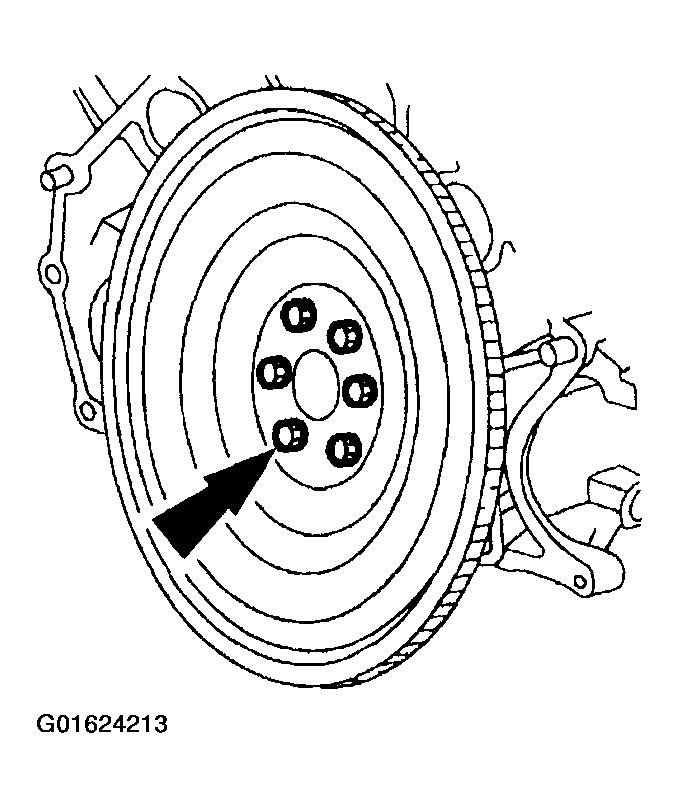

    Fig 1: Removing Flexplate
    G01624213Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
    • Tighten the bolts in the sequence shown.

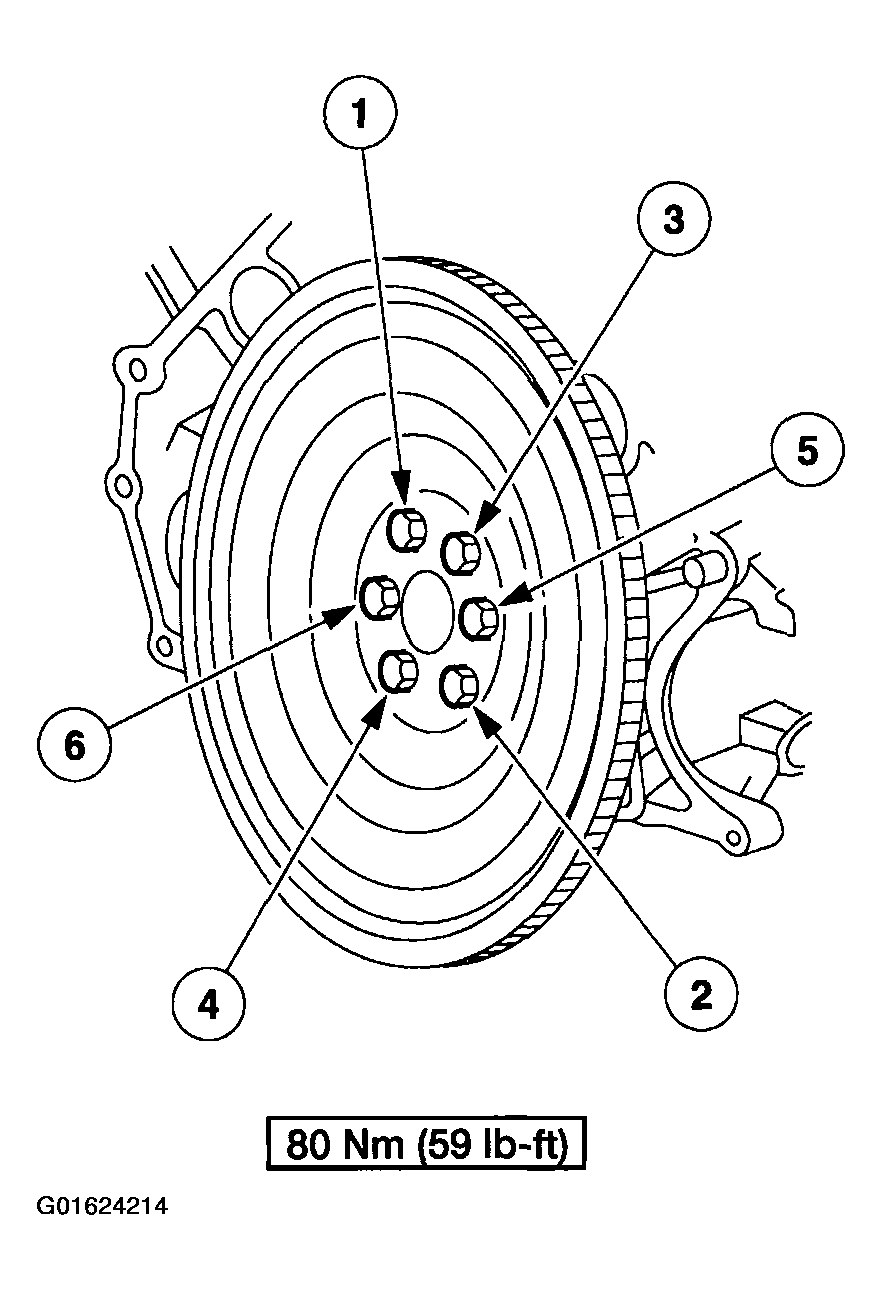

      Fig 2: Identifying Tightening Sequence For Installing Flexplate
      G01624214Courtesy of FORD MOTOR CO.
