Engine Mount RH: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Install the special tool.

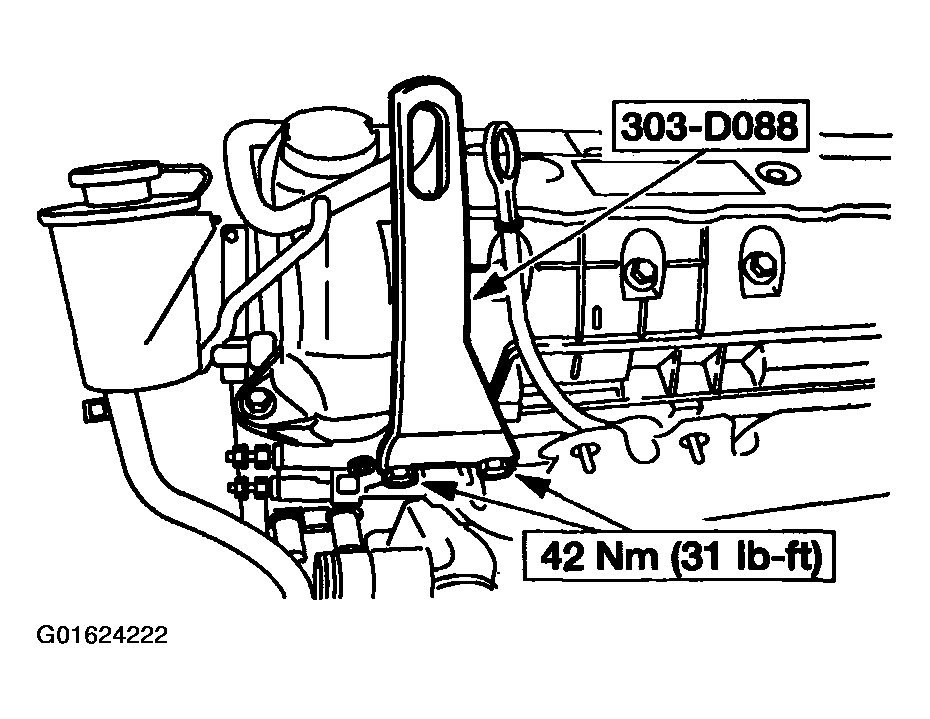

    Fig 1: Installing Special Tool
    G01624222Courtesy of FORD MOTOR CO.
  2. Install the special tools.

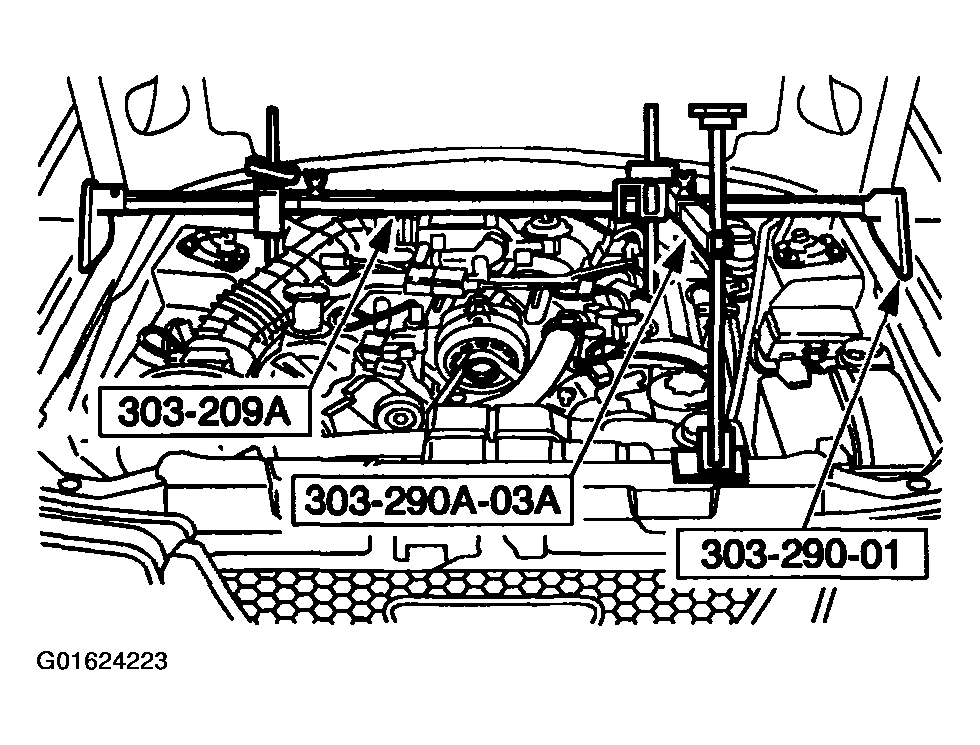

    Fig 2: Installing Special Tool
    G01624223Courtesy of FORD MOTOR CO.
  3. Remove the starter. For additional information, refer to STARTERS .
  4. Remove the two engine mount nuts.

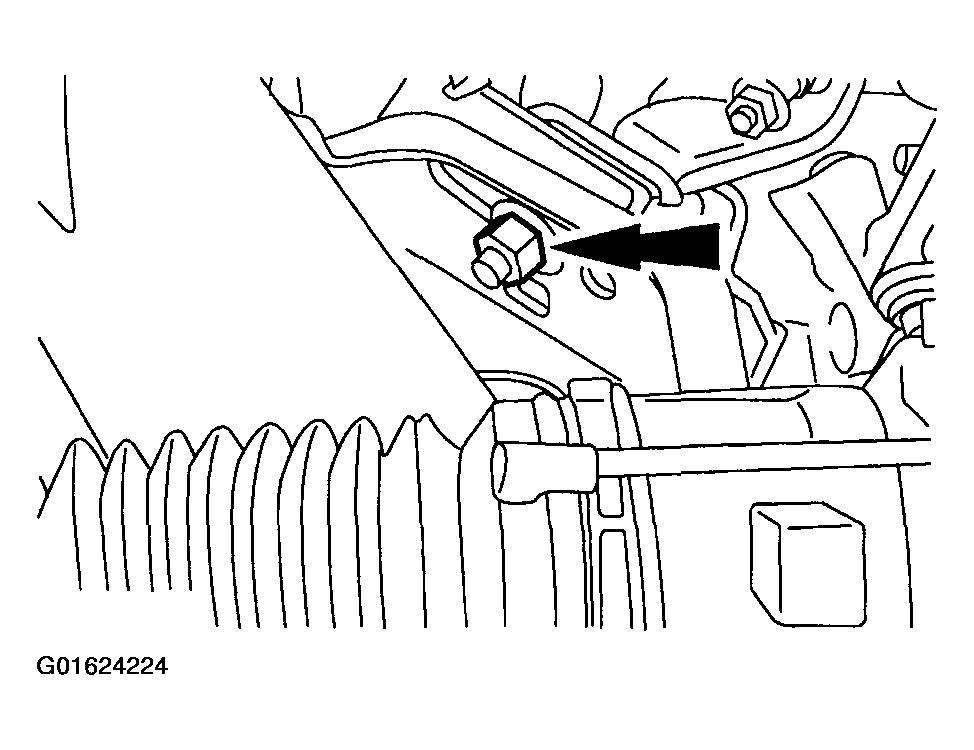

    Fig 3: Removing Engine Mount Nuts
    G01624224Courtesy of FORD MOTOR CO.
  5. Lower the vehicle.
  6. Using the special tools, raise the engine.
    Fig 4: Raising Engine Using SST
    G01624225Courtesy of FORD MOTOR CO.
  7. Raise and support the vehicle.
  8. Remove the engine mount.
    Fig 5: Removing Engine Mount
    G01624226Courtesy of FORD MOTOR CO.
