Disassembly And Assembly Of Subassemblies: Piston: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Press the piston pin out of the connecting rod and piston assembly.

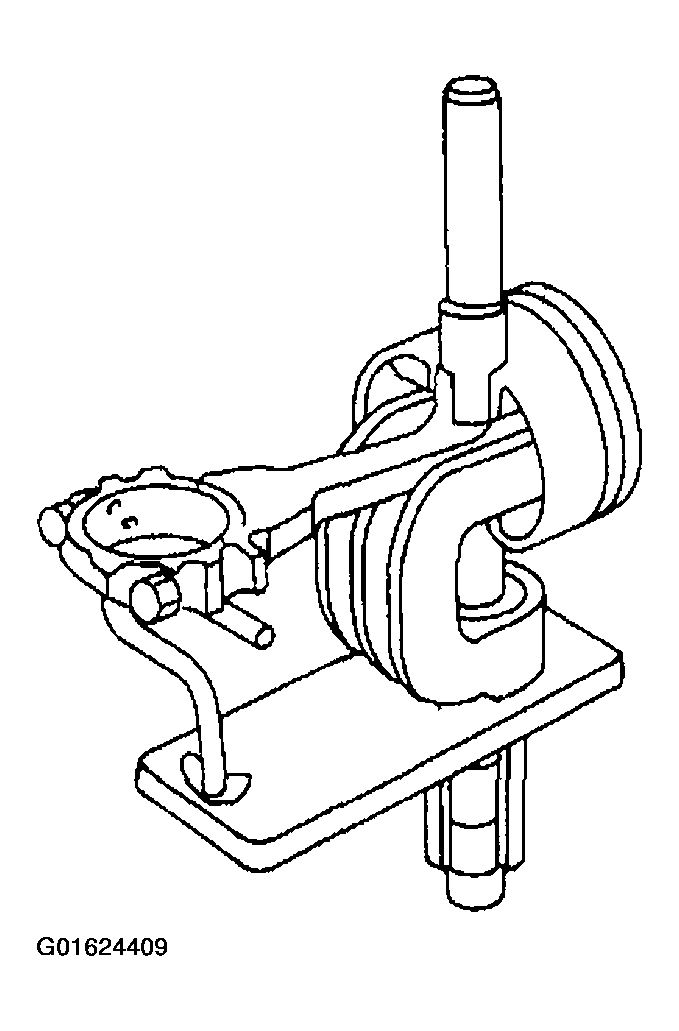

    Fig 1: Removing Piston Pin From Connecting Rod And Piston Assembly
    G01624409Courtesy of FORD MOTOR CO.
  2. Remove the connecting rod from the piston.

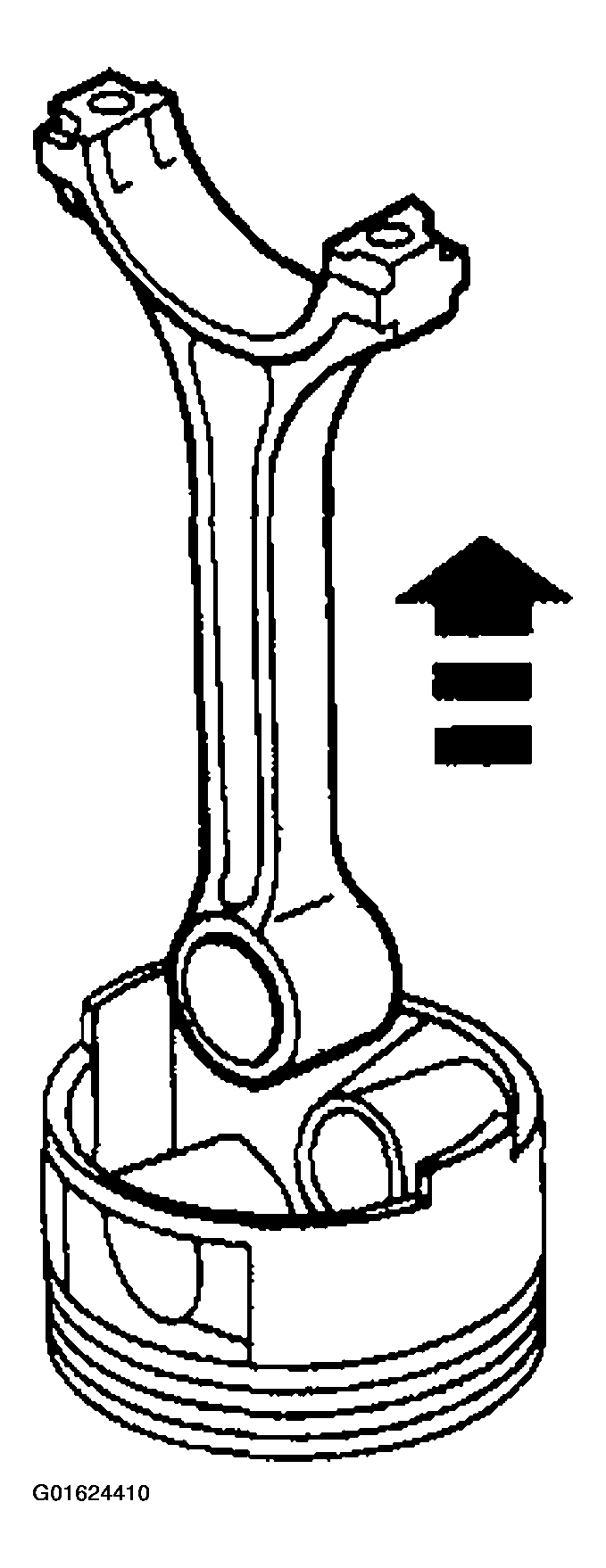

    Fig 2: Removing Connecting Rod From Piston
    G01624410Courtesy of FORD MOTOR CO.
  3. Clean and inspect the piston and connecting rod. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
