Cylinder Head: Disassembly

WARNING: This page is about a different variant/trim than selected.

Install the special tool.

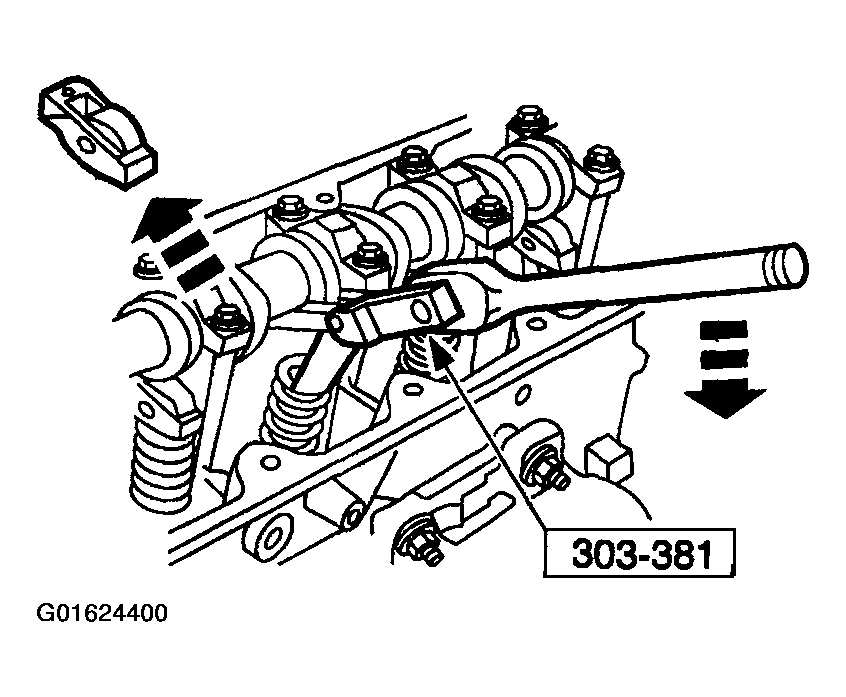

Fig 1: Installing Special Tool
Courtesy of FORD MOTOR CO.
Using the special tool, remove the roller followers.

Fig 2: Removing Roller Followers
Courtesy of FORD MOTOR CO.
Using the special tool, compress the valve spring.

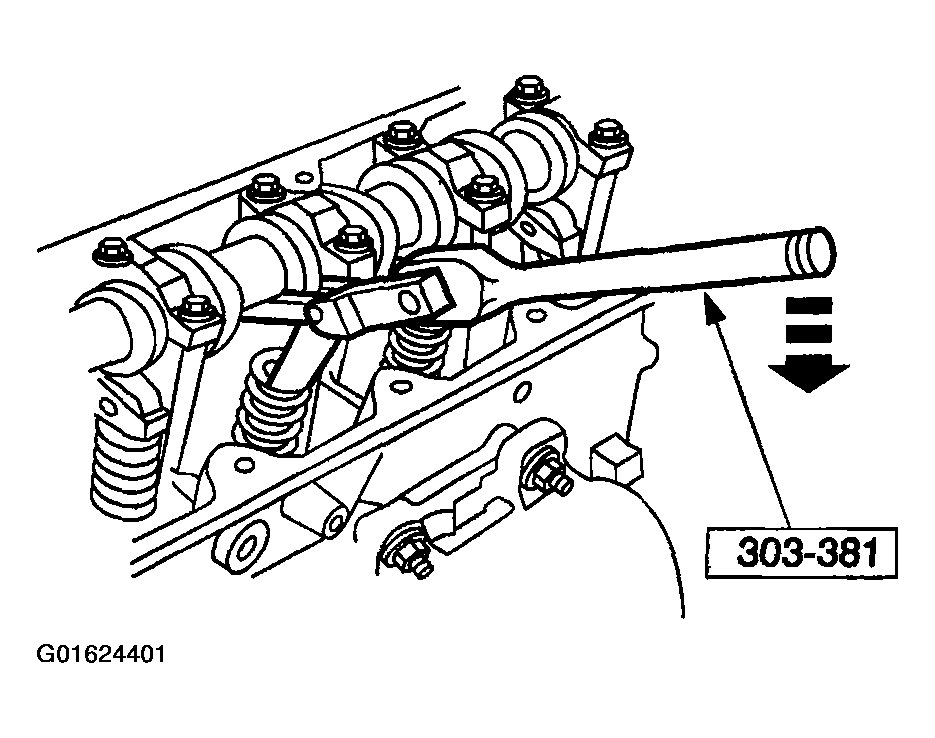

Fig 3: Compressing Valve Spring
Courtesy of FORD MOTOR CO.
Remove the valves.
1. Remove the valve spring retainer keys.
2. Remove the valve spring retainers.
3. Remove the valve spring.
4. Remove the valves.

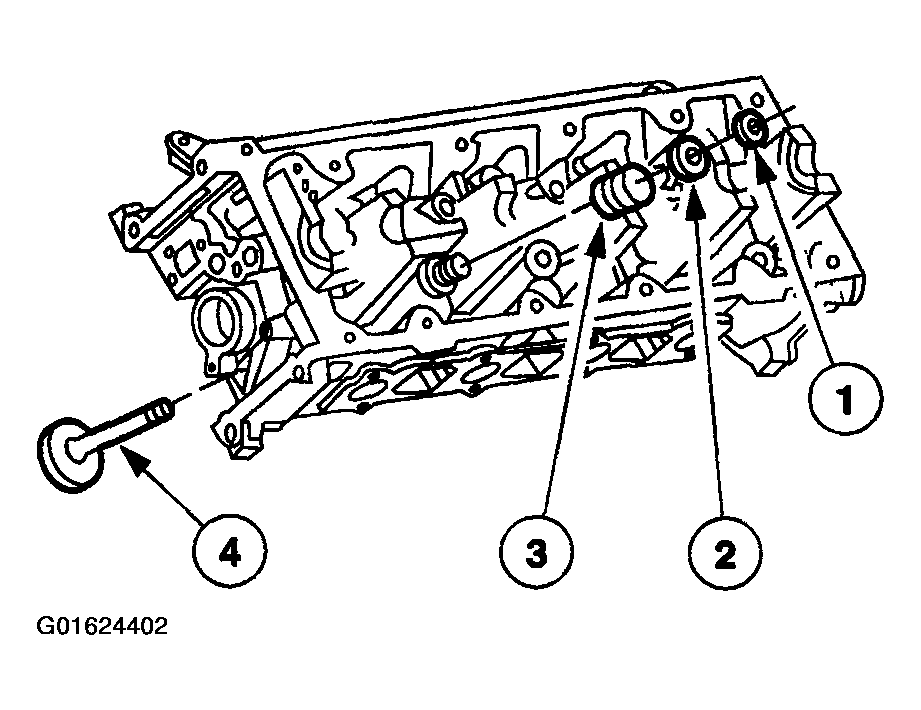

  Fig 4: Removing Valves
  Courtesy of FORD MOTOR CO.
Remove the hydraulic lash adjusters.

Fig 5: Removing Hydraulic Lash Adjusters
Courtesy of FORD MOTOR CO.

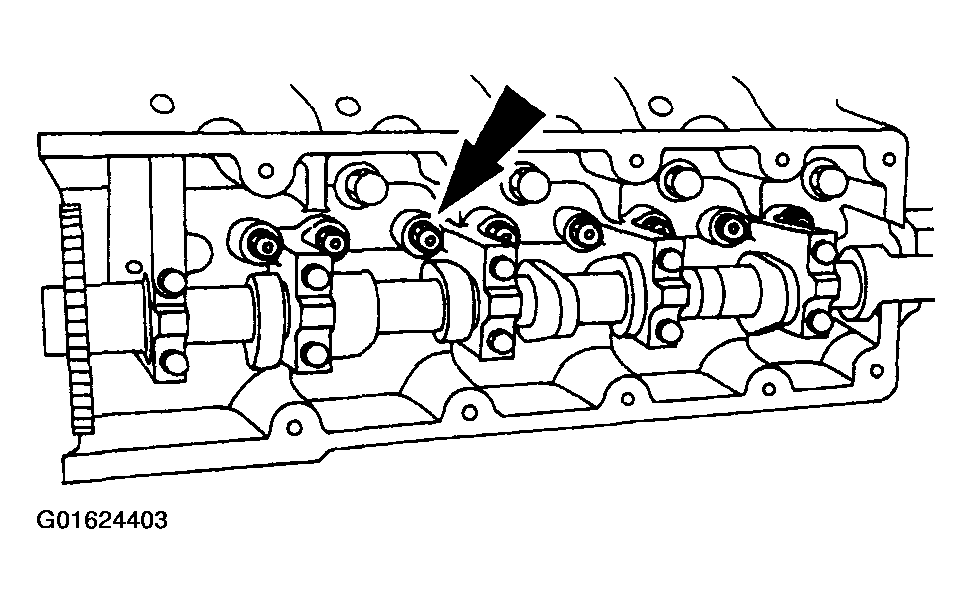

Remove the bolts and the camshaft bearing caps.

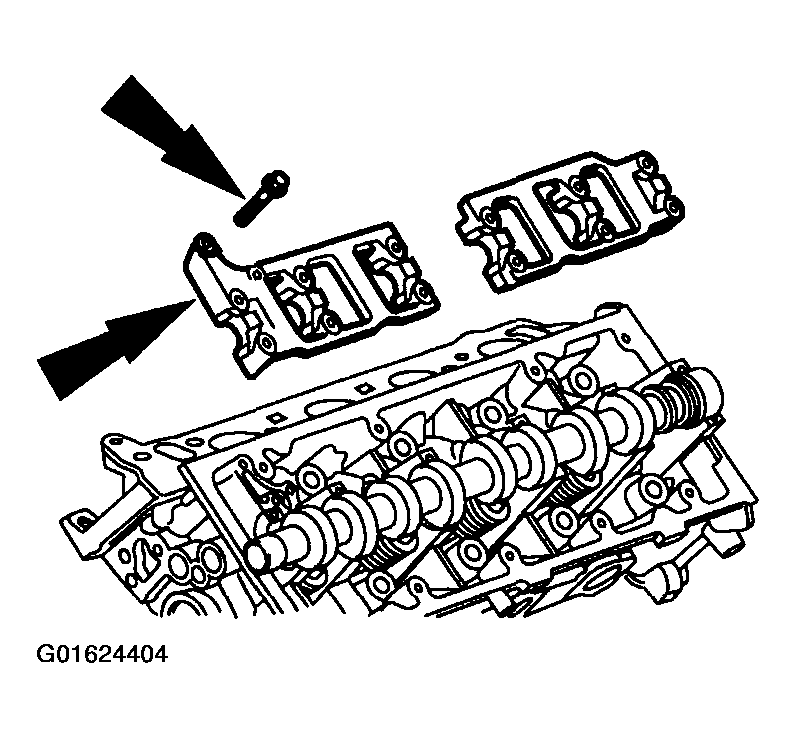

Fig 6: Removing Bolts And Camshaft Bearing Caps
Courtesy of FORD MOTOR CO.
Remove the camshaft (6250).

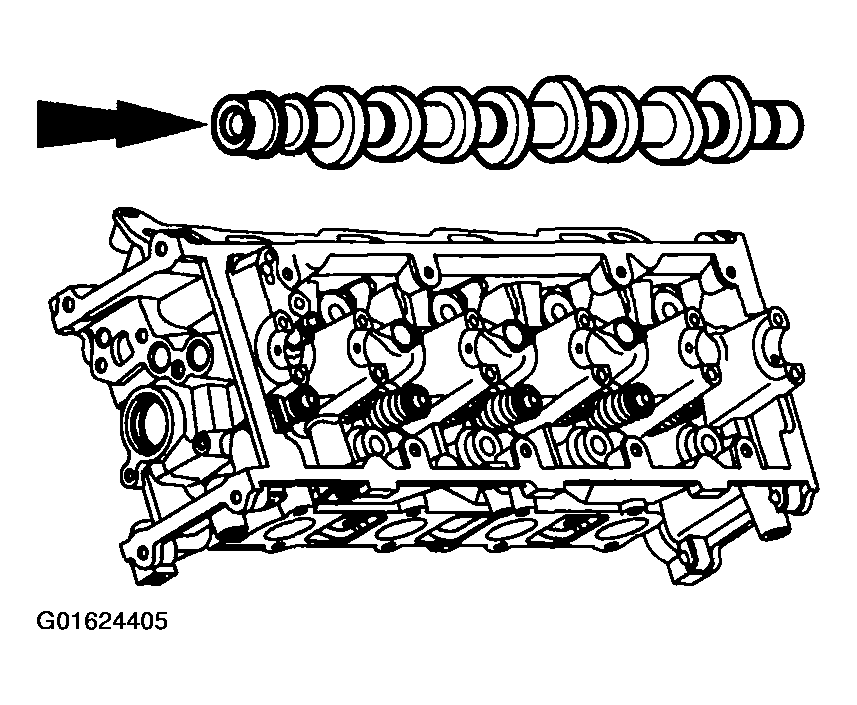

Fig 7: Removing Camshaft
Courtesy of FORD MOTOR CO.
Remove the valve stem seals.

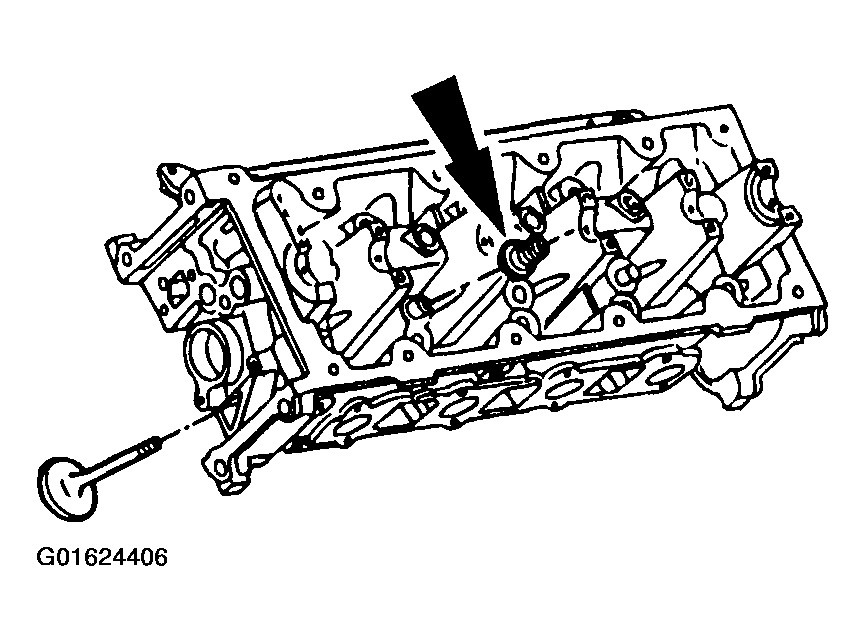

Fig 8: Removing Valve Stem Seals
Courtesy of FORD MOTOR CO.
