Cylinder Head: Assembly

WARNING: This page is about a different variant/trim than selected.
    NOTE: Lubricate all moving parts with clean engine oil prior to assembly.

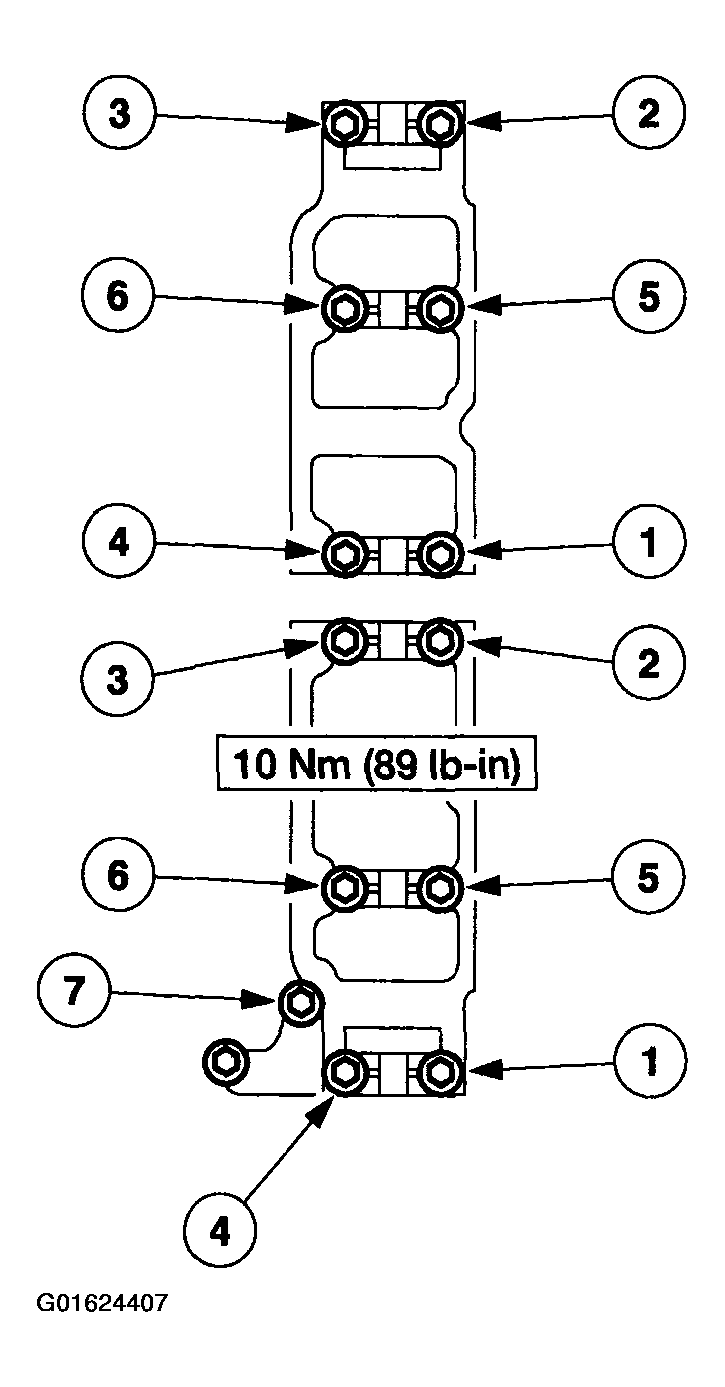

    Fig 1: Identifying Tightening Torque And Sequence For Installing Cylinder Head
    G01624407Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
