Description And Operation: Engine

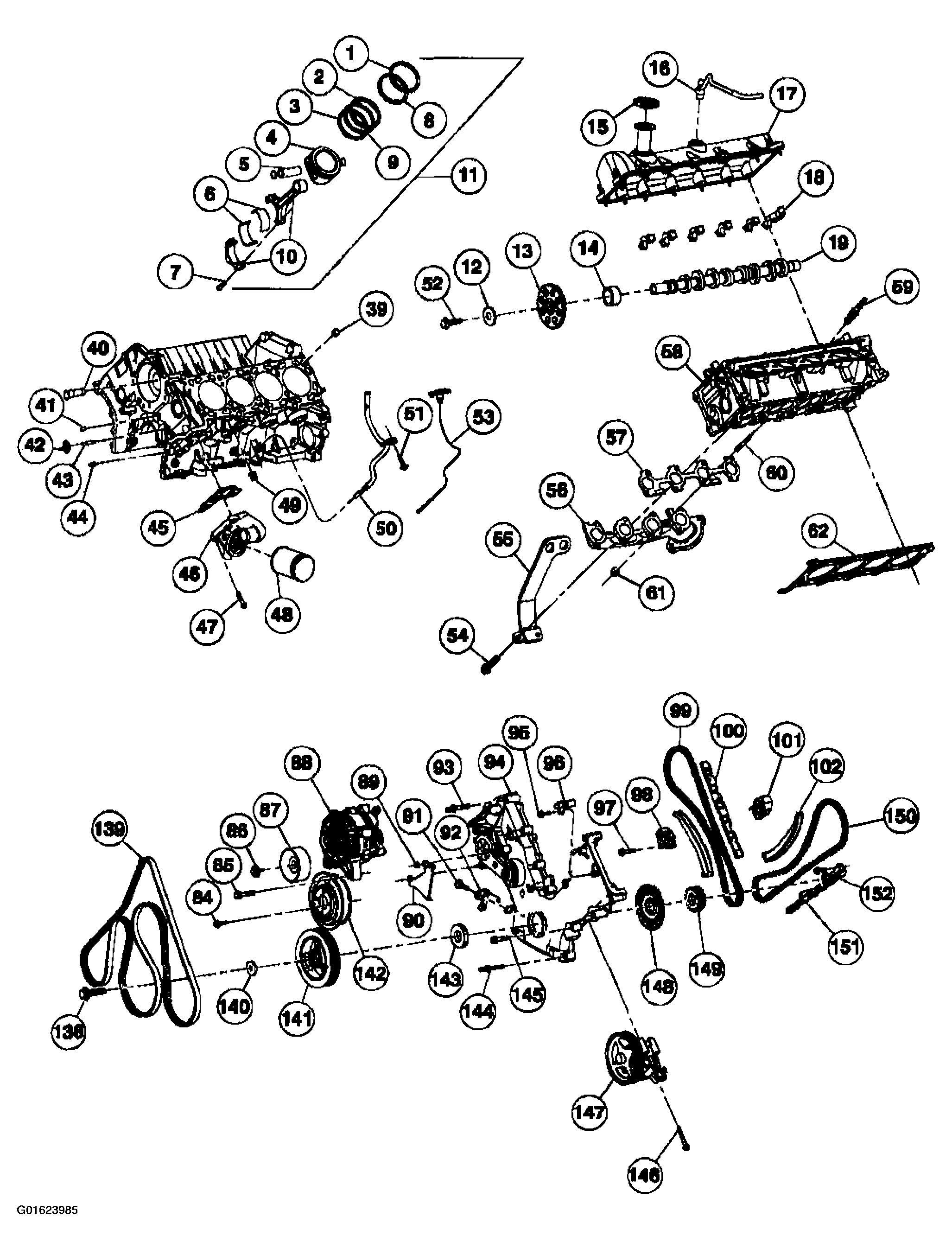

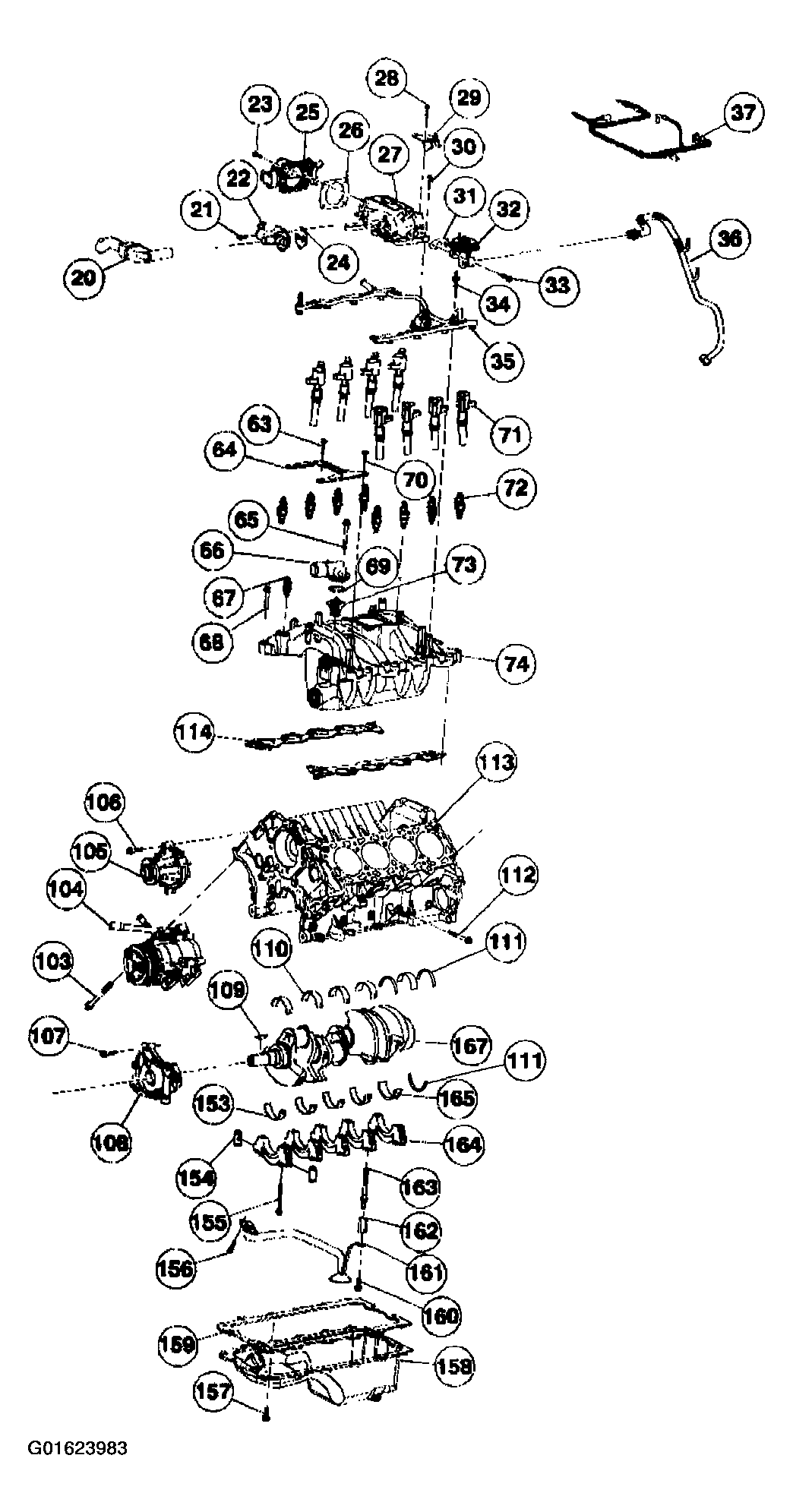

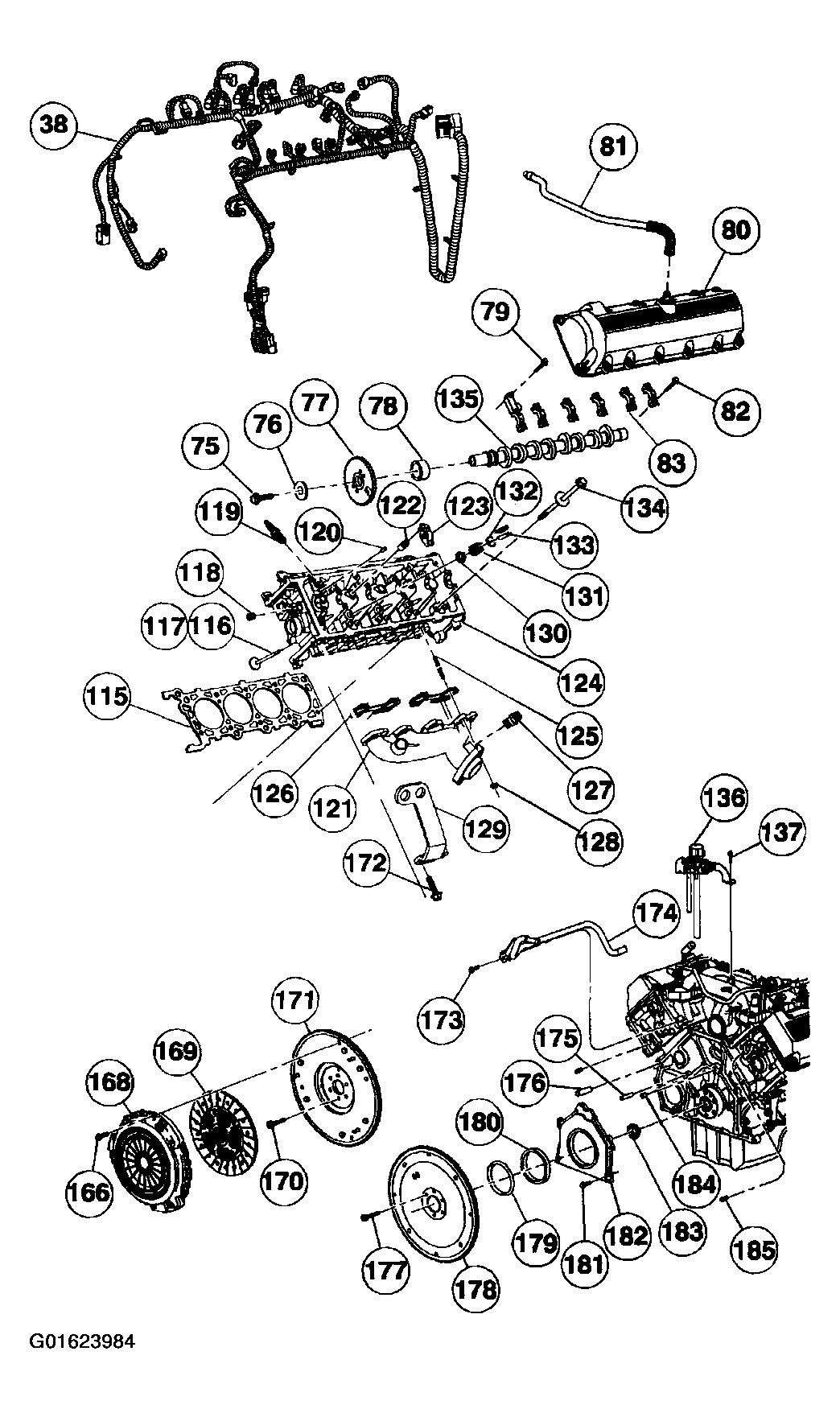

Fig 1: Identifying Components Of Engine (1 Of 3)

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Components Of Engine (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Components Of Engine (3 Of 3)

Courtesy of FORD MOTOR CO.

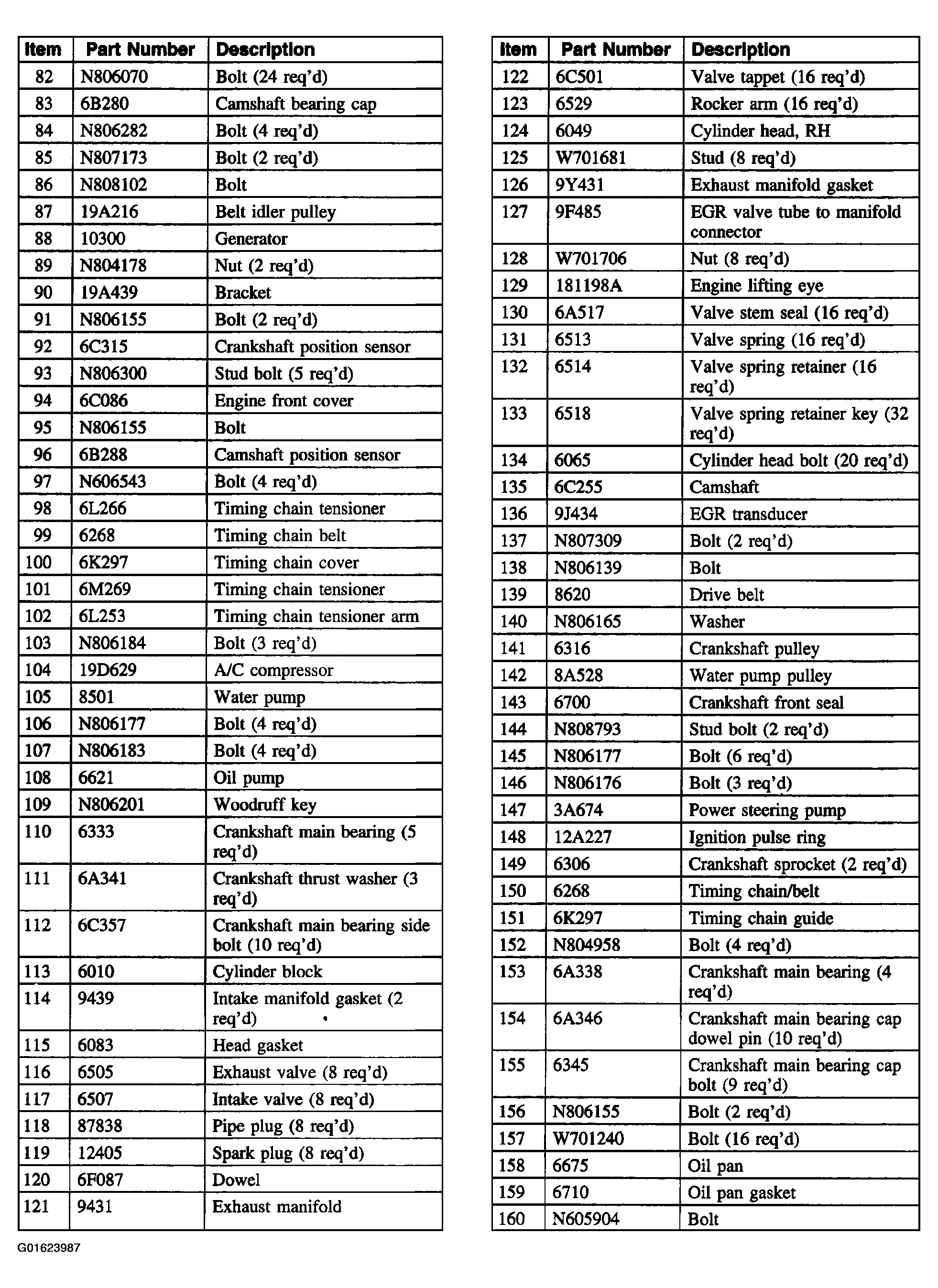

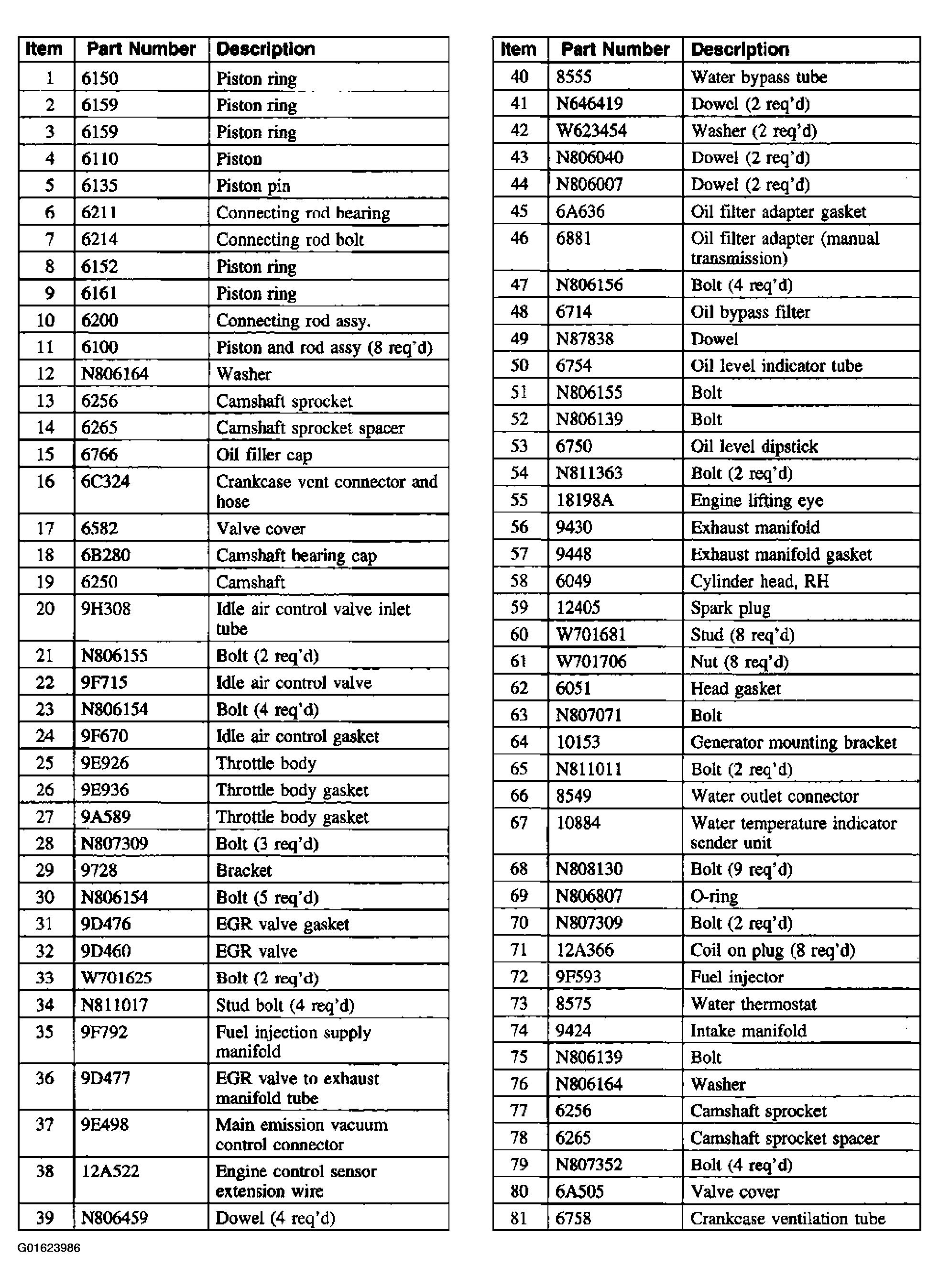

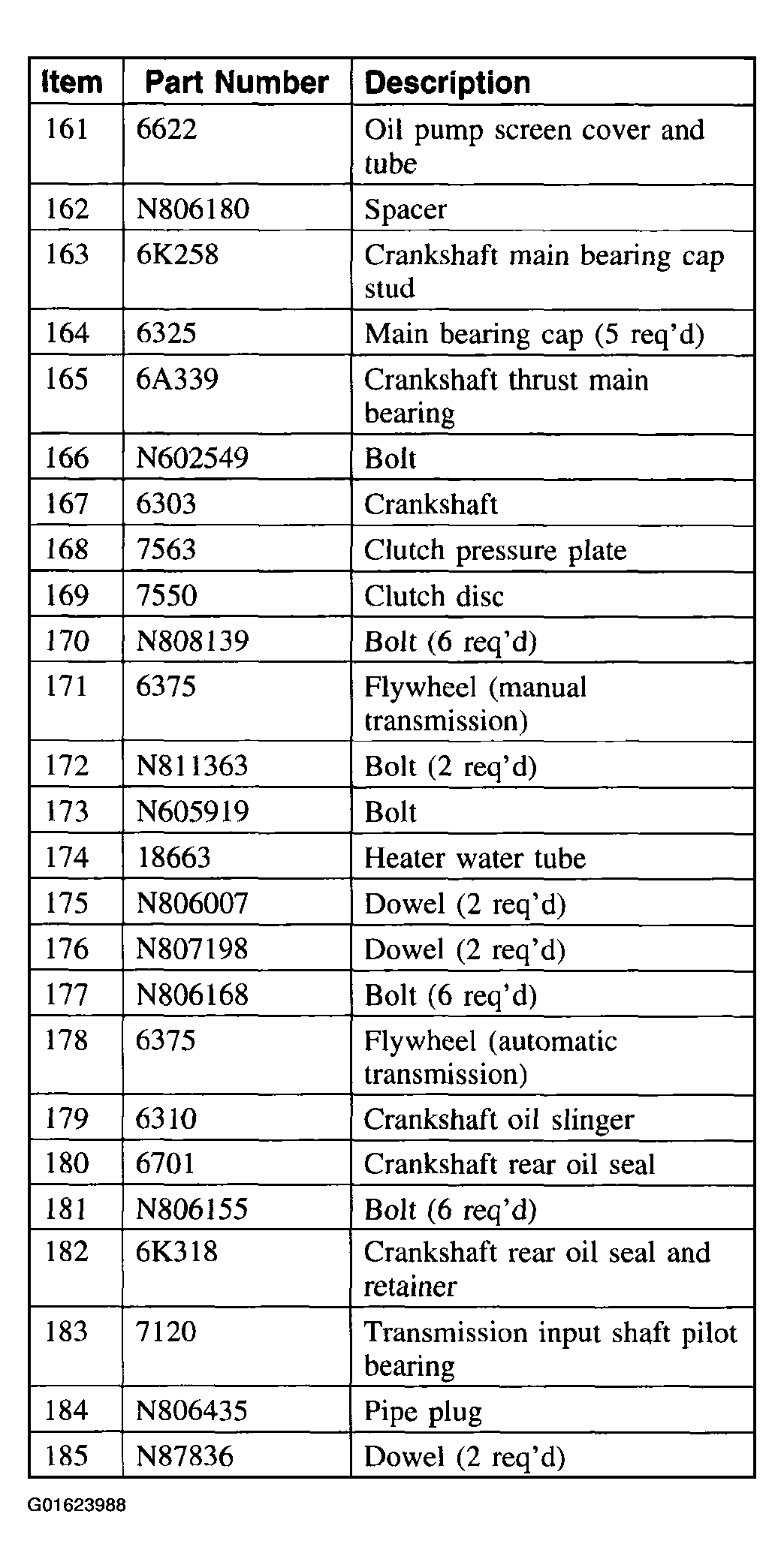

Fig 4: Engine Components Description (1 Of 3)

Courtesy of FORD MOTOR CO.

Fig 5: Engine Components Description (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 6: Engine Components Description (3 Of 3)

Courtesy of FORD MOTOR CO.

A modular engine is built around four modules:

• the intake module
• the cylinder head module (RH)
• the cylinder head module (LH)
• the lower engine module

While not all repairs can take advantage of the modular concept, most out-of-vehicle repairs benefit due to the reduction of necessary time and labor.

The basic engine components consist of the following:

• single overhead camshafts
• two valves per cylinder
• sequential multiport fuel injection (SFI)
• aluminum cylinder heads (6049)
• cast iron, 90-degree V-shaped cylinder block
• individual ignition coils for each spark plug
• composite-material intake manifold
• large-bore throttle body
