Special Tool(s)

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Special Tools (1 Of 4)
G01624414Courtesy of FORD MOTOR CO.

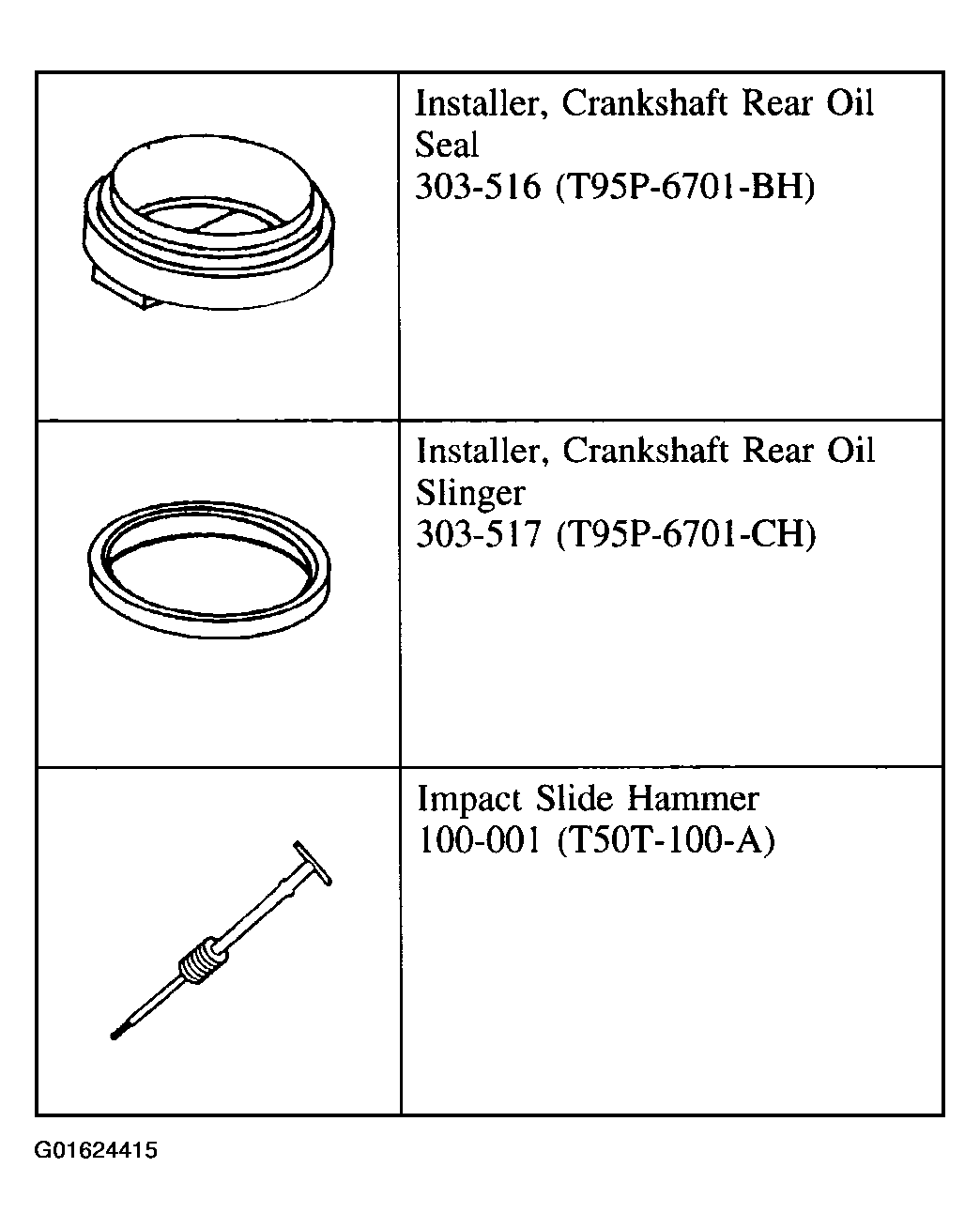

Fig 2: Identifying Special Tools (2 Of 4)
G01624415Courtesy of FORD MOTOR CO.

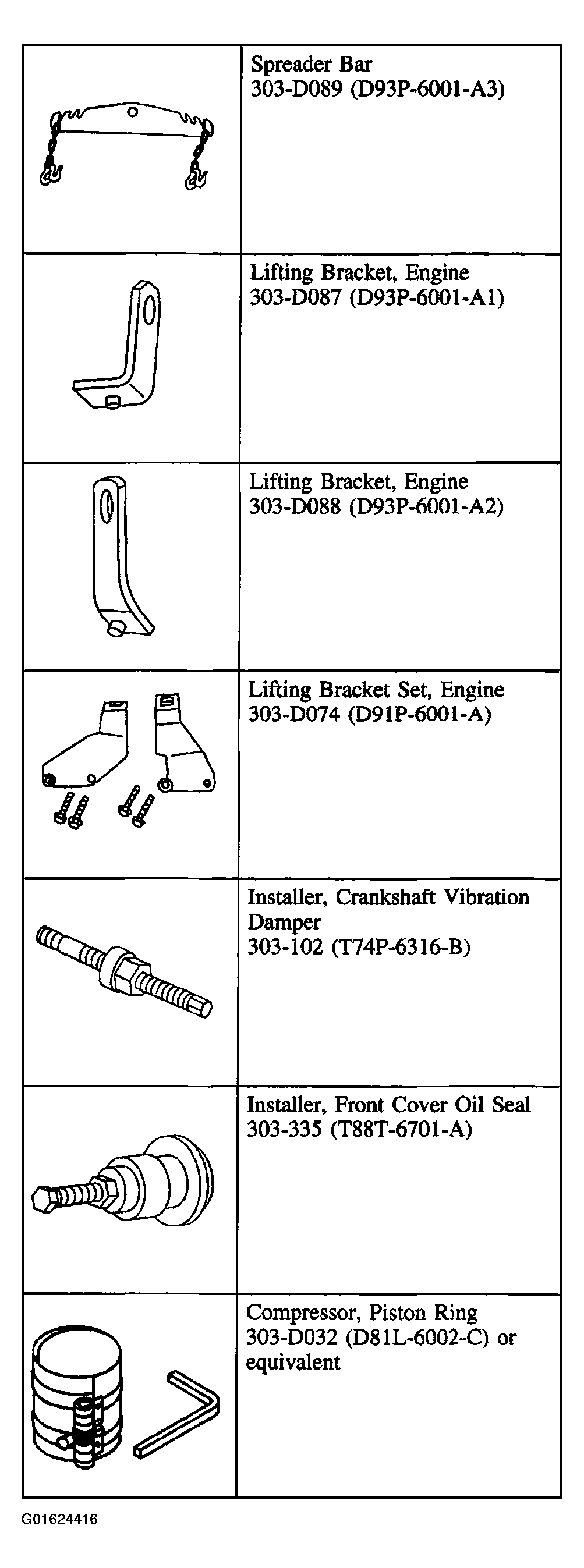

Fig 3: Identifying Special Tools (3 Of 4)
G01624416Courtesy of FORD MOTOR CO.

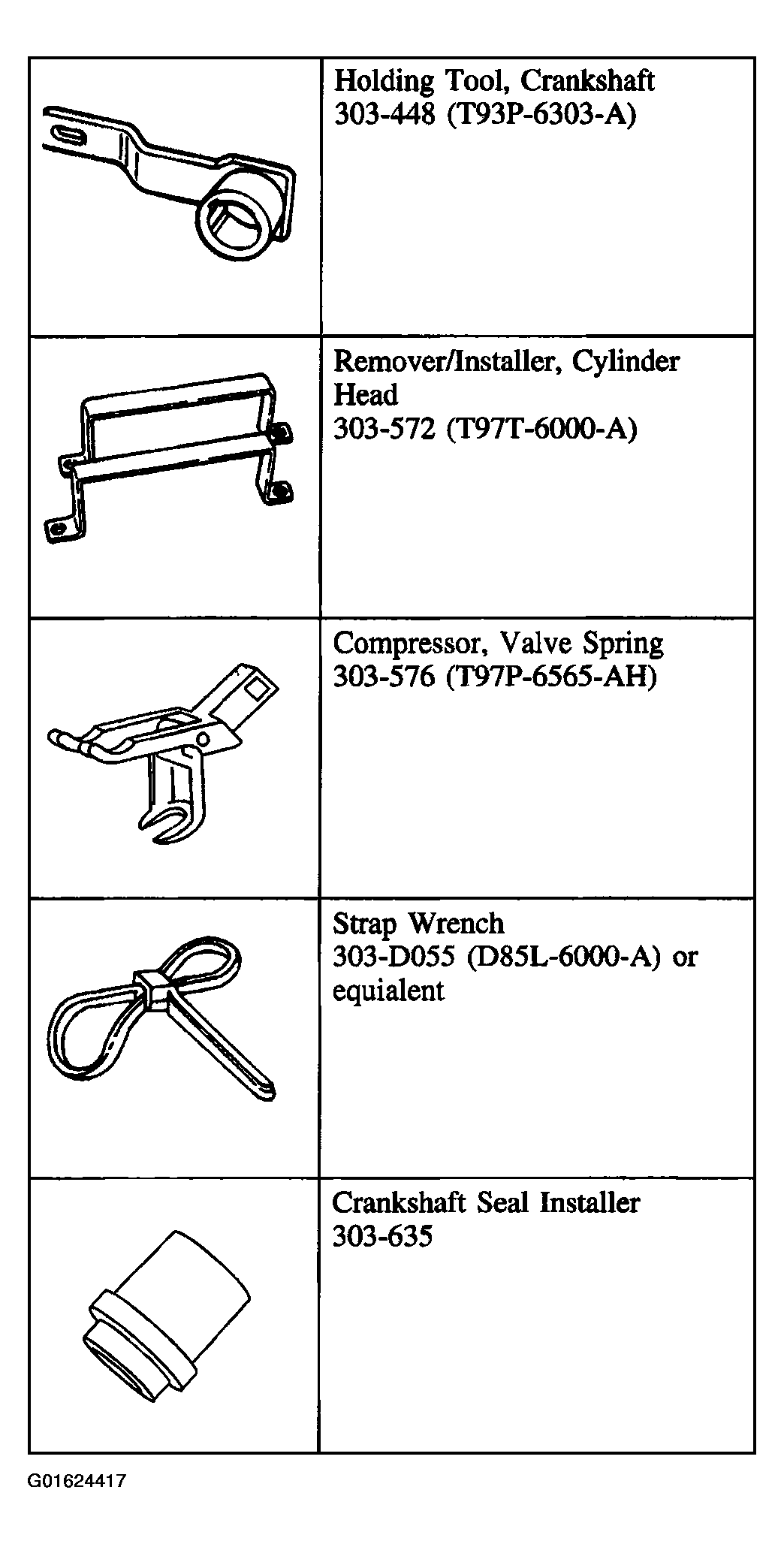

Fig 4: Identifying Special Tools (4 Of 4)
G01624417Courtesy of FORD MOTOR CO.
