Removal and Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect both battery ground cables. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the radiator. For additional information, refer to ENGINE COOLING .
  3. Remove the condenser. For additional information, refer to AIR CONDITIONING .
  4. Remove the serpentine drive belt. For additional information, refer to ACCESSORY DRIVE .
  5. Remove the turbocharger exhaust clamp.

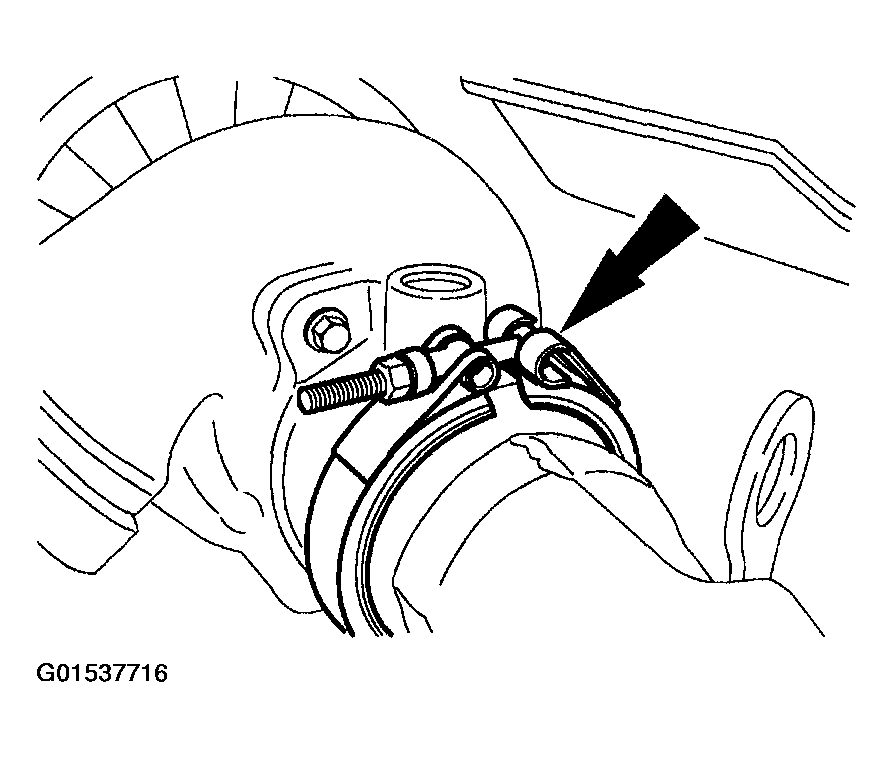

    Fig 1: Removing Turbocharger Exhaust Clamp
    G01537716Courtesy of FORD MOTOR CO.
  6. Remove the resonator. For additional information, refer to AIR INTAKE RESONATOR .
  7. Disconnect the electrical connector and the engine wiring harness from the bracket.
    Fig 2: Disconnecting Electrical Connector And Engine Wiring Harness From Bracket
    G01537717Courtesy of FORD MOTOR CO.
  8. Remove the nuts and the engine wiring harness bracket.

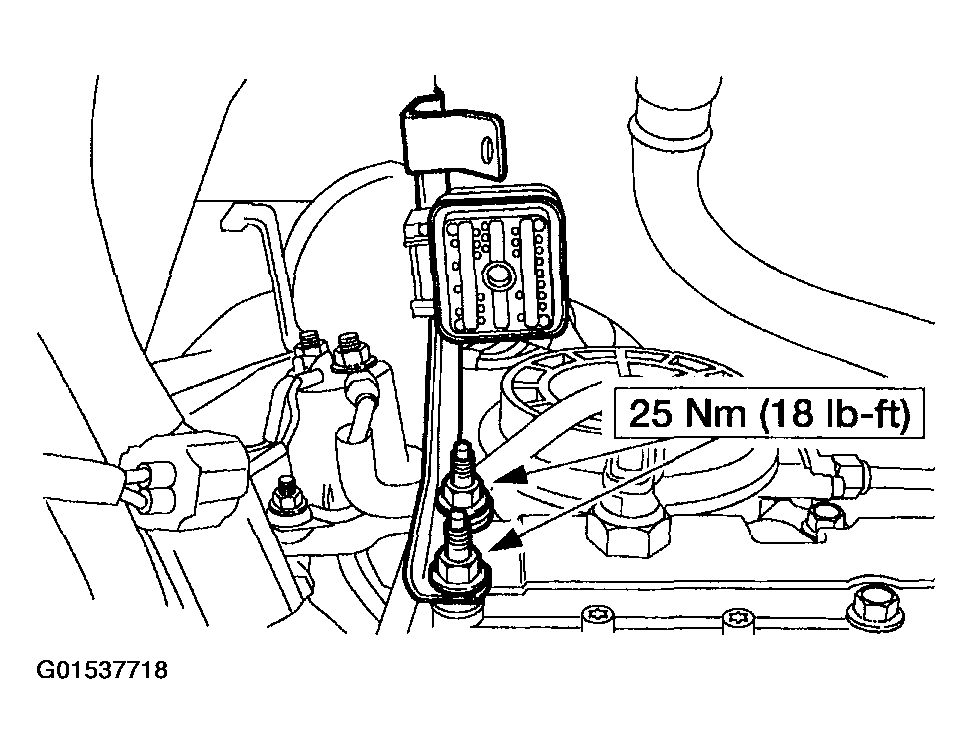

    Fig 3: Removing Engine Wiring Harness Bracket
    G01537718Courtesy of FORD MOTOR CO.
  9. Remove the nut and disconnect the transmission fluid indicator tube.

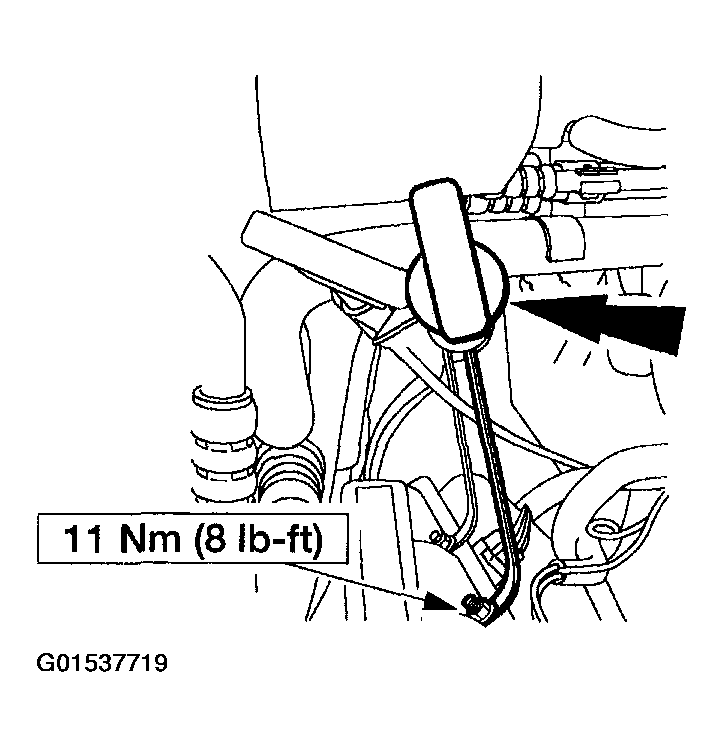

    Fig 4: Disconnecting Transmission Fluid Indicator Tube
    G01537719Courtesy of FORD MOTOR CO.
  10. Remove the oil fill tube bolt.

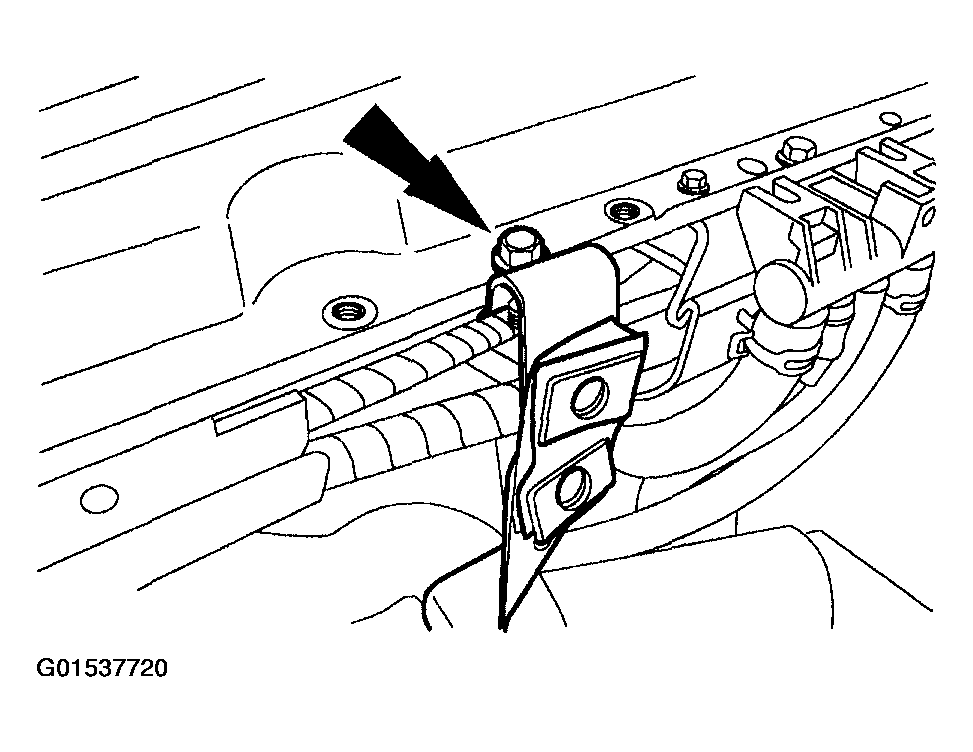

    Fig 5: Removing Oil Fill Tube Bolt
    G01537720Courtesy of FORD MOTOR CO.
  11. Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  12. Remove the bell housing bolt and position the transmission fluid indicator tube aside.

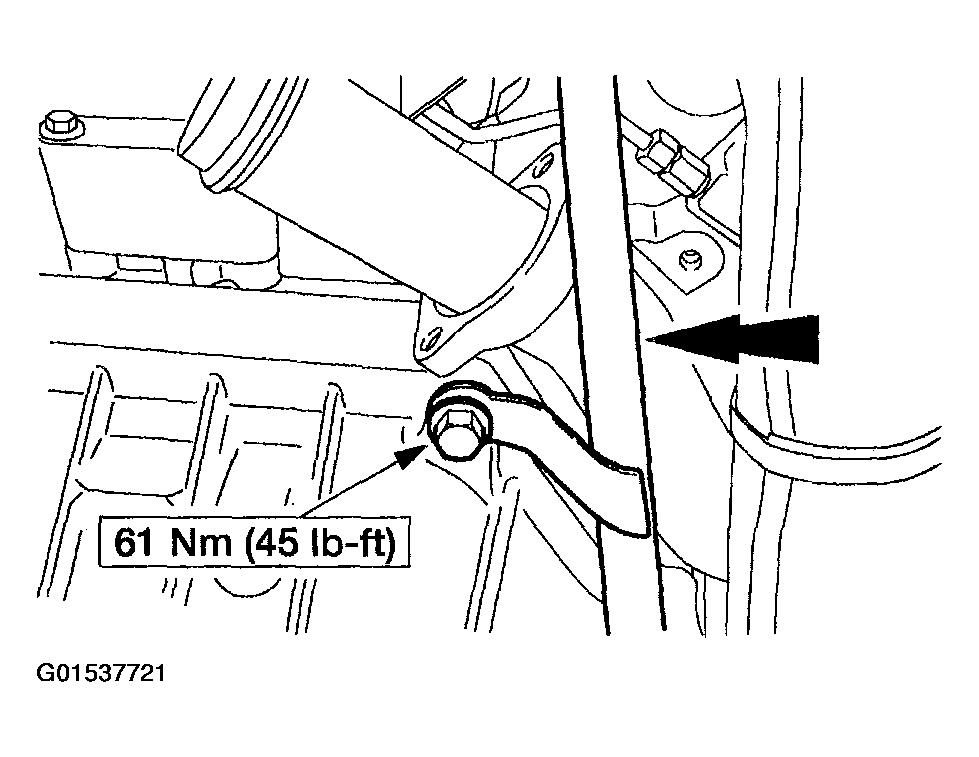

    Fig 6: Removing Bell Housing Bolt And Transmission Fluid Indicator Tube
    G01537721Courtesy of FORD MOTOR CO.
  13. Raise and support the vehicle.
  14. Remove the bolt securing the fuel tubes.

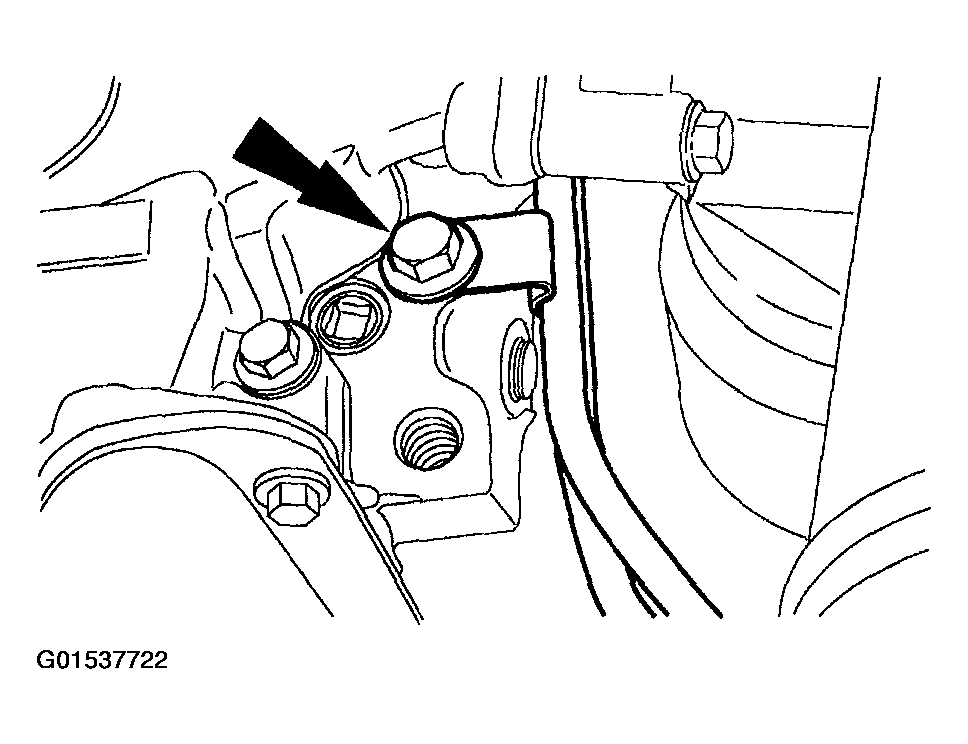

    Fig 7: Removing Bolt Securing Fuel Tubes
    G01537722Courtesy of FORD MOTOR CO.
  15. Remove the nut and the cable bracket. Remove the stud bolt, bolt and the transmission tube bracket.

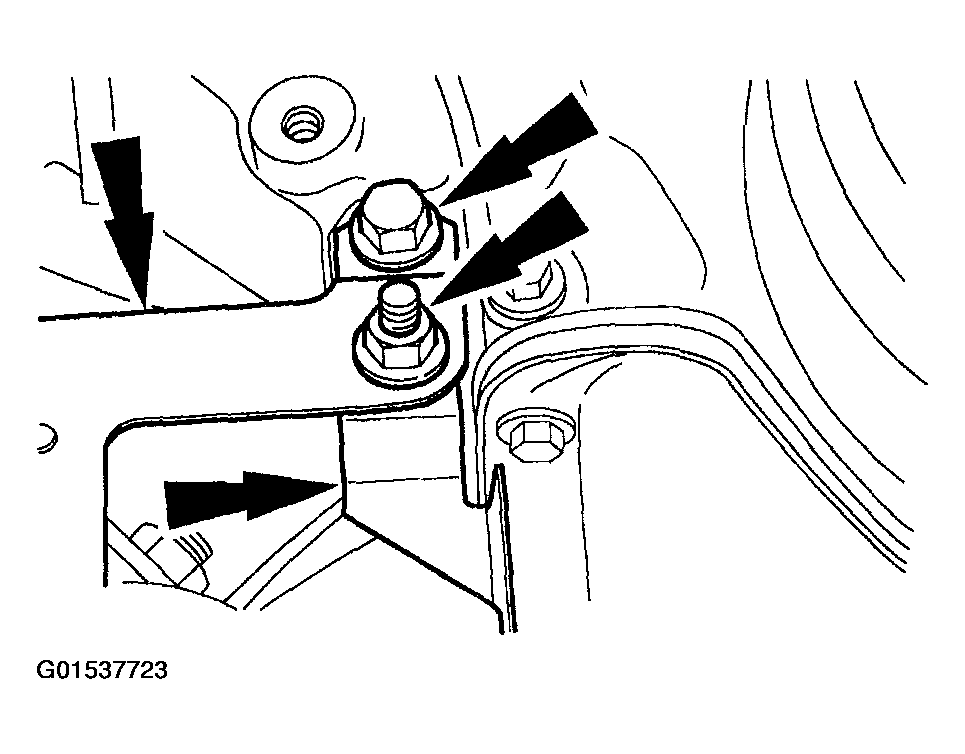

    Fig 8: Removing Cable Bracket And Transmission Tube Bracket
    G01537723Courtesy of FORD MOTOR CO.
    16. NOTE: Left side shown, right side similar.

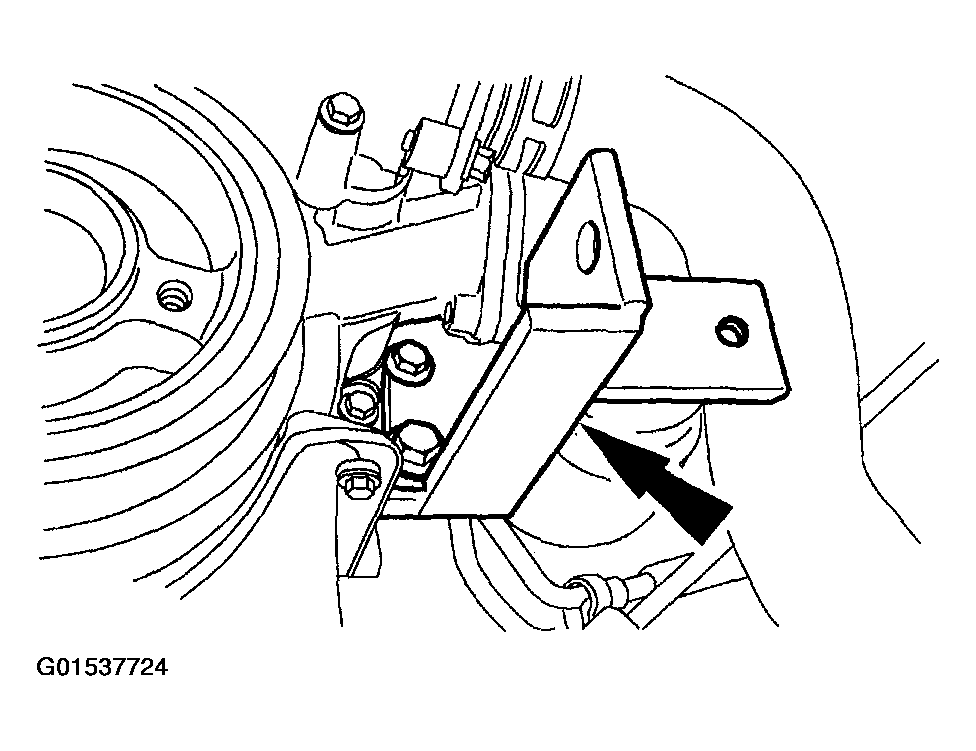

    Fig 9: Installing Mounting Brackets
    G01537724Courtesy of FORD MOTOR CO.
  16. Install the mounting brackets.
  17. Remove the mounting nuts.

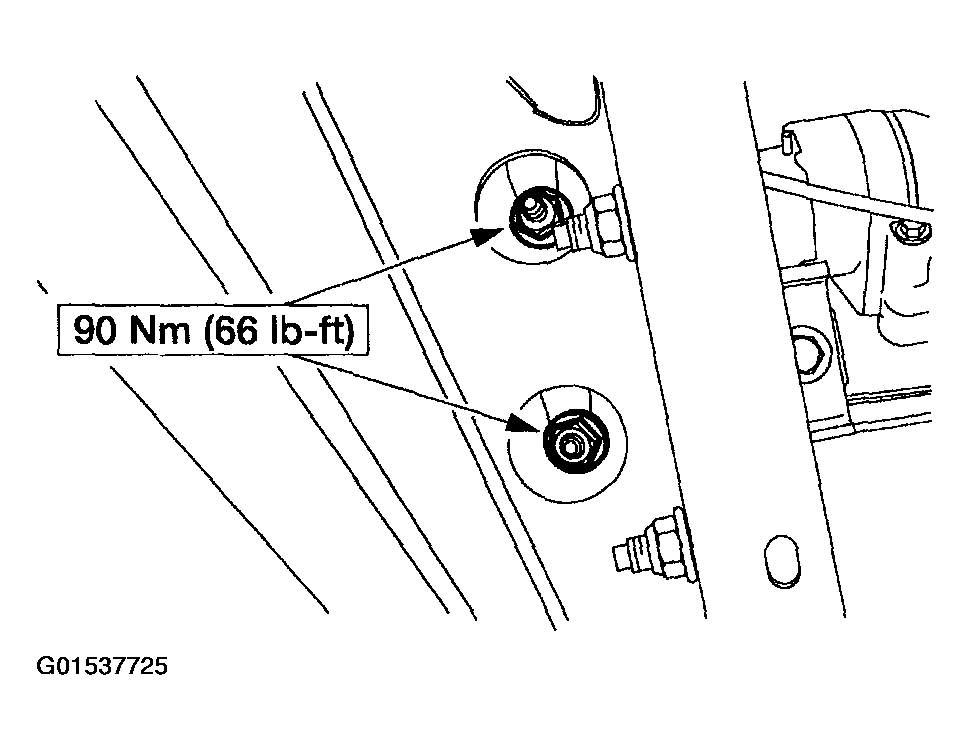

    Fig 10: Removing Mounting Nuts
    G01537725Courtesy of FORD MOTOR CO.
  18. Loosen the retaining bolts.

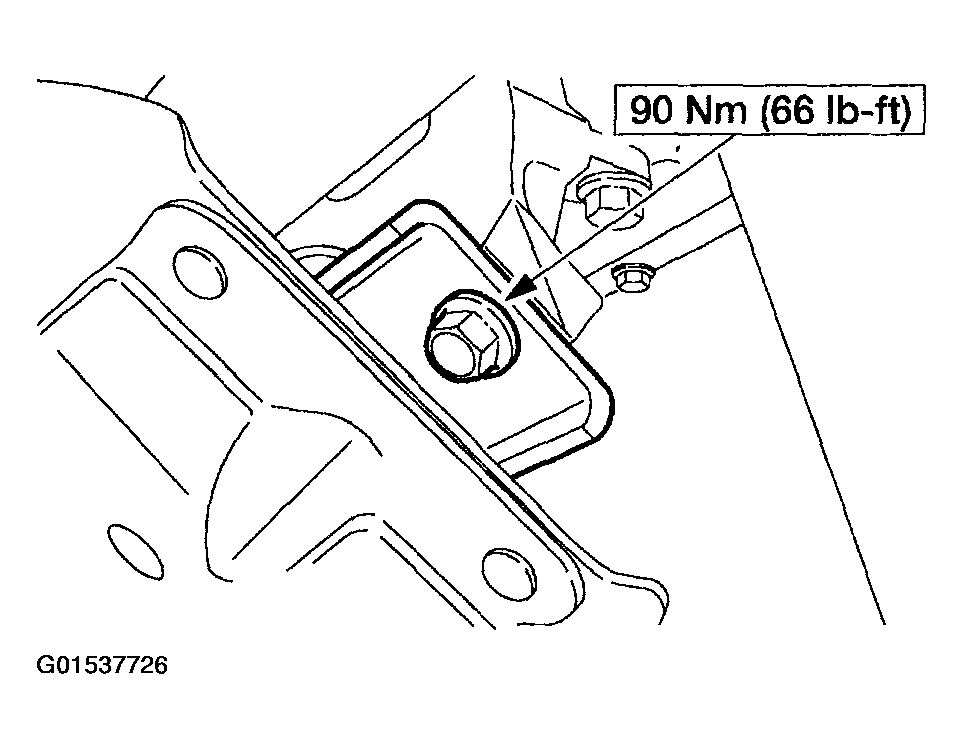

    Fig 11: Loosening Retaining Bolts
    G01537726Courtesy of FORD MOTOR CO.
  19. Lower the vehicle.
  20. Install the Diesel Engine Lifting Attachment and Heavy Duty Floor Crane.

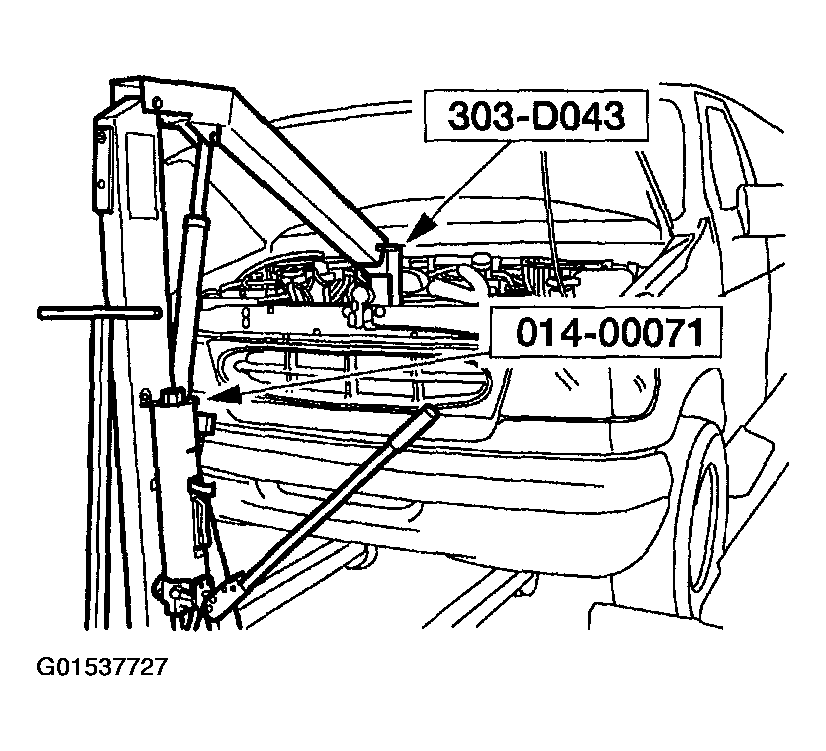

    Fig 12: Installing Diesel Engine Lifting Attachment And Heavy Duty Floor Crane
    G01537727Courtesy of FORD MOTOR CO.
    21. CAUTION: Make sure the turbocharger does not contact the cowl.
  21. Raise the engine until the studs clear the crossmember.
  22. Remove the bolts and the engine insulators.

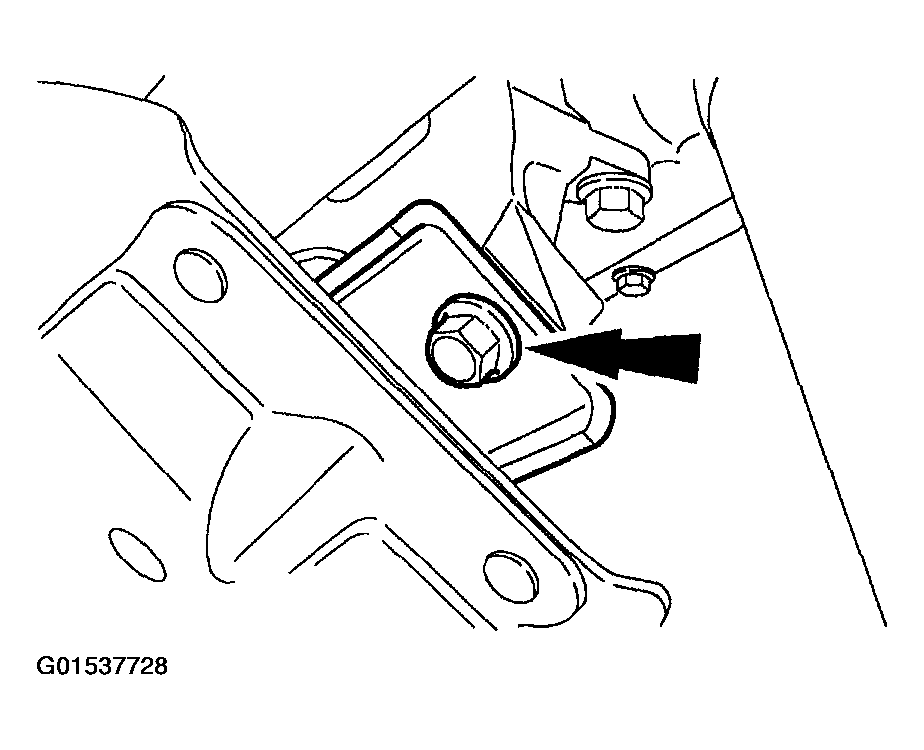

    Fig 13: Removing Engine Insulators
    G01537728Courtesy of FORD MOTOR CO.
  23. To install, reverse the removal procedure.
