Clearance Test
WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the oil pump (6600) for excessive metal particles.
- Inspect the oil pump for gouges, cracks or deep scratches.
- Inspect the oil pump inner and outer gerotors for damage or excessive wear.
- Using a straightedge and special tool 303-D027 (D81L-4201-A), measure the height clearance between the oil pump housing and the inner and outer gerotors. If the measurement does not meet specifications, install new gerotors as a set.

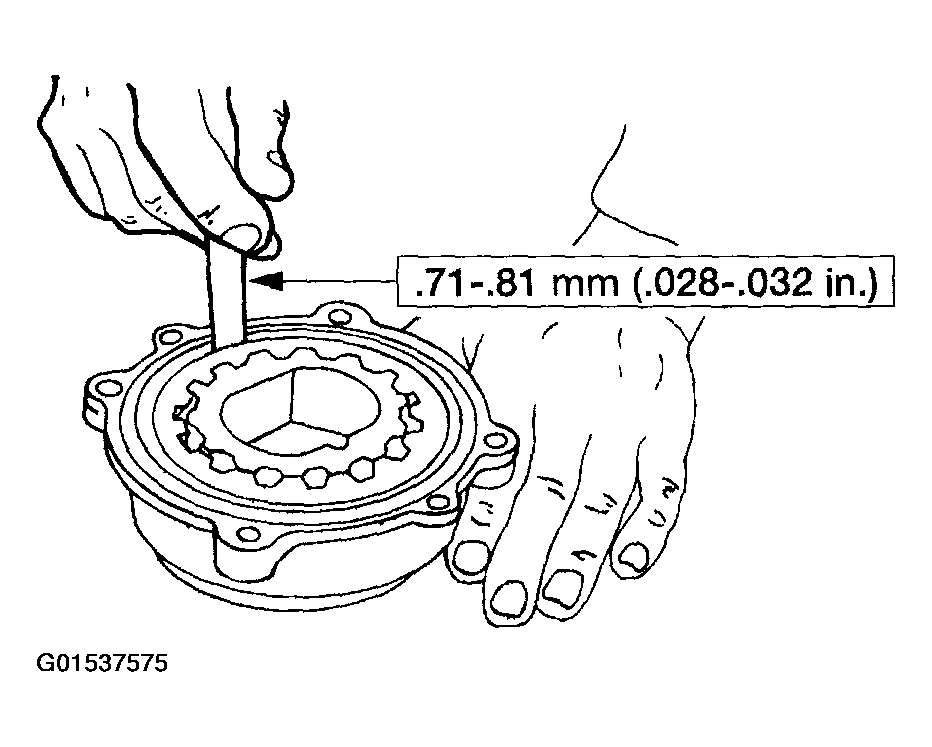

- Using the special tool, measure the clearance between the outer gerotor and the oil pump housing. If the measurement does not meet specifications, install new gerotors as a set.
