Removal And Installation: Headliner: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

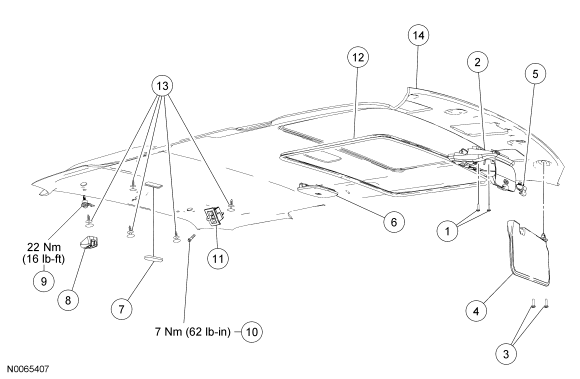

| Item | Part Number | Description |
|---|---|---|
| 1 | W505043 | Overhead console screws (2 required, if equipped) |
| 2 | 519A58 | Overhead console (if equipped) |
| 3 | N505003 | Sun visor screws (2 screws) |
| 4 | 04100 RH/ 04101 LH | Sun visor |
| 5 | 04132 | Sun visor clip |
| 6 | 13D76A | Interior lamp |
| 7 | 13776 | Cargo lamp |
| 8 | - | Child seat tether anchor cover (3 required) |
| 9 | - | Child seat tether anchor bolt (3 required) |
| 10 | W709735 | Garment hook screw (if equipped) |
| 11 | 290C14 | Garment hook (if equipped) |
| 12 | - | Headliner trim ring (if equipped) |
| 13 | W709343 | Pin-type retainers (5 required) |
| 14 | 51968 | Headliner |
