WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Radiator and radiator top shield are removed for clarity.

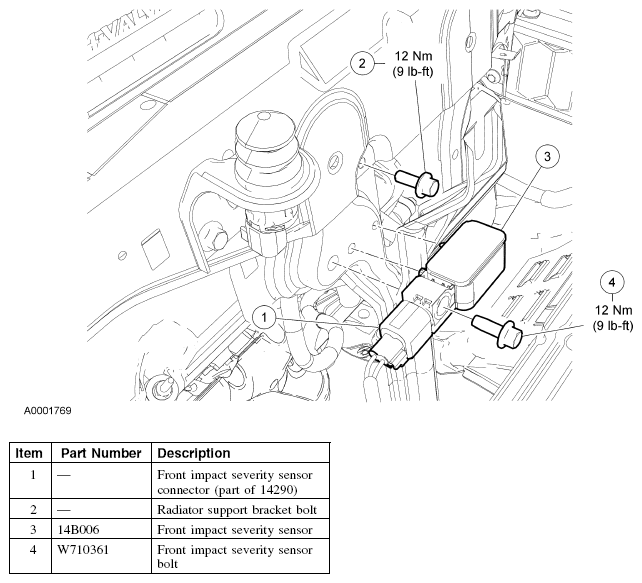

Fig 1: Front Impact Severity Sensor Replacement Components With Torque Specifications
