Master window/door lock/unlock switch, coupe

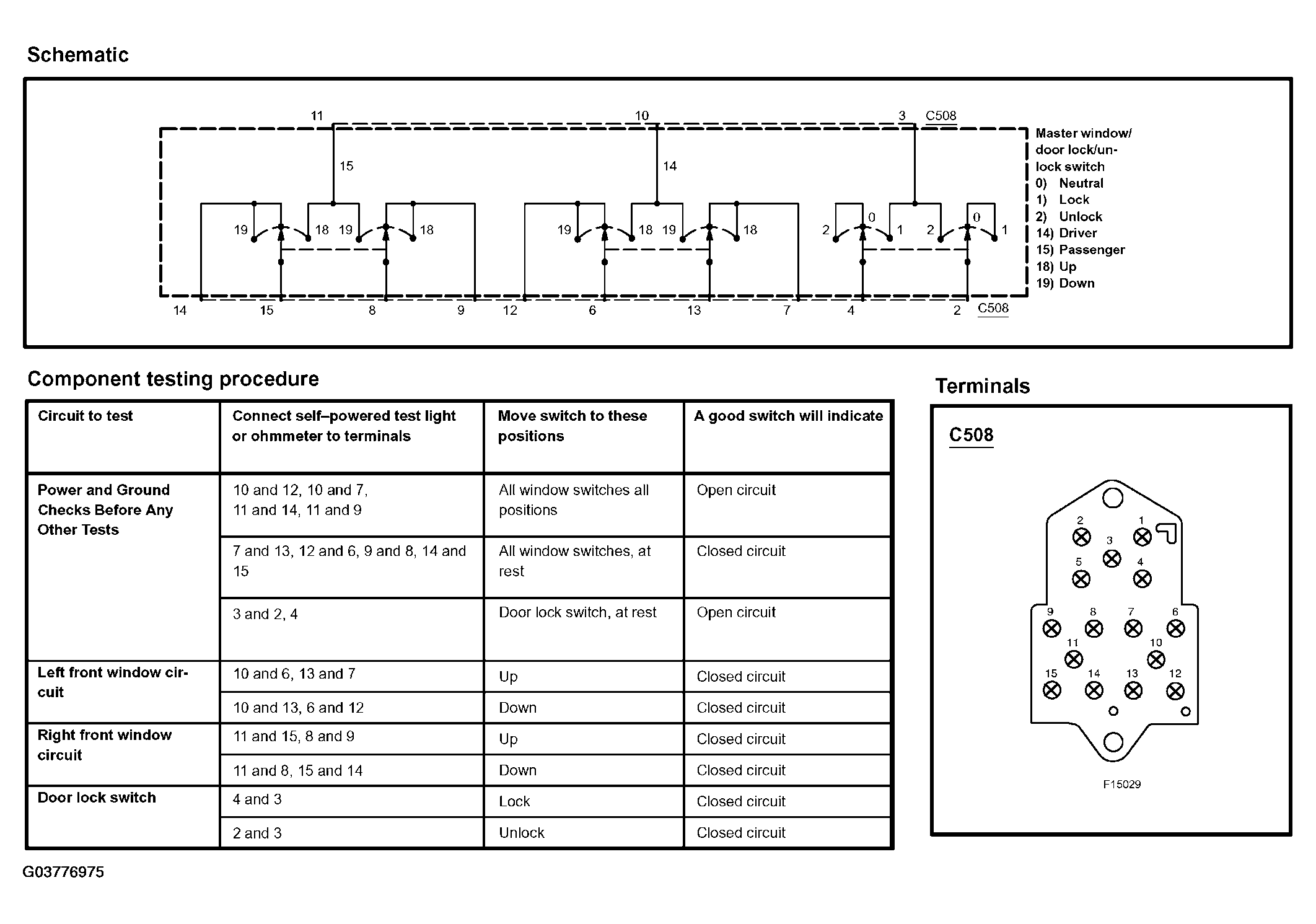

Fig 1: Testing Master Window/Door Lock/Unlock Switch, Coupe

G03776975

Courtesy of FORD MOTOR CO.
