Selector Lever Bezel: Removal

  1. Remove the selector lever knob. For additional information, refer to TRANSMISSION SELECTOR LEVER KNOB .
  2. Remove the selector lever bezel (selector lever assembly removed shown).
    • Unclip the bezel.
    • Unclip the lamp.

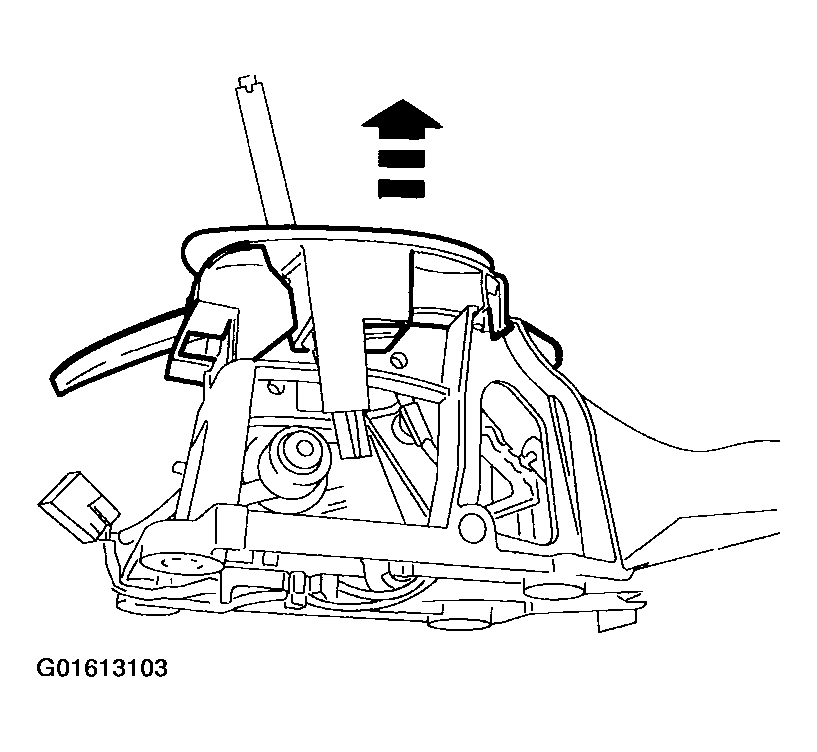

    Fig 1: Removing Selector Lever Bezel
    G01613103Courtesy of FORD MOTOR CO.
