Home >> Ford >> 2003 >> Focus ZX5, 2.3 Z, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Specifications >> Reference: Band/Clutch Application Chart

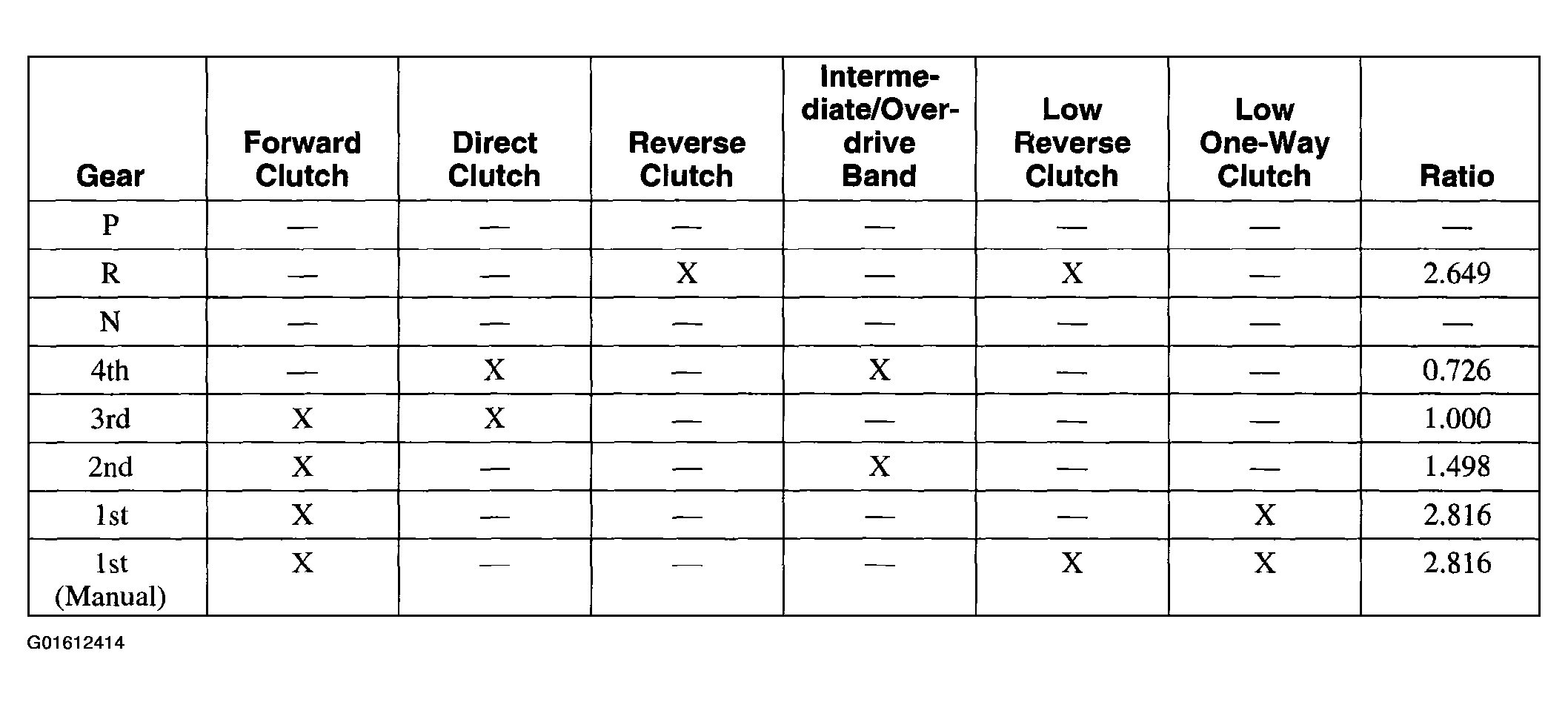

Reference: Band/Clutch Application Chart

Fig 1: Reference: Band/Clutch Application Chart

G01612414

Courtesy of FORD MOTOR CO.
