Intermediate/Overdrive Band Bolt Chart

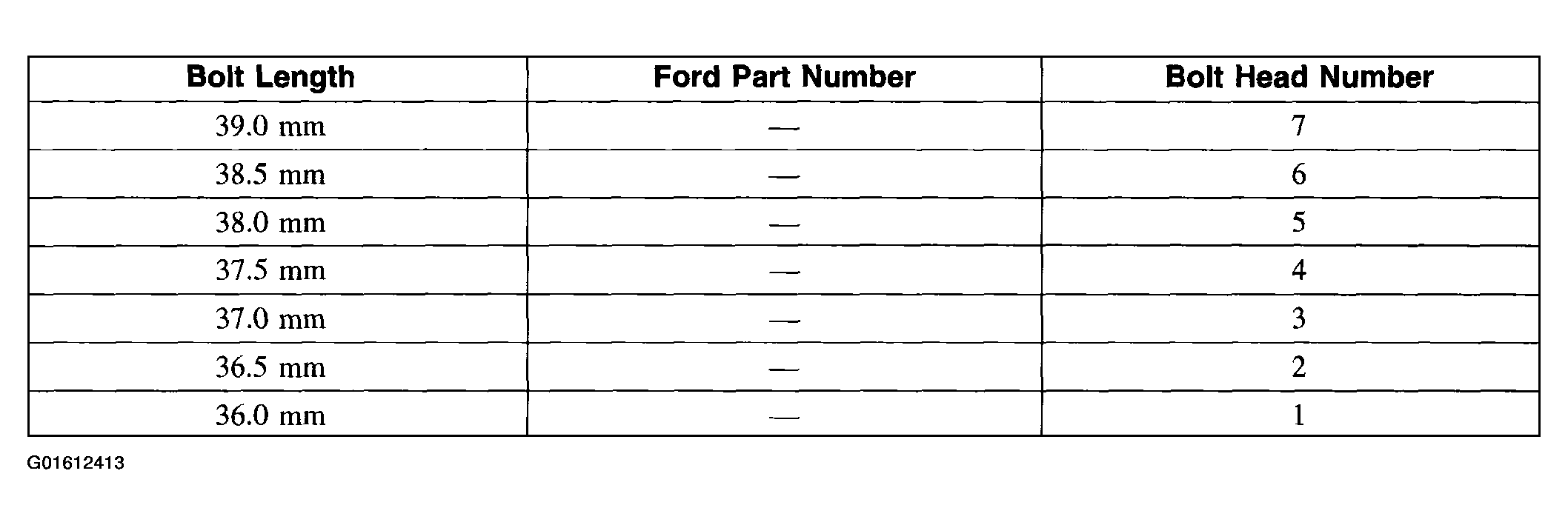

Fig 1: Intermediate/Overdrive Band Bolt Chart

G01612413

Courtesy of FORD MOTOR CO.
