Rear Wheel Speed Sensor: Installation

  1. To install, reverse the removal procedure.

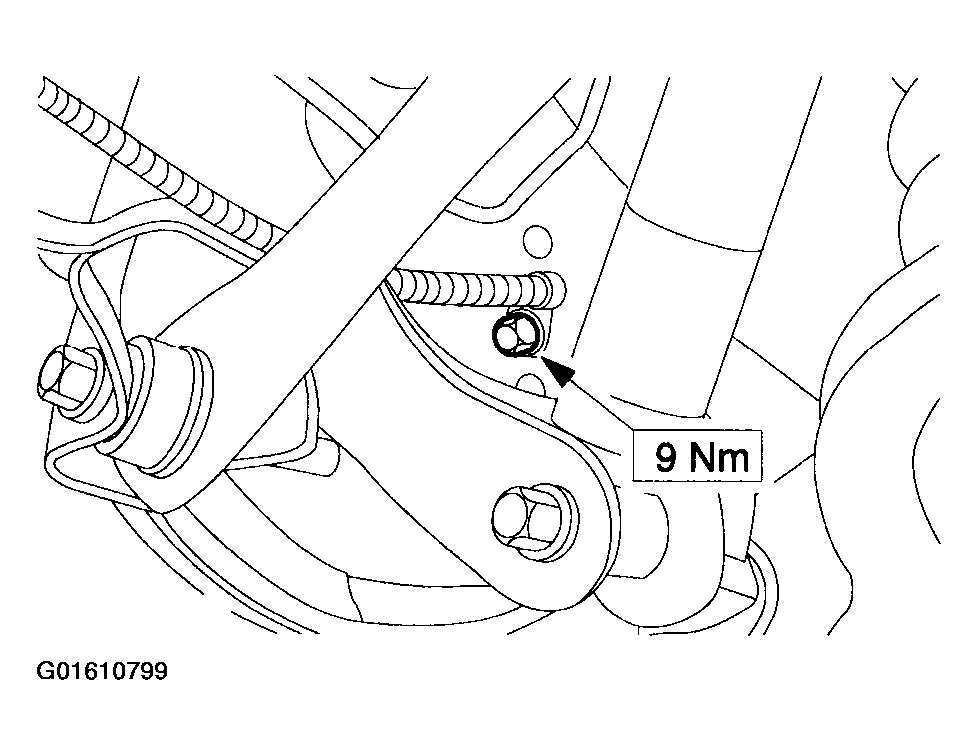

    Fig 1: Installing Wheel Speed Sensor
    G01610799Courtesy of FORD MOTOR CO.

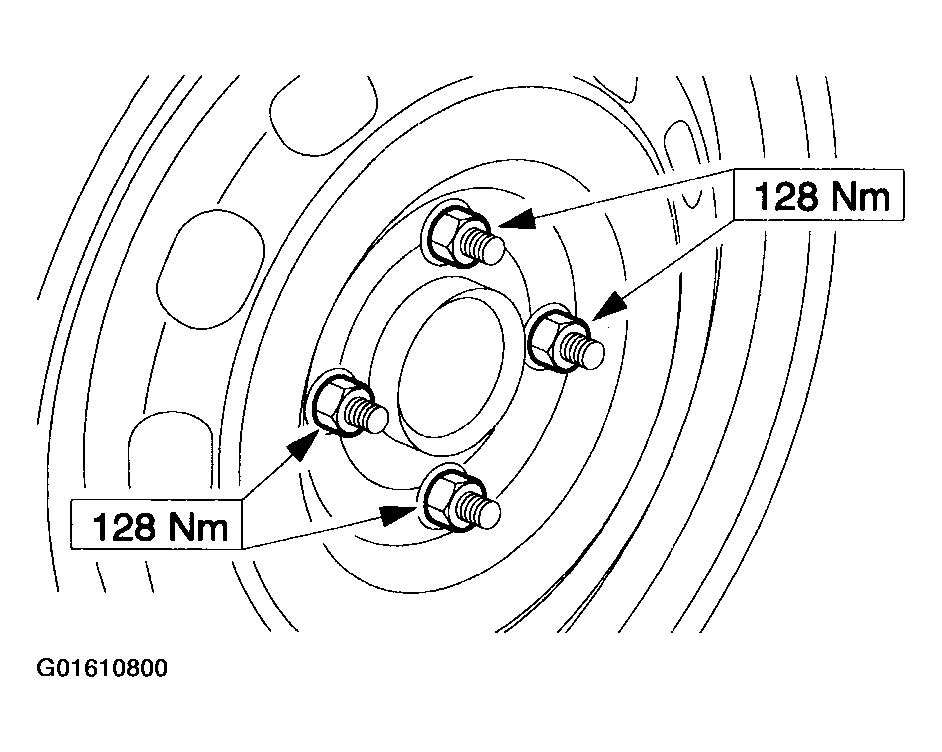

    Fig 2: Identifying Nut
    G01610800Courtesy of FORD MOTOR CO.
