Connecting Rod

WARNING: This page is about a different variant/trim than selected.

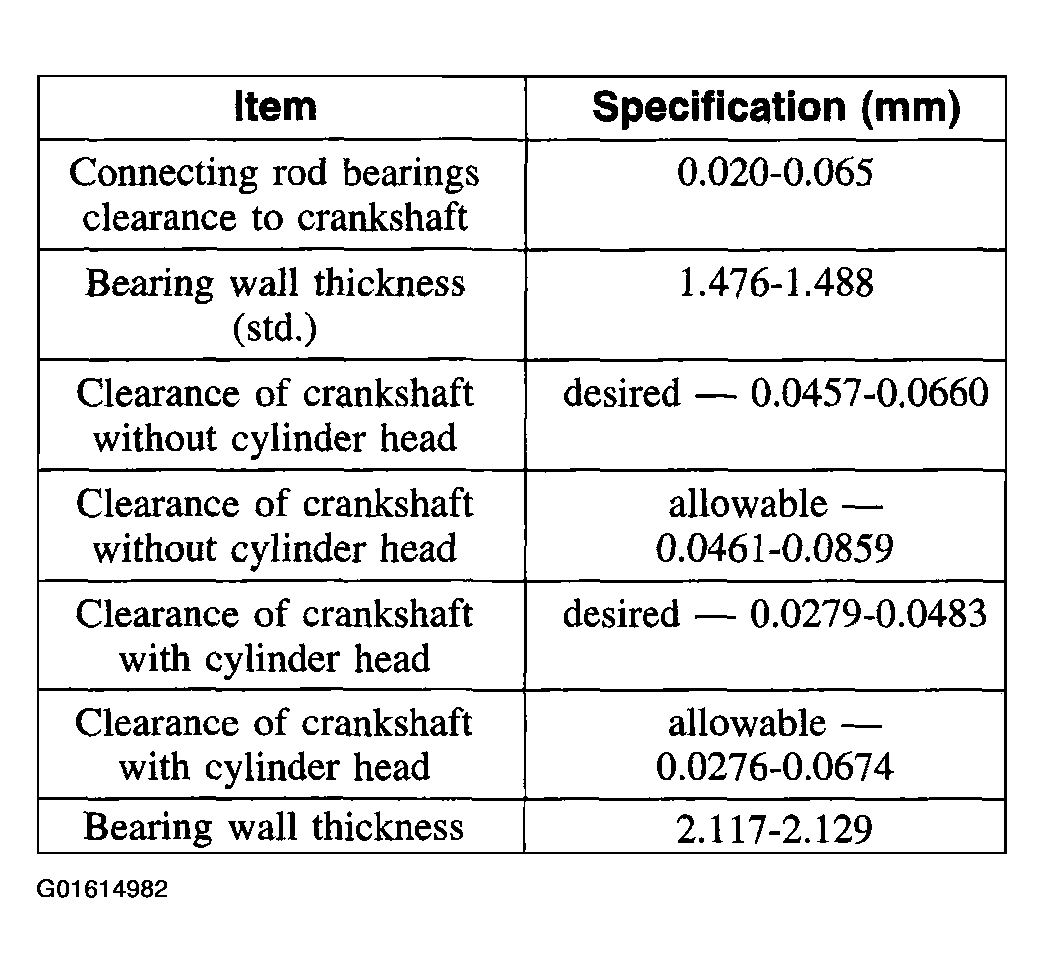

Fig 1: Connecting Rod Specifications Chart (1 Of 2)
G01614982Courtesy of FORD MOTOR CO.

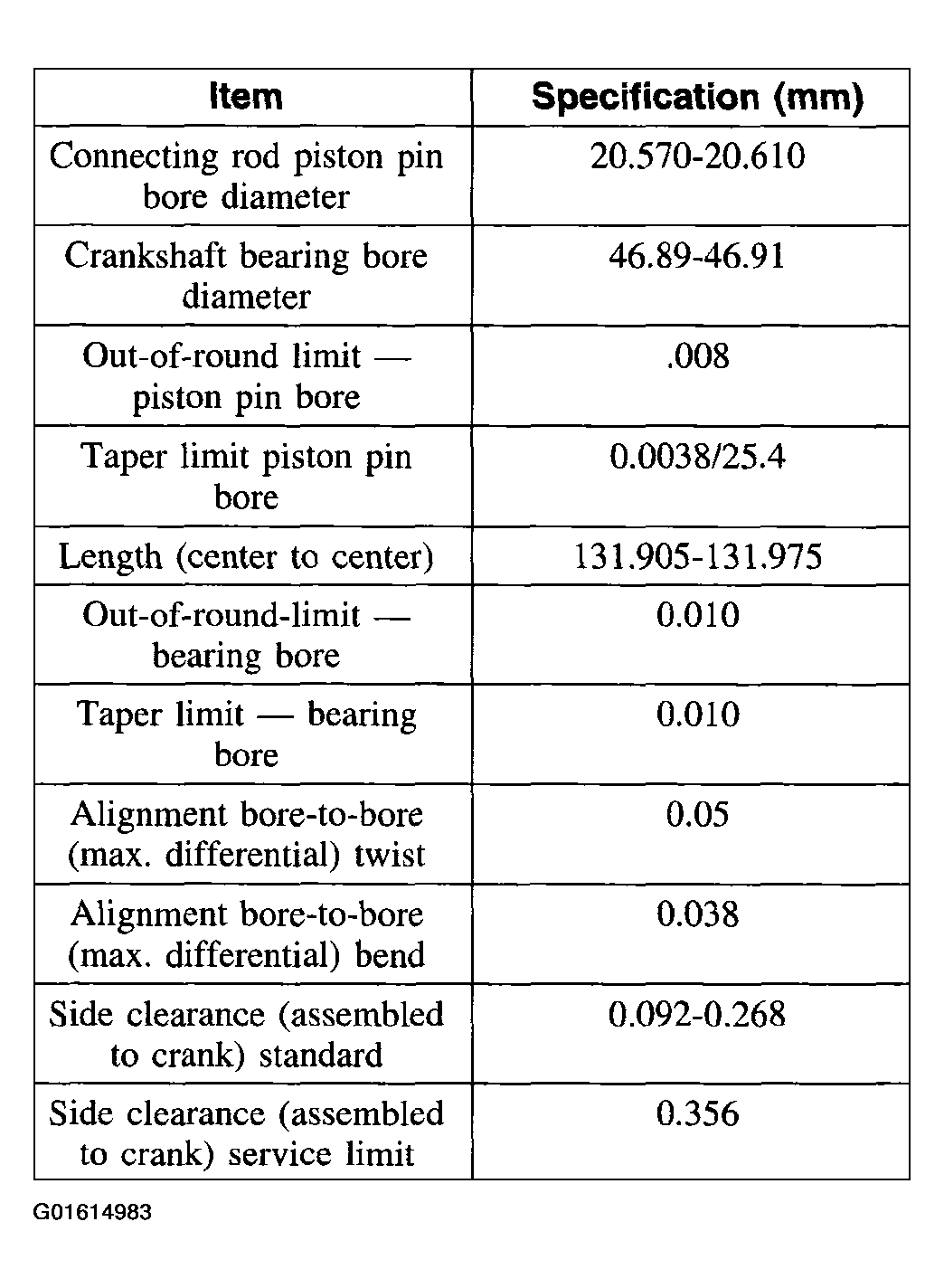

Fig 2: Connecting Rod Specifications Chart (2 Of 2)
G01614983Courtesy of FORD MOTOR CO.
