Section 2 (Engine-2.0L SPI)
>>
Description And Operation
>>
Engine
>>
General
>>
Upper Engine Components
Upper Engine Components
WARNING:
This page is about a different variant/trim than selected.

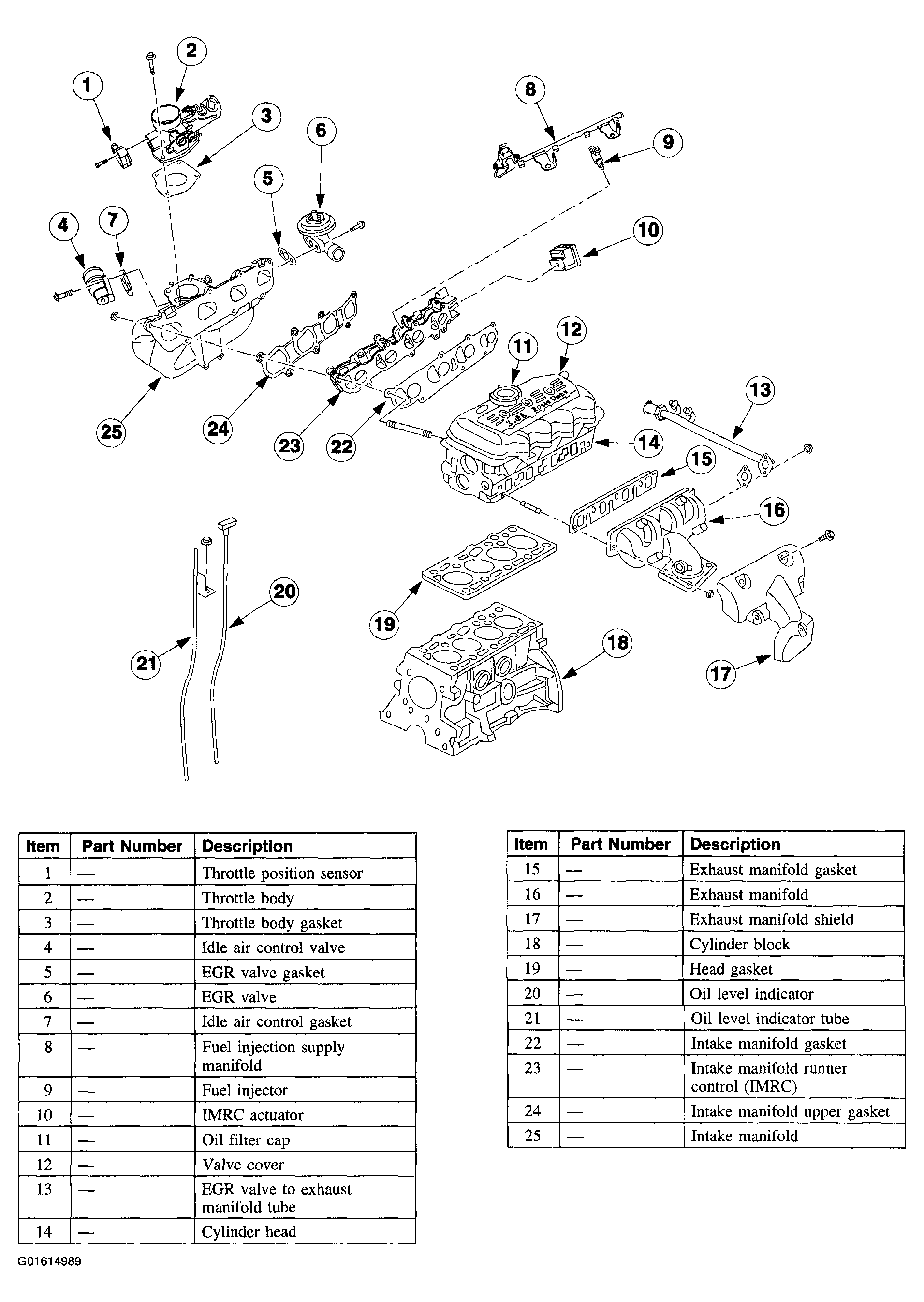

Fig 1: Exploded View Of Upper Engine Components
Courtesy of FORD MOTOR CO.
