Engine Data

WARNING: This page is about a different variant/trim than selected.

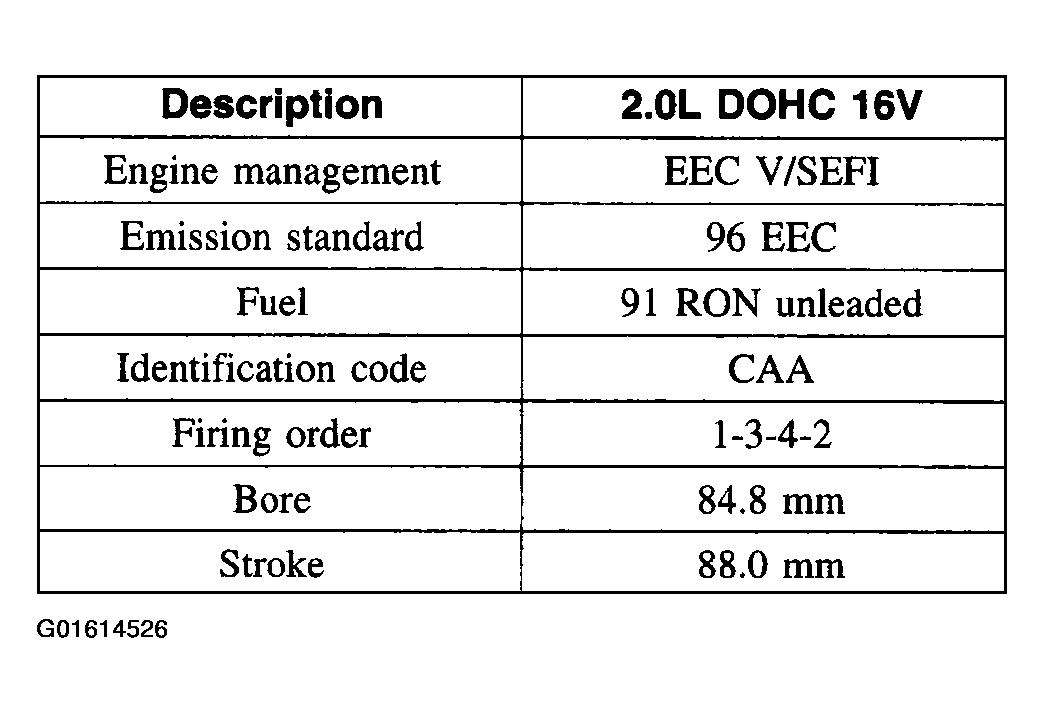

Fig 1: Engine Description Specification Chart (1 Of 2)
G01614526Courtesy of FORD MOTOR CO.

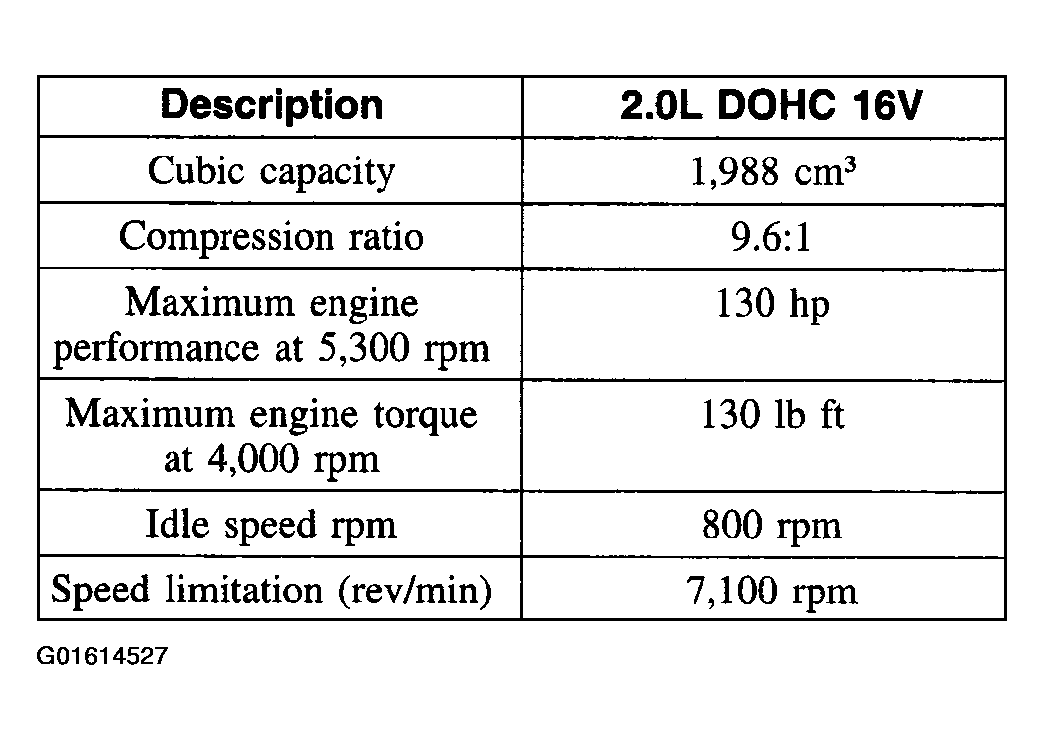

Fig 2: Engine Description Specification Chart (2 Of 2)
G01614527Courtesy of FORD MOTOR CO.
