Selector Lever Bezel: Installation

  1. Install the selector lever bezel (selector lever assembly removed shown).
    • Clip in the bezel.
    • Clip in the lamp.

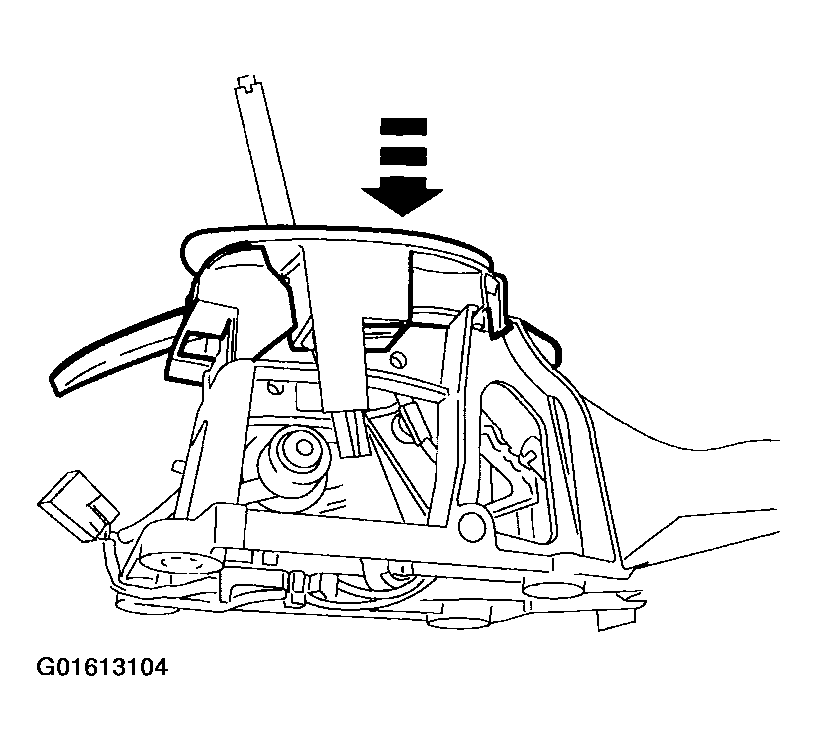

    Fig 1: Installing Selector Lever Bezel
    G01613104Courtesy of FORD MOTOR CO.
  2. Install the selector lever knob. For additional information, refer to TRANSMISSION SELECTOR LEVER KNOB .
