Selector Lever Cable Adjuster

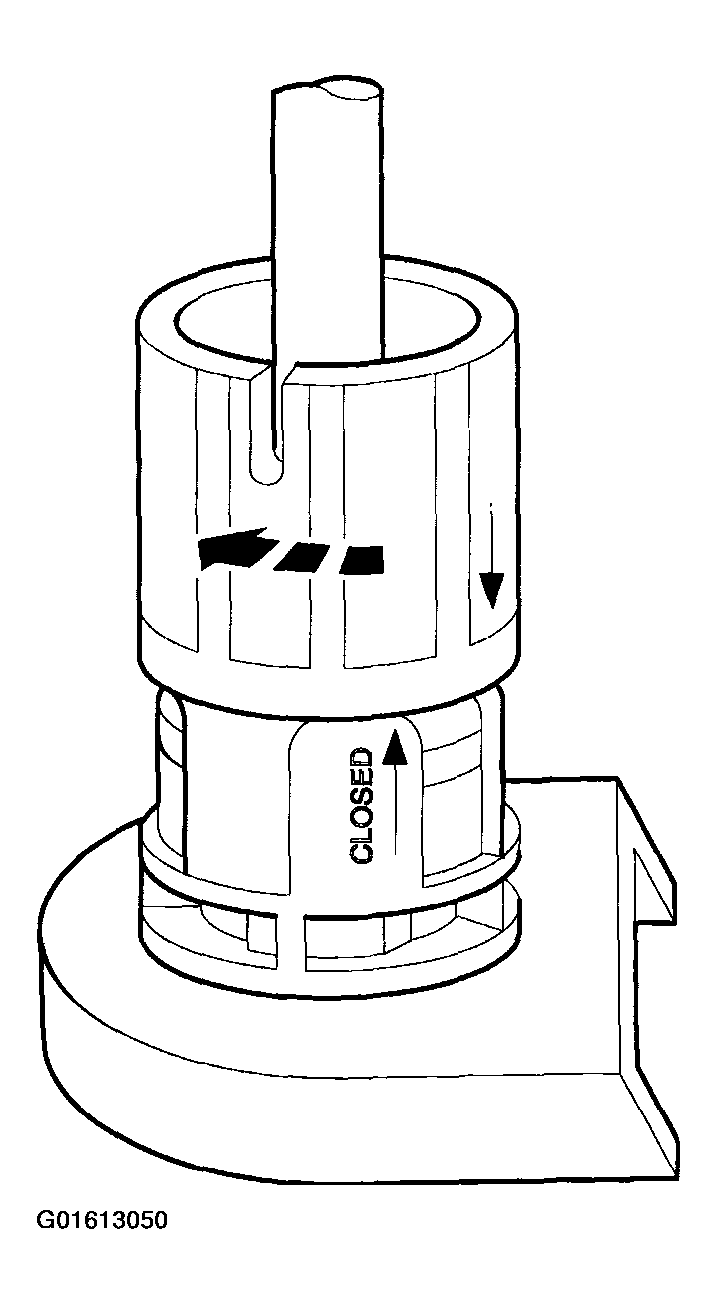

Fig 1: Opening Selector Lever Cable Adjuster

Courtesy of FORD MOTOR CO.

Adjuster in closed position; turn in the direction of the arrow to open.

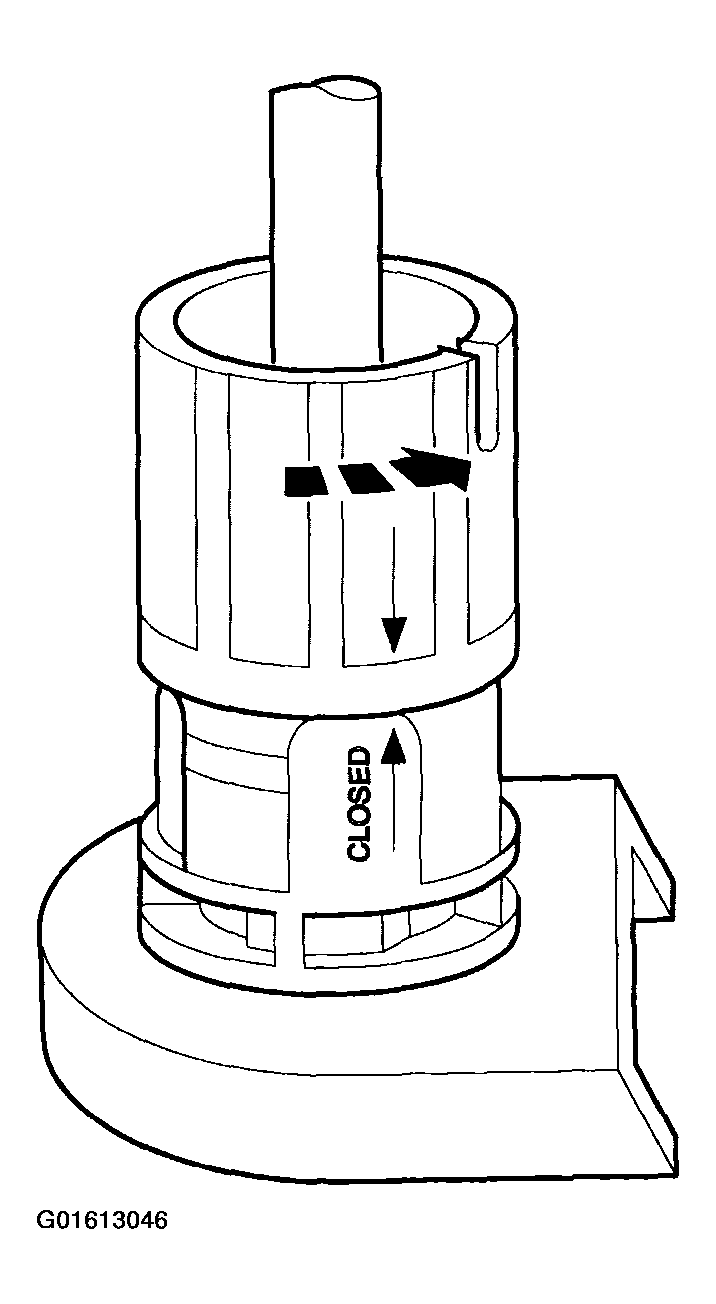

Fig 2: Closing Selector Lever Cable Adjuster

Courtesy of FORD MOTOR CO.

Adjuster in open position; turn in the direction of the arrow to close.

• A quick-release fastening on the selector lever cable allows adjustment of the cable relative to the conduit.
• Adjustment is required if the transaxle or the selector lever has been removed, if the engine does not start in "P" or "N" in case of shift quality concerns or if the switch catches are incorrect.
  Fig 3: Aligning Selector Lever "D" Position

  Courtesy of FORD MOTOR CO.

  To adjust the selector lever cable, the selector lever must be in position "D".

  Fig 4: Opening Selector Lever Cable Adjuster

  Courtesy of FORD MOTOR CO.

  First open the selector lever cable adjuster.

• To make sure the transaxle is in position "D" the cable should be removed from the shift shaft lever, the transaxle should be shifted in "D" and the selector lever cable should be clipped again onto the shift shaft lever.
• The selector lever cable must not be stressed. The selector lever cable must be free from binding.
  Fig 5: Closing Selector Lever Cable Adjuster

  Courtesy of FORD MOTOR CO.

  The selector lever cable is locked by turning the cable adjuster after making sure again the shift mechanism is in "D".
