Direct Clutch Hub Shim Selection Chart

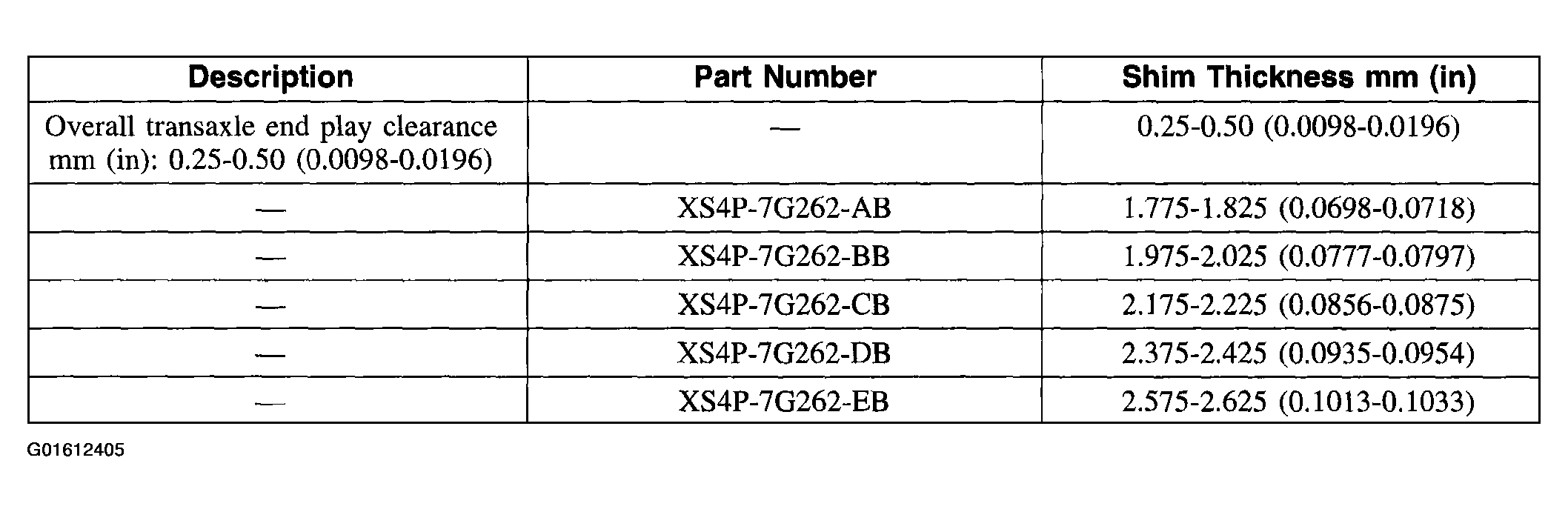

Fig 1: Direct Clutch Hub Shim Selection Chart

G01612405

Courtesy of FORD MOTOR CO.
