Torque Specifications

Fig 1: Steering System Torque Specifications (1 Of 2)

G01610940

Courtesy of FORD MOTOR CO.

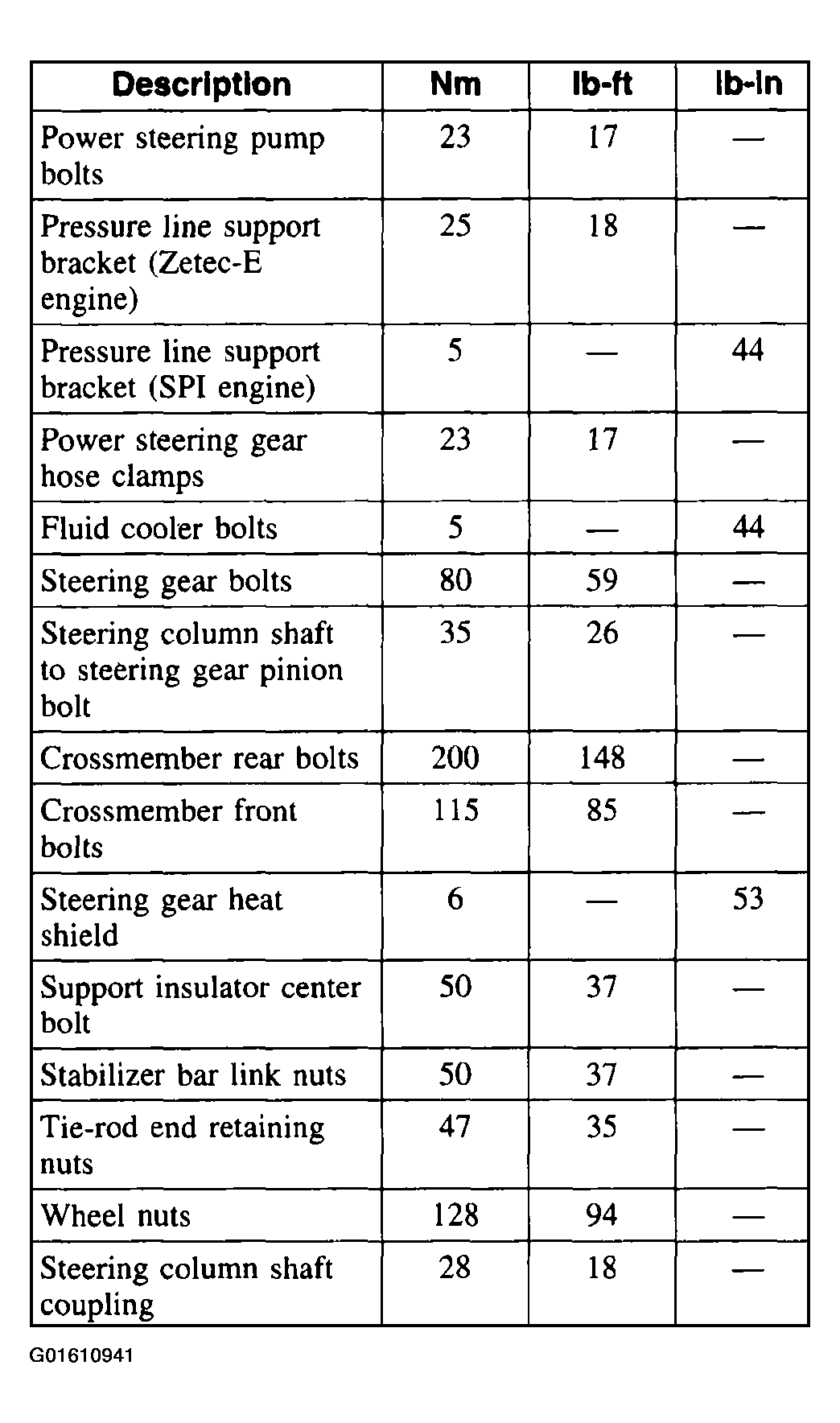

Fig 2: Steering System Torque Specifications (2 Of 2)

G01610941

Courtesy of FORD MOTOR CO.
