In-Vehicle Repair: Flywheel: Installation

NOTE: Engine balancing is not required. Balance weights should not be installed on the new flywheel.

NOTE: Special bolts are used for installation. Do not use standard bolts.

Inspect the pilot bearing. Install a new pilot bearing as necessary.
Install the flywheel. Tighten the bolts in the sequence shown in three stages.
- Stage 1: Tighten to 50 Nm (37 lb-ft).
- Stage 2: Tighten to 80 Nm (50 lb-ft).
- Stage 3: Tighten to 112 Nm (83 lb-ft).

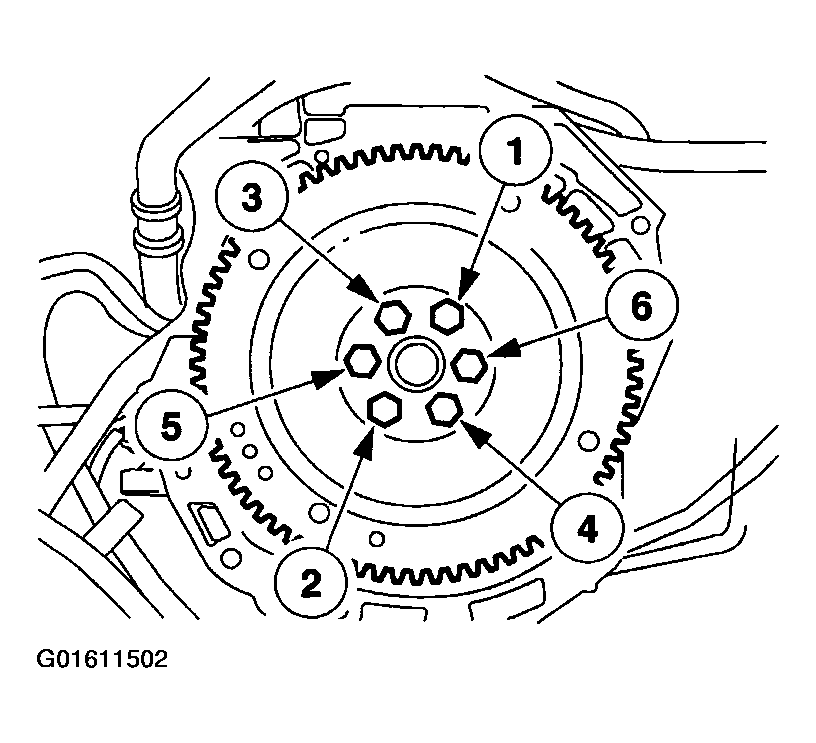

  Fig 1: Flywheel Bolts Tightening Sequence
  Courtesy of FORD MOTOR CO.
Install the clutch assembly. For additional information, refer to CLUTCH-MTX75 TRANSAXLE .
Install the transmission. For additional information, refer to MANUAL TRANSAXLE EXTERNAL CONTROLS-MTX75 TRANSAXLE .
