In-Vehicle Repair: Flexplate: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & HOISTING .
  2. Remove the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .
  3. Remove the flexplate bolts.

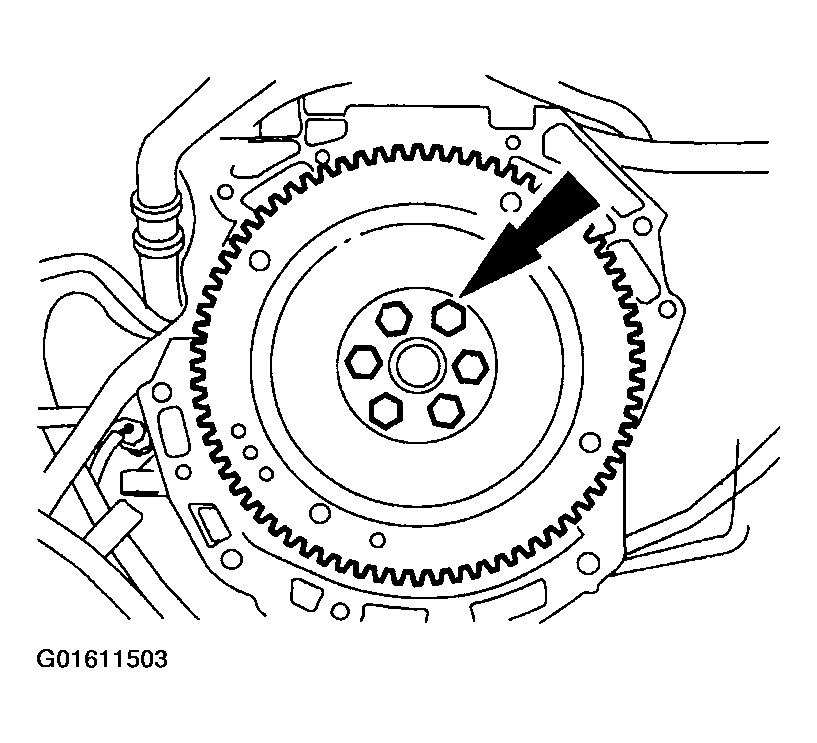

    Fig 1: Removing Flexplate Bolts
    G01611503Courtesy of FORD MOTOR CO.
