Transmission Fluid Drain and Refill: Material

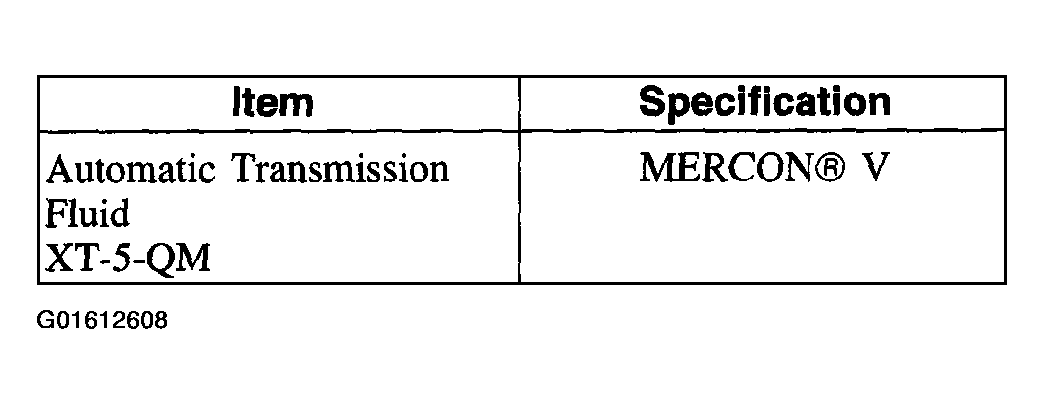

Fig 1: Material Specifications

Courtesy of FORD MOTOR CO.

1. Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
WARNING: When releasing the transaxle cooling system fluid pressure, cover the fluid hose with a thick cloth to prevent the possibility of scalding. Failure to follow this instruction may result in personal injury.
CAUTION: Whenever the fluid cooler hoses are disconnected from the fluid cooler, the outlet and inlet ports must be plugged to prevent the ingress of foreign material.

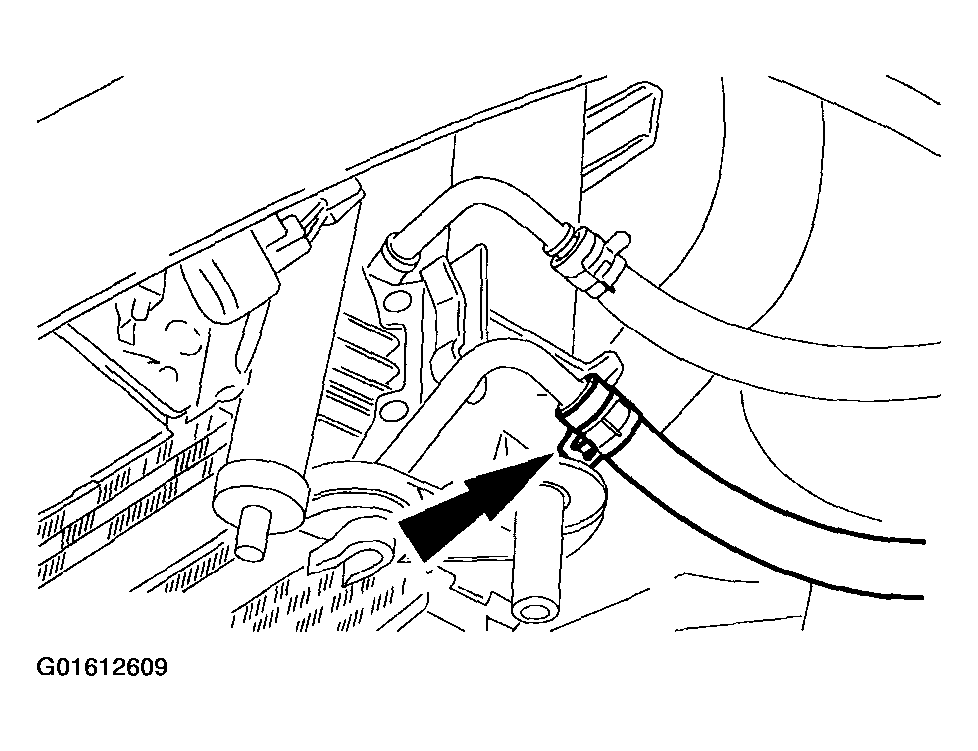

Fig 2: Disconnecting Return Hose From Transmission Fluid Cooler
Courtesy of FORD MOTOR CO.
2. Disconnect the return hose from the transmission fluid cooler.
   • Allow the fluid to drain into a suitable container.
3. Attach a length of suitable drain hose to the transmission fluid cooler return hose.
4. Lower the vehicle.
5. Insert the drain hose into a calibrated 10 liter (10.5 quarts) container.
CAUTION: To prevent damage to the transaxle, do not run the engine above idle.
NOTE: If the fluid return rate is less than 0.95 liters (1.0 quart) in 30 seconds, or if the return hose pulsates, check for restrictions at the pump, cooler or cooler lines.
6. Run the engine at idle and pump out 3 liters (3.17 quarts) of automatic transmission fluid.
7. Switch OFF the engine.
8. Remove the fluid level indicator from the fluid level indicator tube.

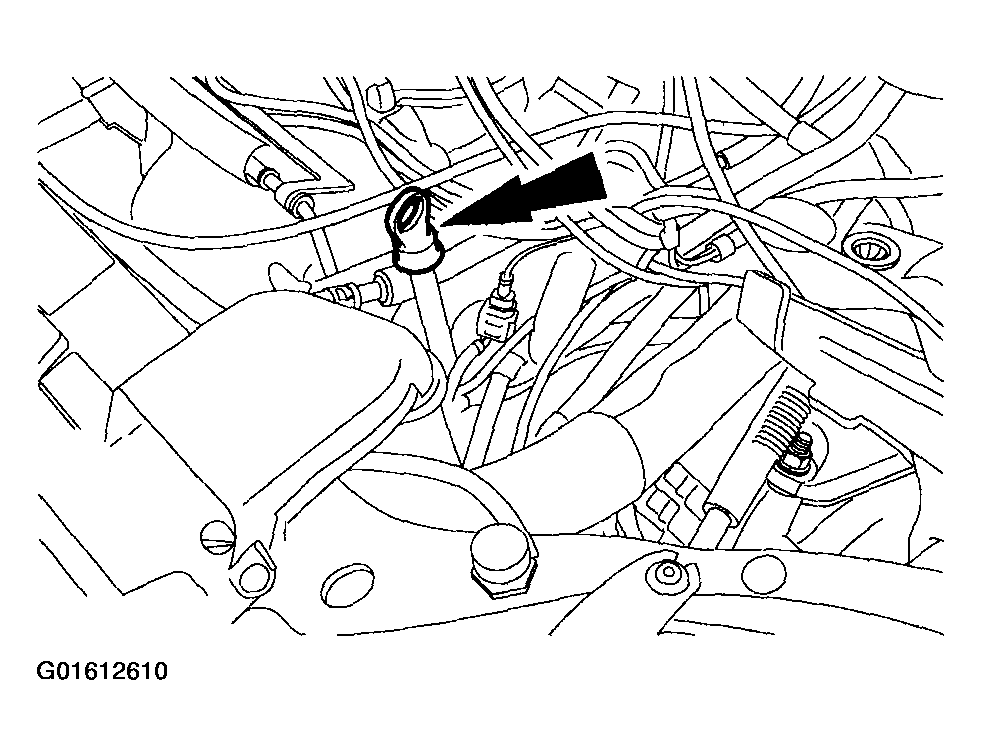

   Fig 3: Removing Fluid Level Indicator From Fluid Level Indicator Tube

   Courtesy of FORD MOTOR CO.
9. Add 3 liters of automatic transmission fluid to the transaxle.

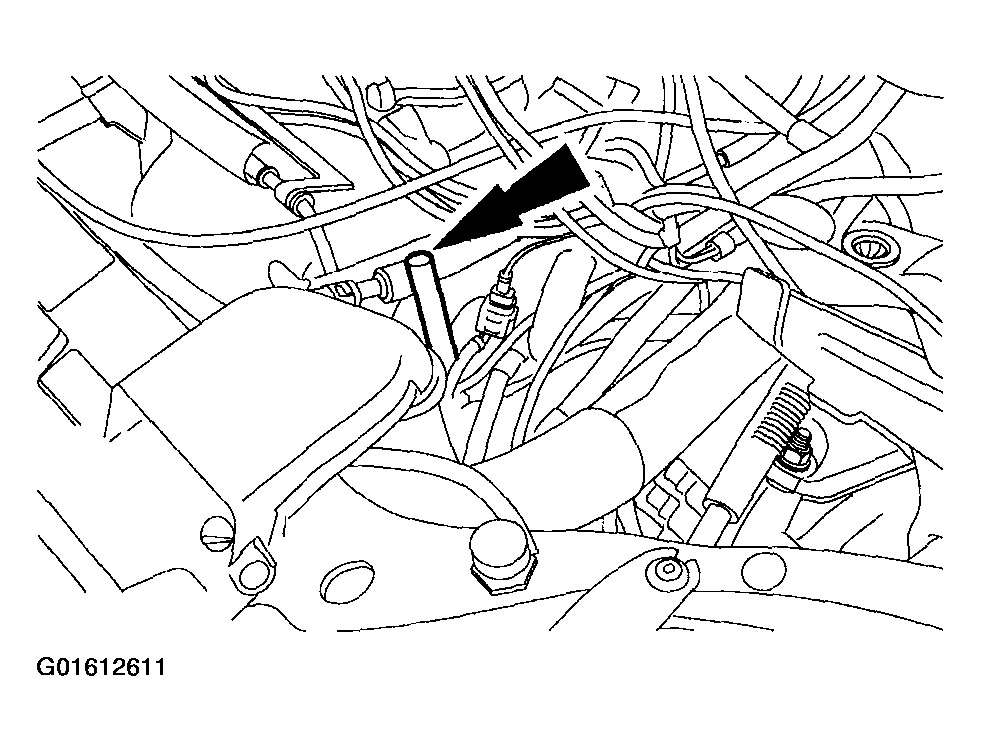

   Fig 4: Identifying Fuel Level Indicator Tube

   Courtesy of FORD MOTOR CO.
CAUTION: To prevent damage to the transaxle, do not run the engine above idle.
NOTE: If the fluid return rate is less than 0.95 liters in 30 seconds, or if the return hose pulsates, check for restrictions at the pump, cooler or cooler lines.
10. Run the engine at idle and pump out 3 liters (3.17 quarts) of automatic transmission fluid.
11. Switch OFF the engine.
12. Add 3 liters (3.17 quarts) of automatic transmission fluid to the transaxle.
CAUTION: To prevent damage to the transaxle, do not run the engine above idle.
13. Run the engine at idle and pump out 3 liters (3.17 quarts) of automatic transmission fluid.
14. Switch OFF the engine.
15. Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
16. Detach the length of suitable drain hose from the transmission fluid return hose.
NOTE: Remove the plug from the transmission fluid cooler return port.

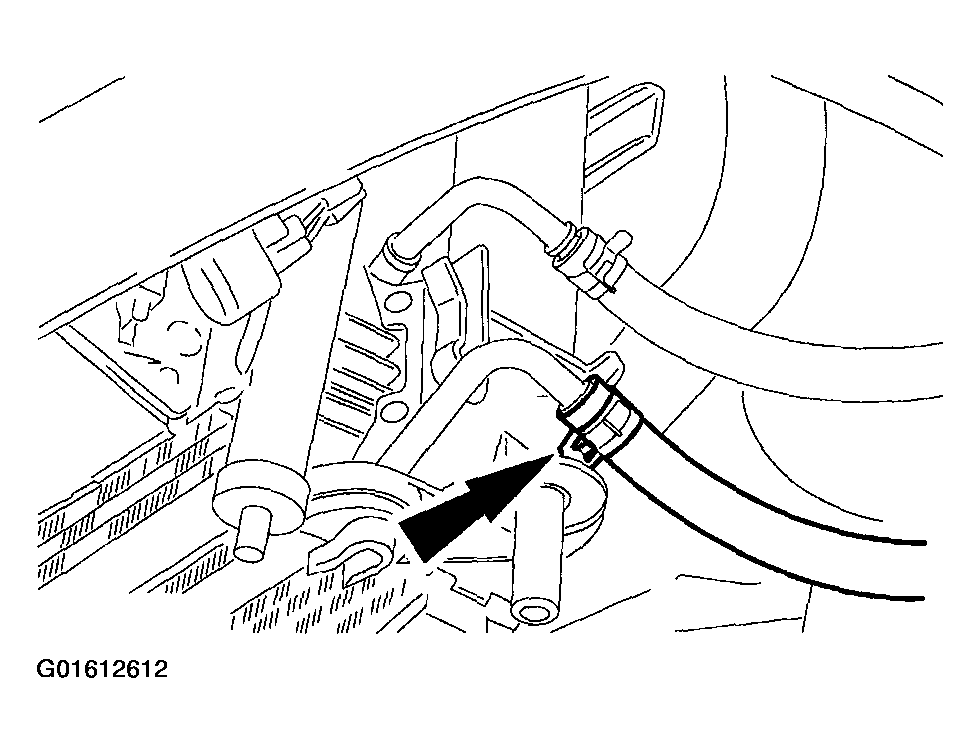

Fig 5: Connecting Return Hose To Transmission Fluid Cooler
Courtesy of FORD MOTOR CO.
17. Connect the return hose to the transmission fluid cooler.
18. Lower the vehicle.
19. Add 3 liters (3.17 quarts) of automatic transmission fluid to the transaxle.

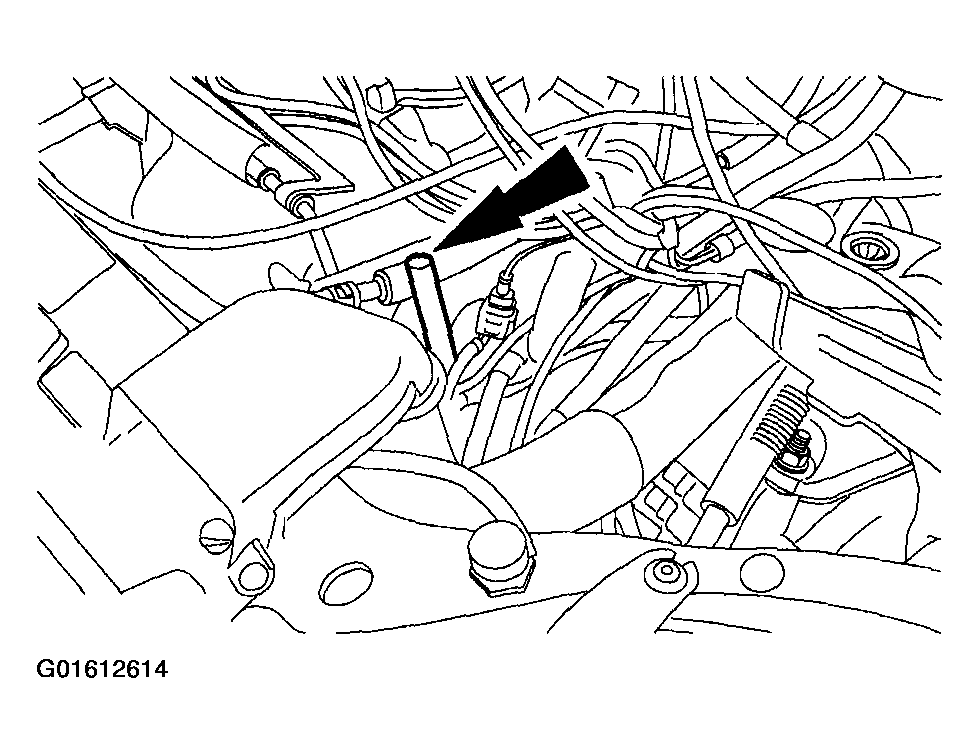

    Fig 6: Locating Fuel Level Indicator Tube

    Courtesy of FORD MOTOR CO.
20. Install the fluid level indicator to the fluid level indicator tube.
    Fig 7: Installing Fluid Level Indicator To Fluid Level Indicator Tube

    Courtesy of FORD MOTOR CO.
CAUTION: To prevent damage to the transaxle, do not run the engine above idle.
21. Run the engine.
22. Check the automatic transmission fluid level and fill if necessary.
