Powertrain Warning Indicator

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

The powertrain warning indicator is located in the instrument cluster and is colored orange.

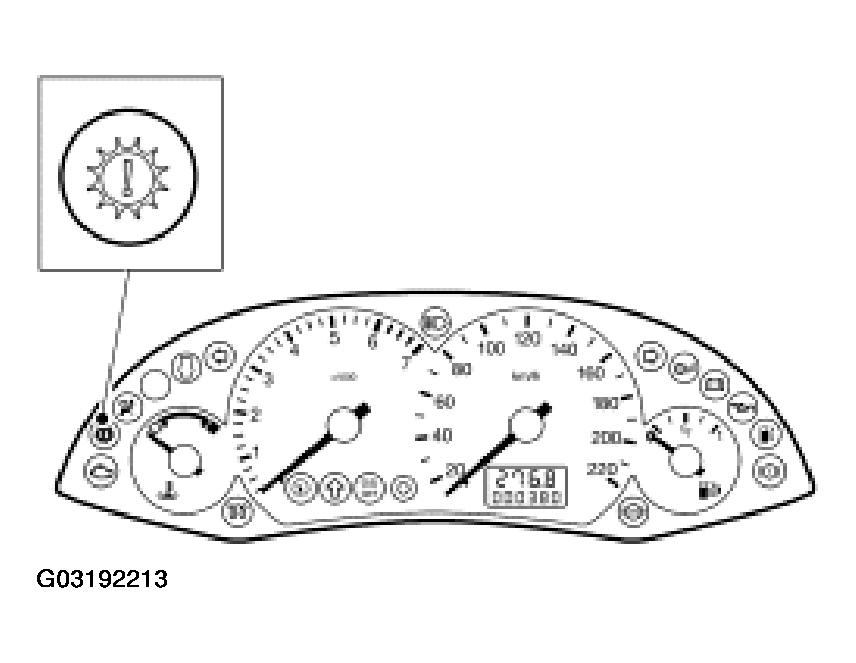

Fig 1: Identifying Powertrain Warning Indicator
G03192213Courtesy of FORD MOTOR CO.

It lights to tell the driver that the transmission control has switched to the emergency operating program or that the transmission fluid temperature is too high.
