Gearshift Lever: Disassembly

Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Shift the gearshift lever into the third gear.

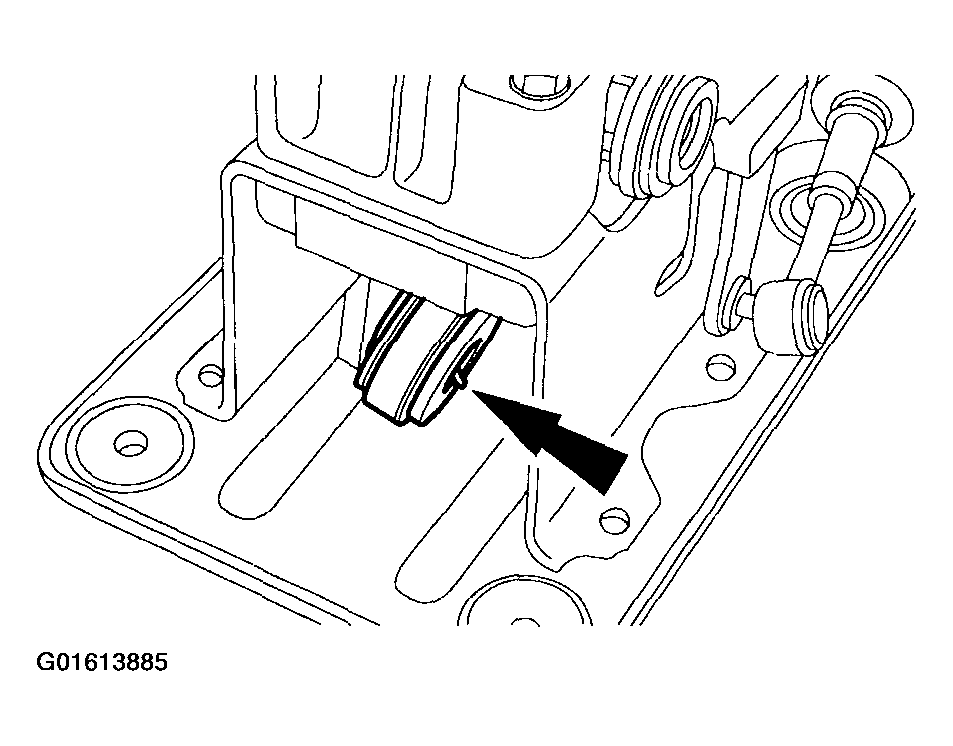

Detach the gearshift cable from the gearshift lever (gearshift linkage shown removed for clarity).

Fig 1: Installing Gearshift Cable
Courtesy of FORD MOTOR CO.

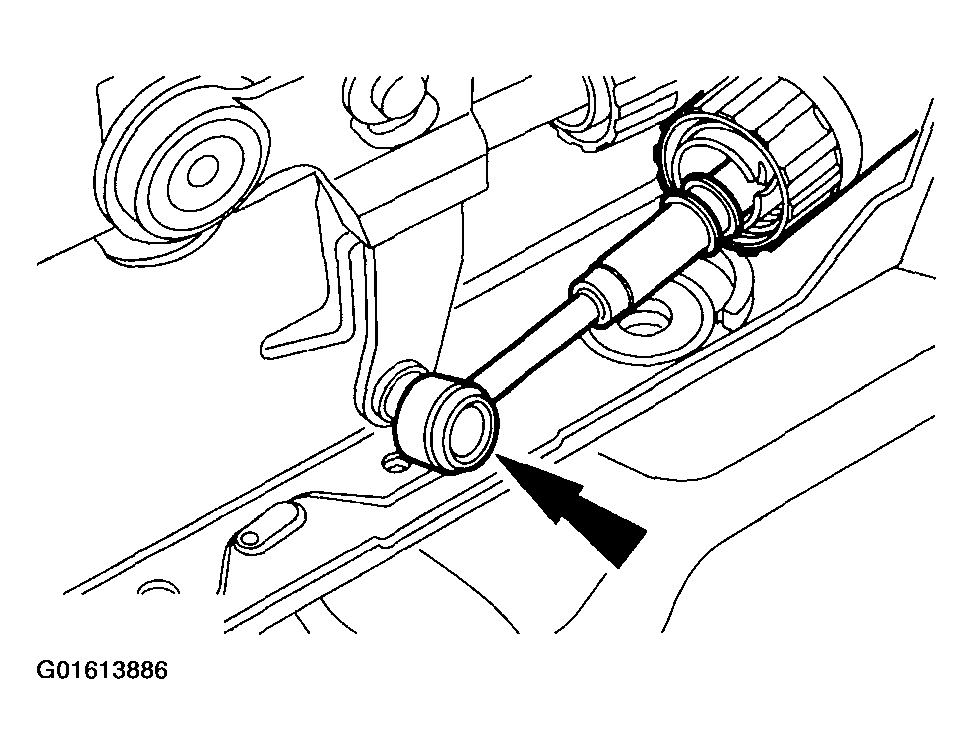

Detach the selector cable from the selector lever (gearshift linkage shown removed for clarity).

Fig 2: Detaching Selector Cable From Selector Lever
Courtesy of FORD MOTOR CO.

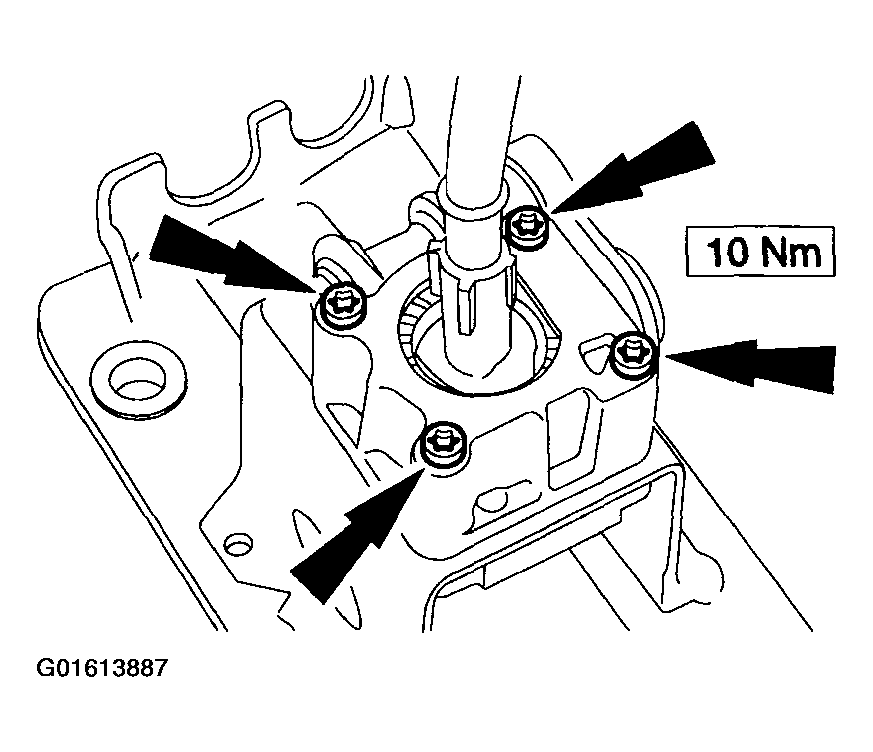

Remove the gearshift linkage upper housing retaining bolts (gearshift linkage shown removed for clarity).

Fig 3: Removing Gearshift Linkage Upper Housing Retaining Bolts
Courtesy of FORD MOTOR CO.

NOTE: Note the position of the retaining plate.

Fig 4: Removing Gearshift Linkage Upper Housing

Courtesy of FORD MOTOR CO.

Remove the gearshift linkage upper housing (gearshift linkage shown removed for clarity).
Remove the selector lever circlip.
- Discard the circlip.
- Remove the washer.

  Fig 5: Removing Selector Lever Circlip
  Courtesy of FORD MOTOR CO.
Remove the selector lever.

Fig 6: Removing Selector Lever
Courtesy of FORD MOTOR CO.
