Pinpoint Test A: External Controls Do Not Operate Freely

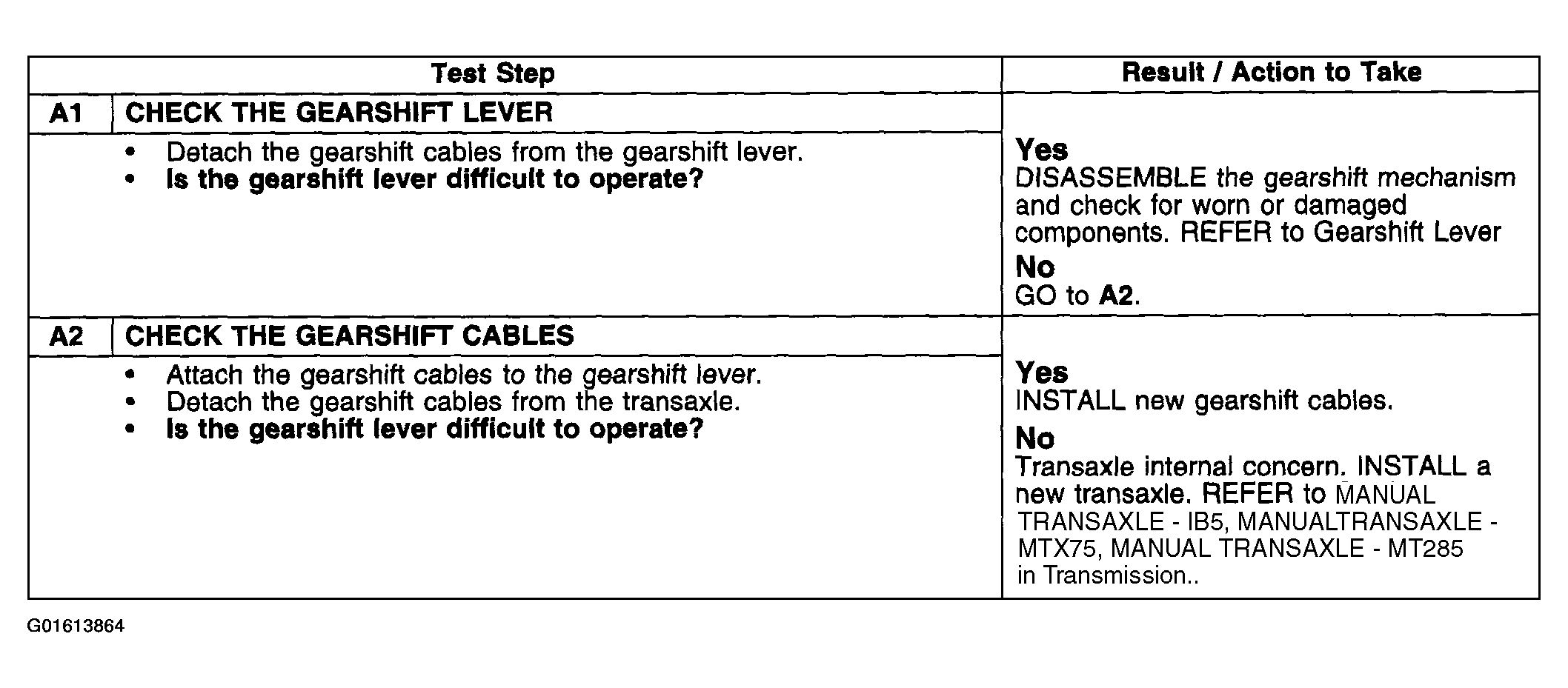

Fig 1: Pinpoint Test A: External Controls Do Not Operate Freely

G01613865

Courtesy of FORD MOTOR CO.
