Manual Transmission External Controls-Mt285
>>
Description And Operation
>>
External Controls
External Controls

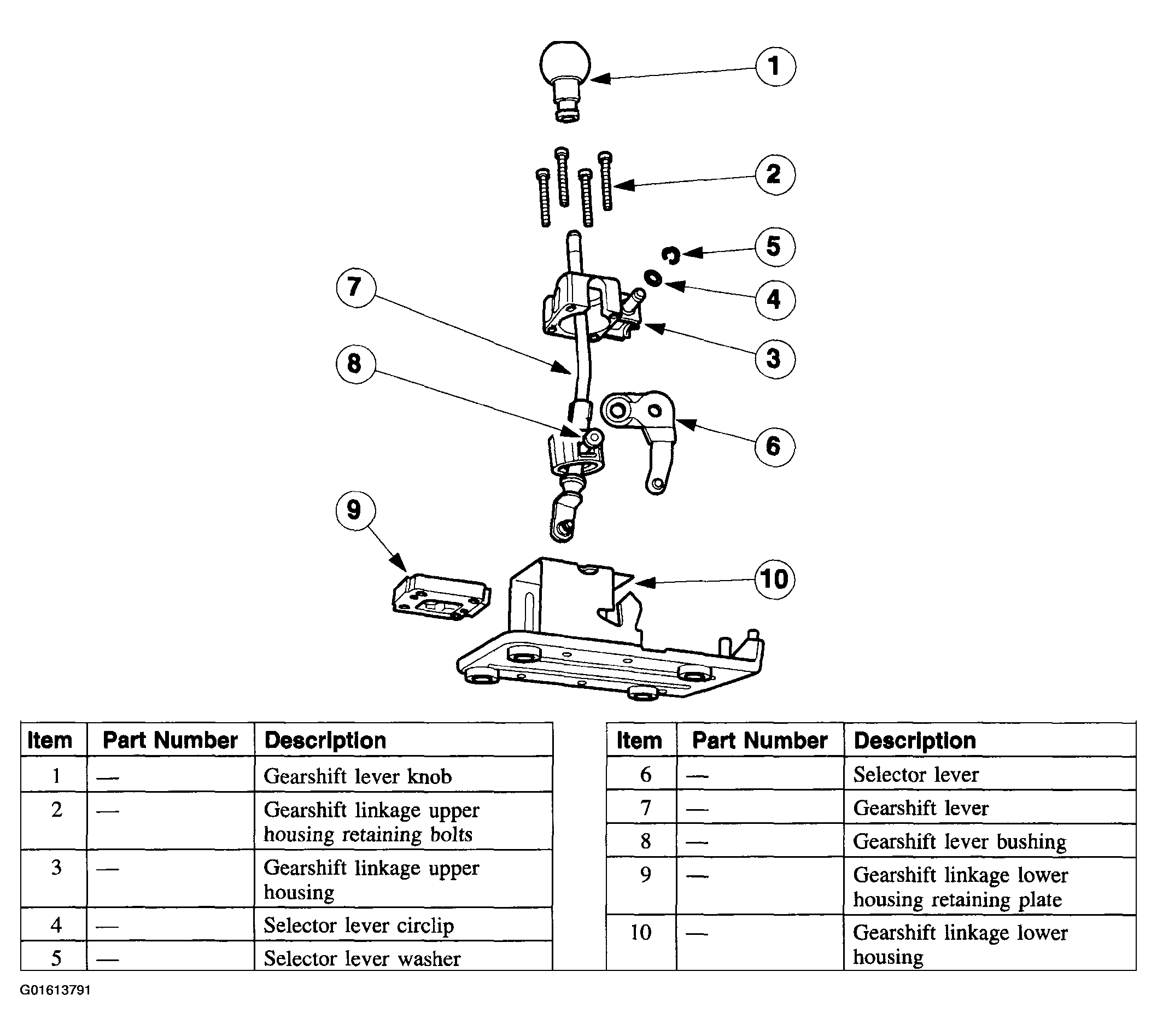

Fig 1: Identifying External Controls Components (1 Of 2)
Courtesy of FORD MOTOR CO.

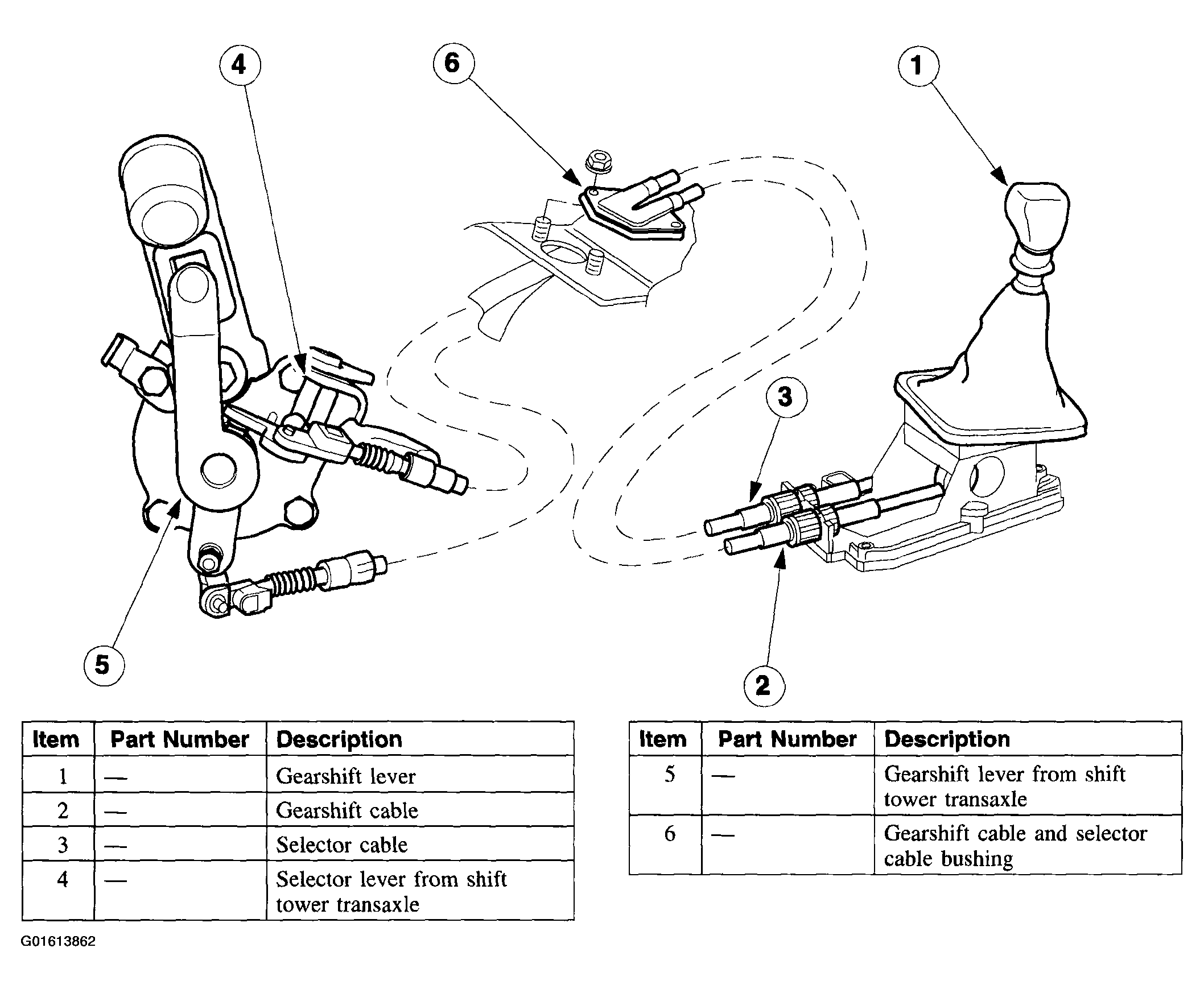

Fig 2: Identifying External Controls Components (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
