Timing Belt: Removal

WARNING: This page is about a different variant/trim than selected.

General Instructions.
- The positions of the engine mounting and the engine roll restrictor are described looking from the transmission towards the engine.
- If necessary, use Special Tool 412-108 to remove coolant and ventilation hoses.
- Owing to special model variants, some steps do not apply to all vehicles. These are clearly marked in the text.
- If necessary, cut the cable tie and install new on installation.

CAUTION: Disconnect the battery negative cable.

Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .

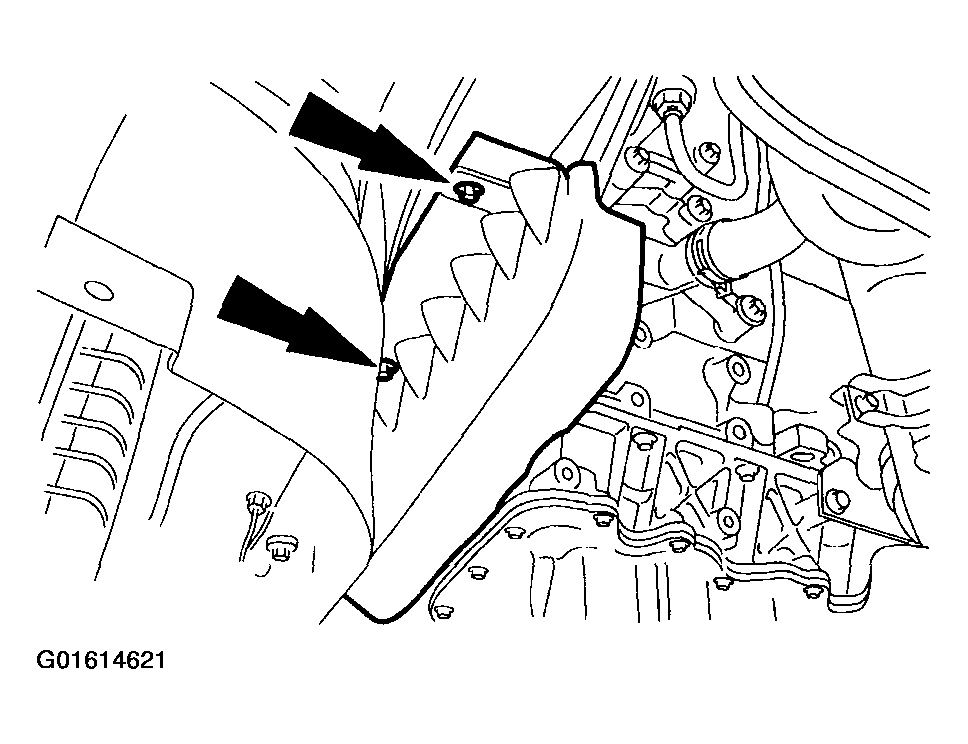

Detach the drive belt cover.

Fig 1: Detaching Drive Belt Cover
Courtesy of FORD MOTOR CO.

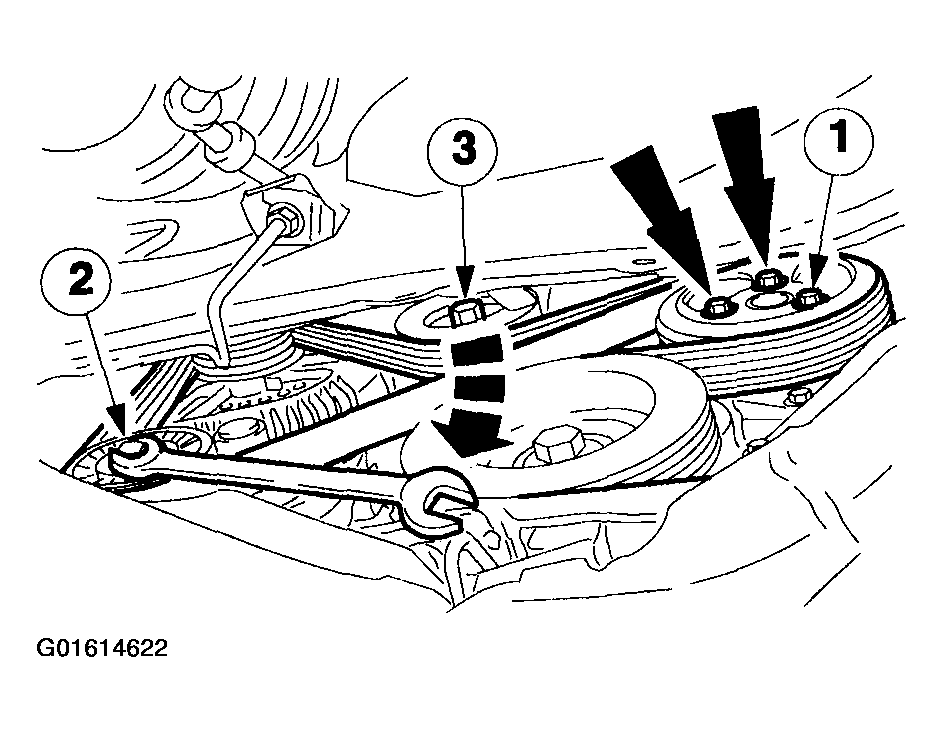

NOTE: Mark the drive belt running direction.

Remove the drive belt.
1. Loosen the bolts on the coolant pump pulley.
2. Slacken the drive belt by turning clockwise and remove it.
  - Detach the coolant pump belt pulley.
3. Detach the multi-groove belt idler pulley.

  Fig 2: Removing Drive Belt
  Courtesy of FORD MOTOR CO.

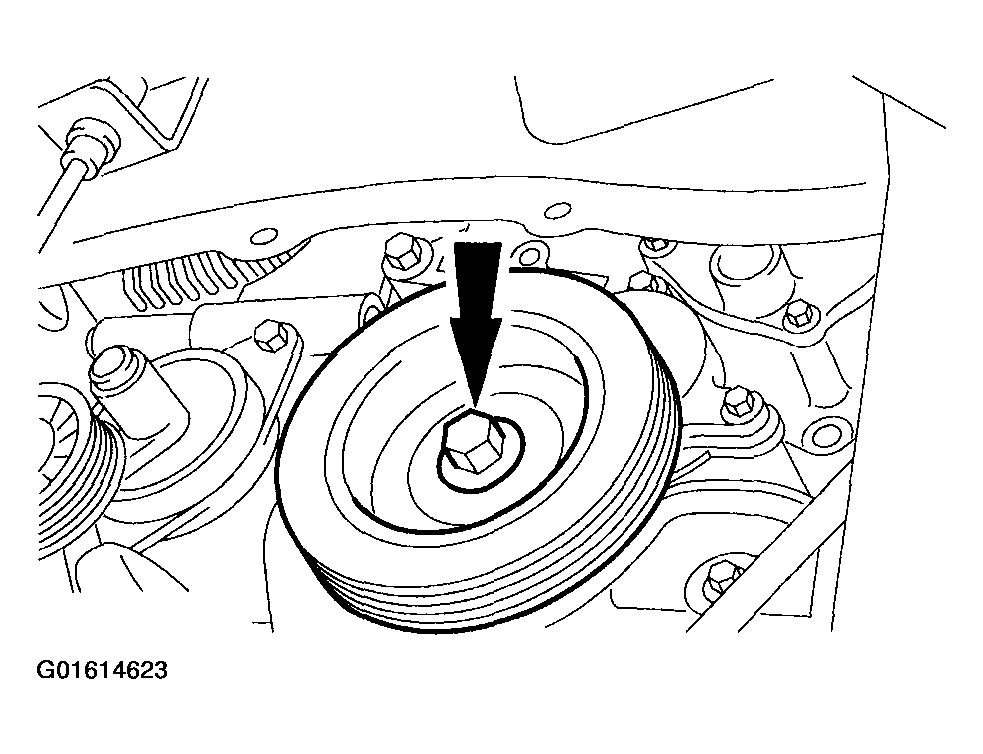

Detach the crankshaft pulley/vibration damper.

Fig 3: Detaching Crankshaft Pulley/Vibration Damper
Courtesy of FORD MOTOR CO.

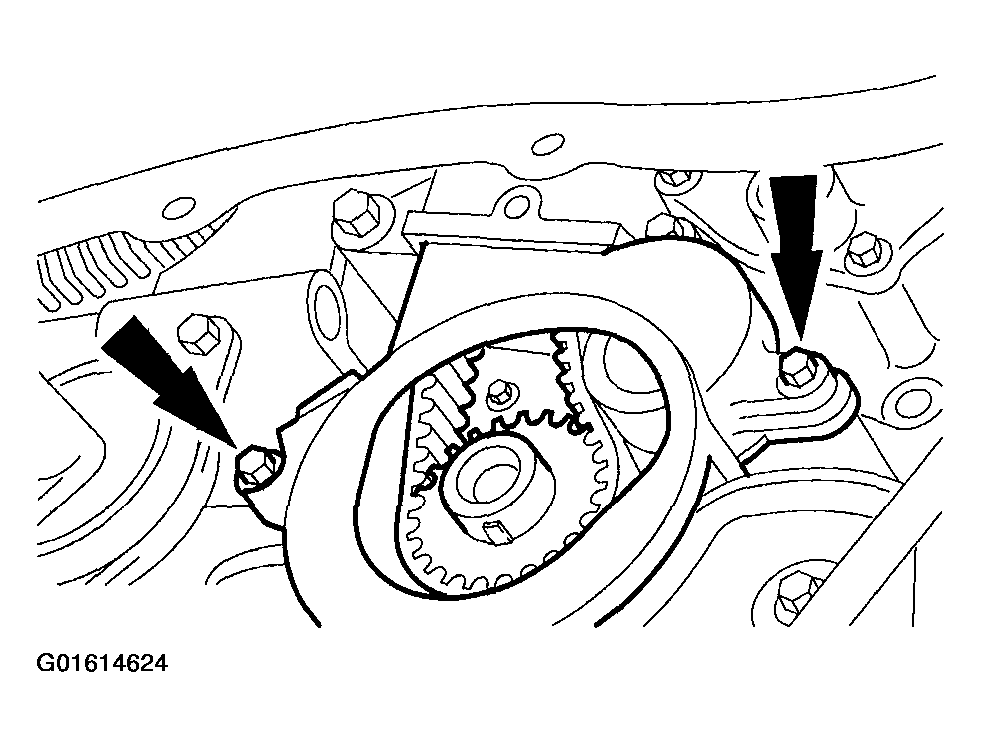

CAUTION: The removal of the lower part of the engine front cover is necessary to avoid damage to the timing belt.

Fig 4: Detaching Lower Timing Belt Cover

Courtesy of FORD MOTOR CO.

Detach the lower timing belt cover.
Lower the vehicle.

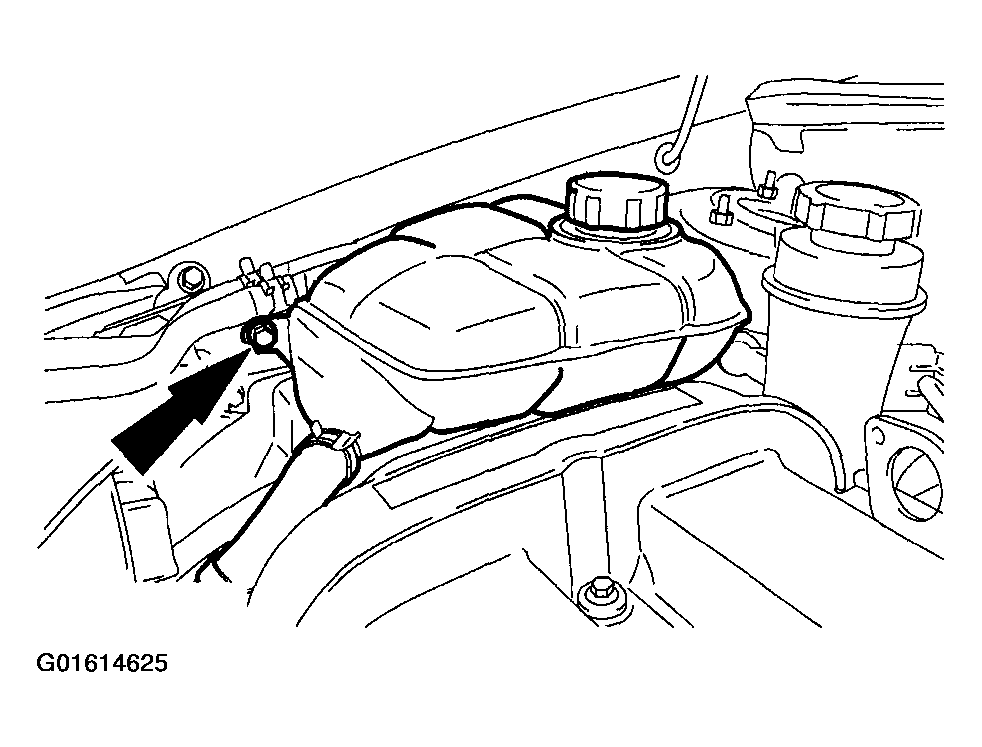

Detach the coolant expansion tank and lay it to one side.

Fig 5: Detaching Coolant Expansion Tank
Courtesy of FORD MOTOR CO.

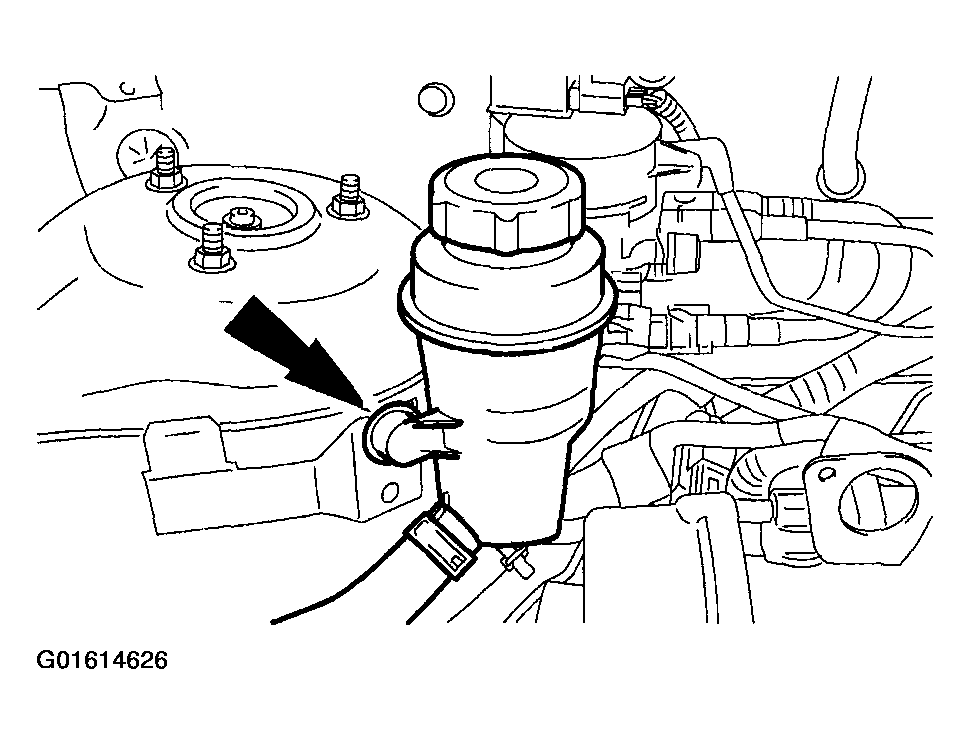

Remove the PAS reservoir and lay it to one side.

Fig 6: Removing PAS Reservoir
Courtesy of FORD MOTOR CO.

CAUTION: Insert the wooden block between the oil pan and the jack.

Position the jack with the wooden block under the oil pan and raise so that the front engine mounting is free from load.

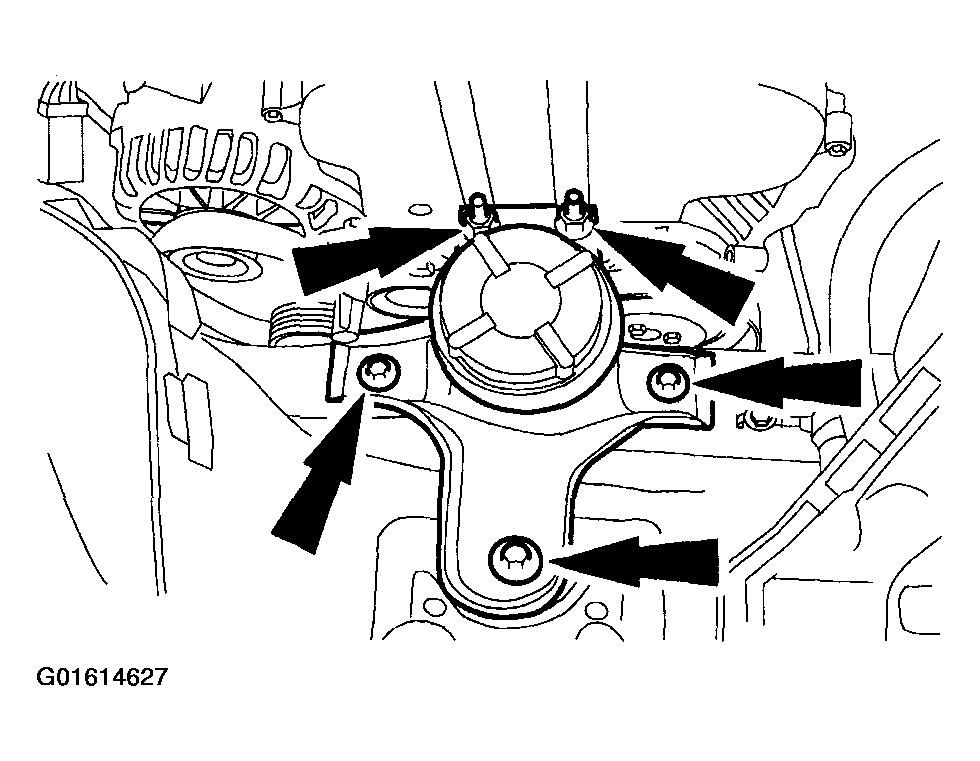

NOTE: Mark the position of the engine mounting.

Fig 7: Removing Front Engine Mounting

Courtesy of FORD MOTOR CO.

Remove the front engine mounting.
Detach the timing belt upper cover.
- Leave the timing belt cover in its installed position.

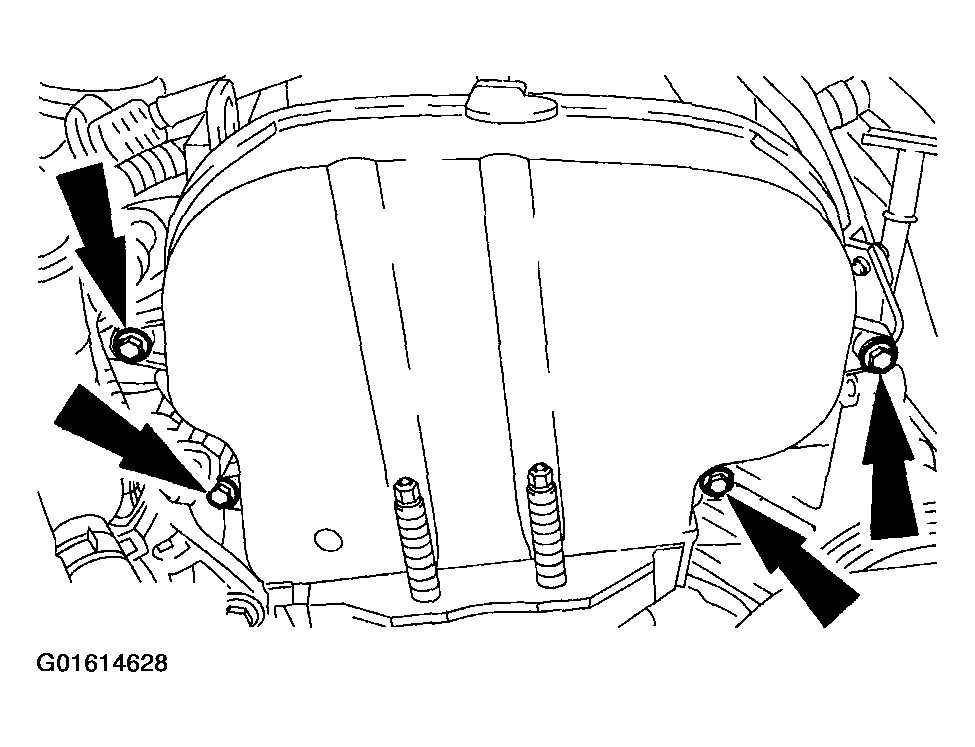

  Fig 8: Detaching Timing Belt Upper Cover
  Courtesy of FORD MOTOR CO.

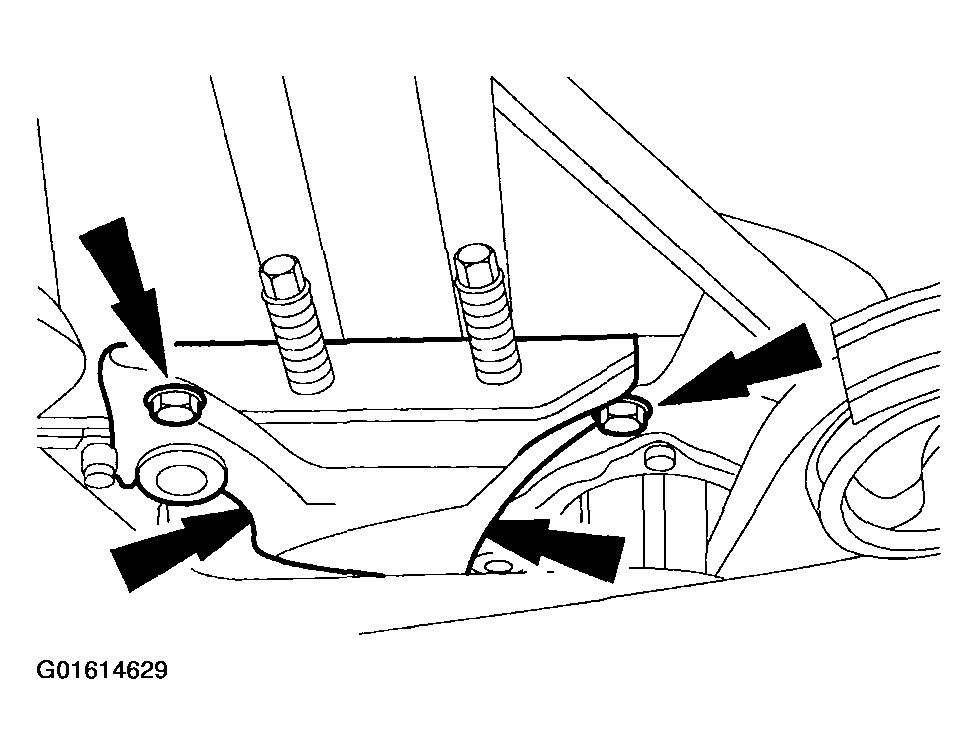

Detach the timing belt center cover/front engine mounting bracket.
- Remove the timing belt upper cover.

  Fig 9: Detaching Timing Belt Center Cover/Front Engine Mounting Bracket
  Courtesy of FORD MOTOR CO.

CAUTION: Do not pull the cable when removing the spark plug connectors. If necessary, remove the ignition cables from the ignition coil to avoid kinking the cables. Turn the spark plug connectors slightly before removing to loosen the seal.

CAUTION: Pull off the spark plug connectors in line with the spark plugs.

NOTE: Loosening sequence: from the outside to the inside, working diagonally.

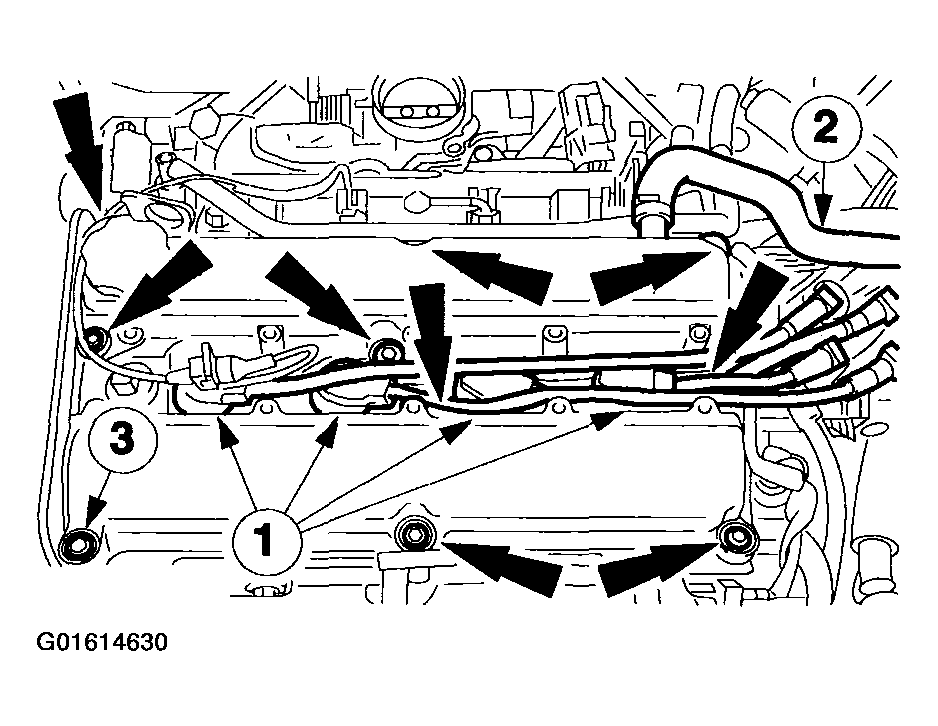

Remove the cylinder head cover.
1. Pull off the spark plug connectors.
2. Detach the PCV hose.
3. Remove ten bolts.

  Fig 10: Removing Cylinder Head Cover
  Courtesy of FORD MOTOR CO.
Remove the spark plugs.
Turn the engine to TDC on cylinder number 1.

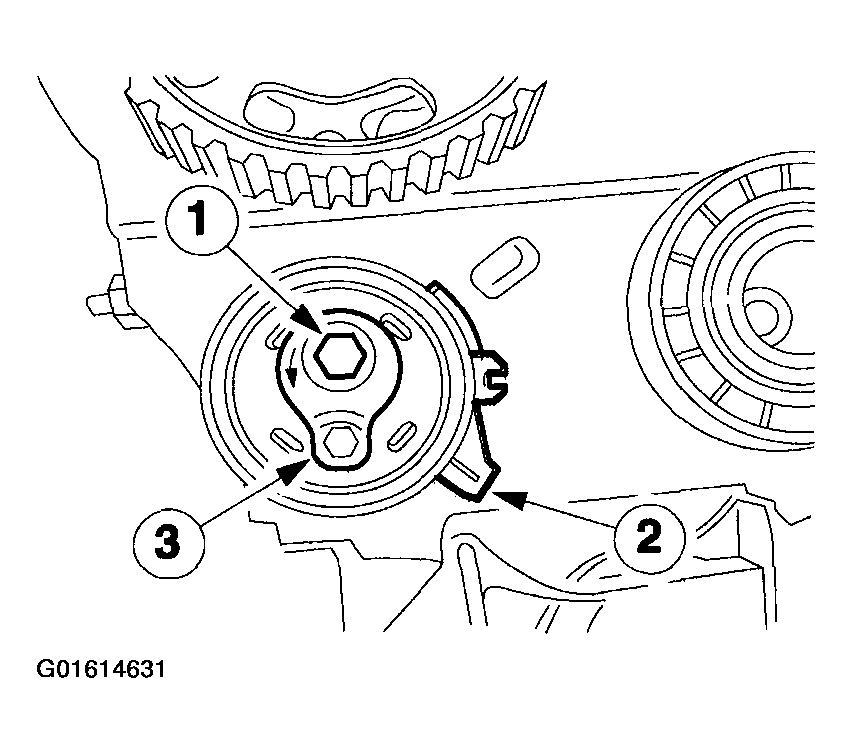

Detension the timing belt.
1. Unscrew the bolt four turns.
2. Position the tensioner so the locating tab is at approximately the 4 o'clock position.
3. Line up the hex key slot in the tensioner adjusting washer with the pointer that is located behind the pulley.

  Fig 11: Detensioning Timing Belt
  Courtesy of FORD MOTOR CO.
Remove the timing belt.

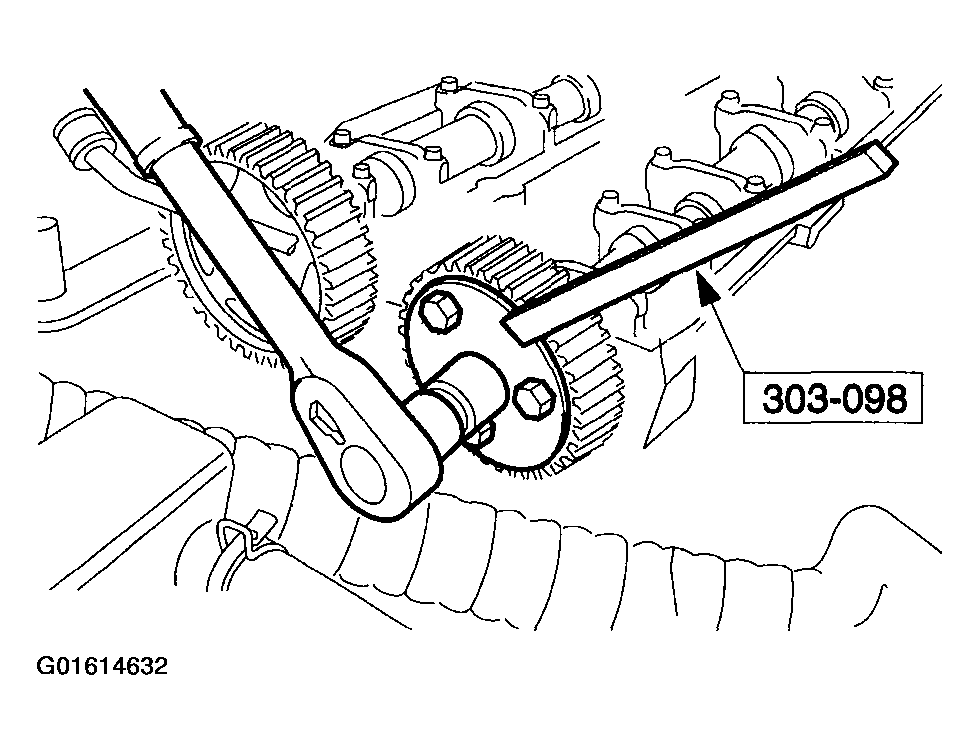

Slacken the camshaft timing pulleys.
- Prevent from turning using the special tool.

  Fig 12: Slackening Camshaft Timing Pulleys
  Courtesy of FORD MOTOR CO.
