In-Vehicle Repair: Camshafts: Removal

  1. Remove the timing belt. For additional information, refer to TIMING BELT .
    2. NOTE: Hold the camshafts by the hexagon with an open ended wrench to stop them from rotating.

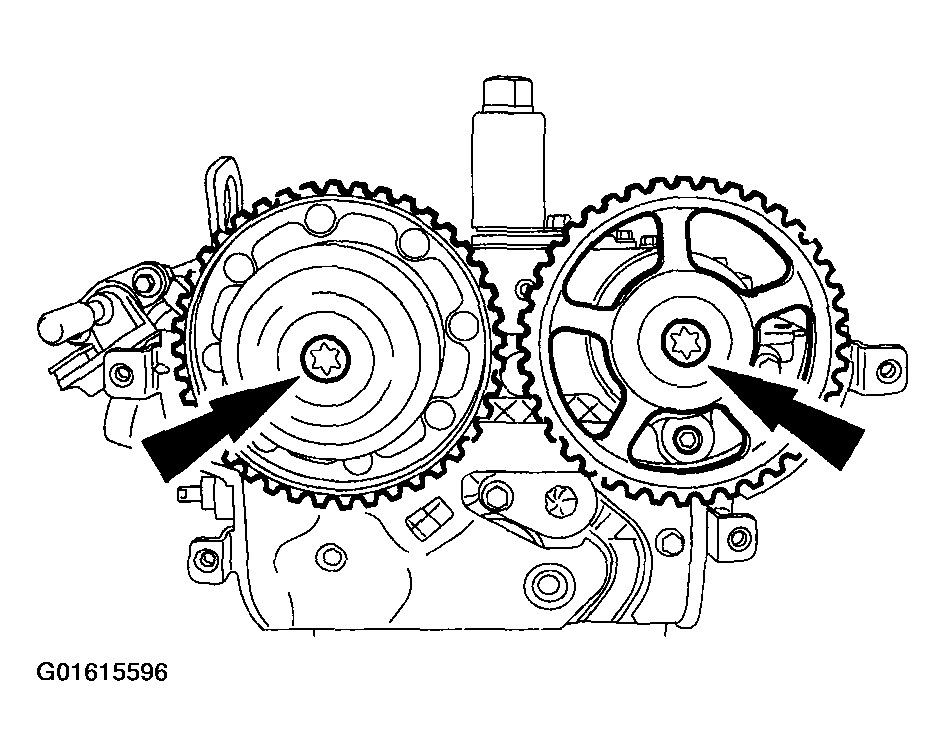

    Fig 1: Removing Camshaft Pulleys
    G01615596Courtesy of FORD MOTOR CO.
  2. Remove the camshaft pulleys.
  3. Remove the oil feed flange.
    • Discard the camshaft oil seals.
    • Discard the oil feed flange oil seal.

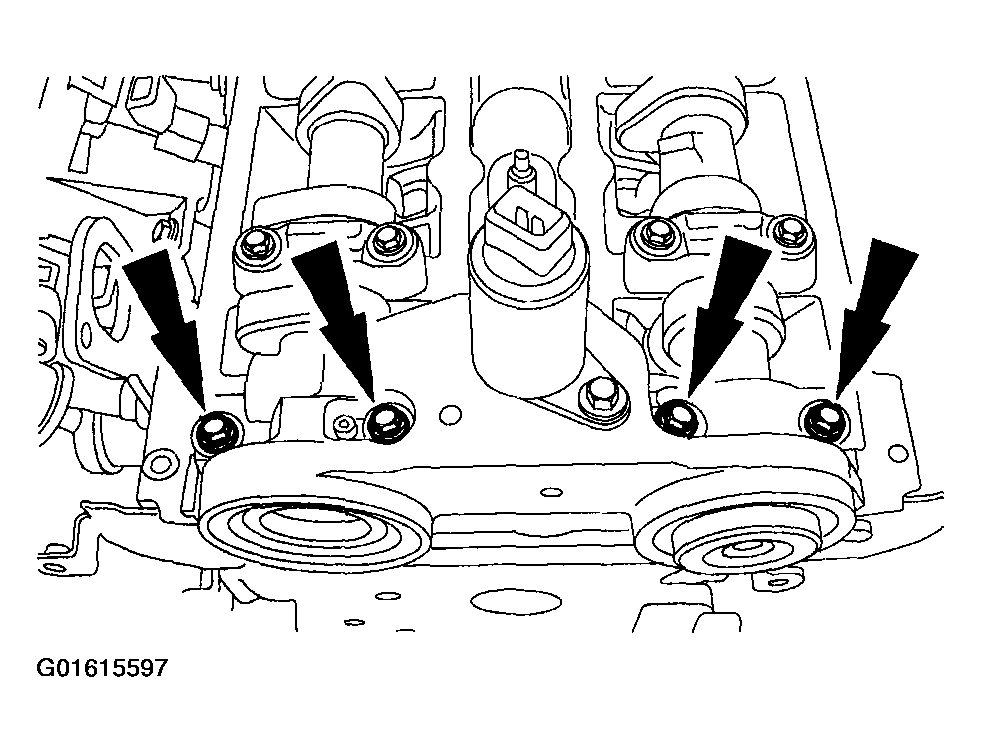

      Fig 2: Removing Oil Feed Flange
      G01615597Courtesy of FORD MOTOR CO.
    4. CAUTION: Loosen the camshaft bearing caps in the sequence shown.
    NOTE: Working in several stages, evenly loosen each bolt two turns at a time in the indicated sequence and remove the bolts.

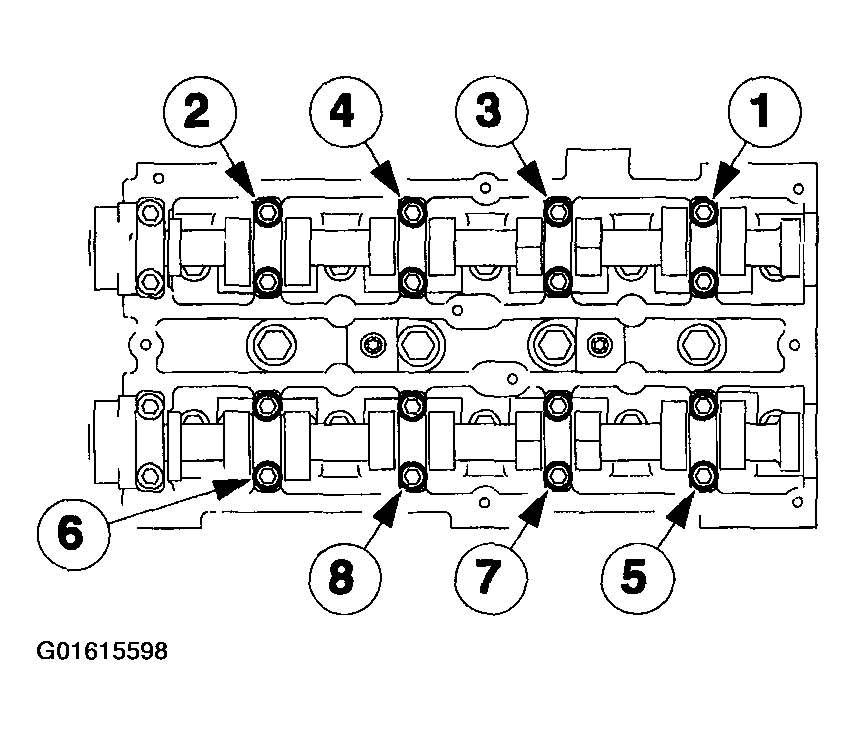

    Fig 3: Camshafts Bolts Removal Sequence
    G01615598Courtesy of FORD MOTOR CO.
  4. Remove the camshafts.
