Home >> Ford >> 2003 >> Focus SVT, 2D Hatchback >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Engine-SVT >> Disassembly >> Engine >> Special Tool(s)

Special Tool(s)

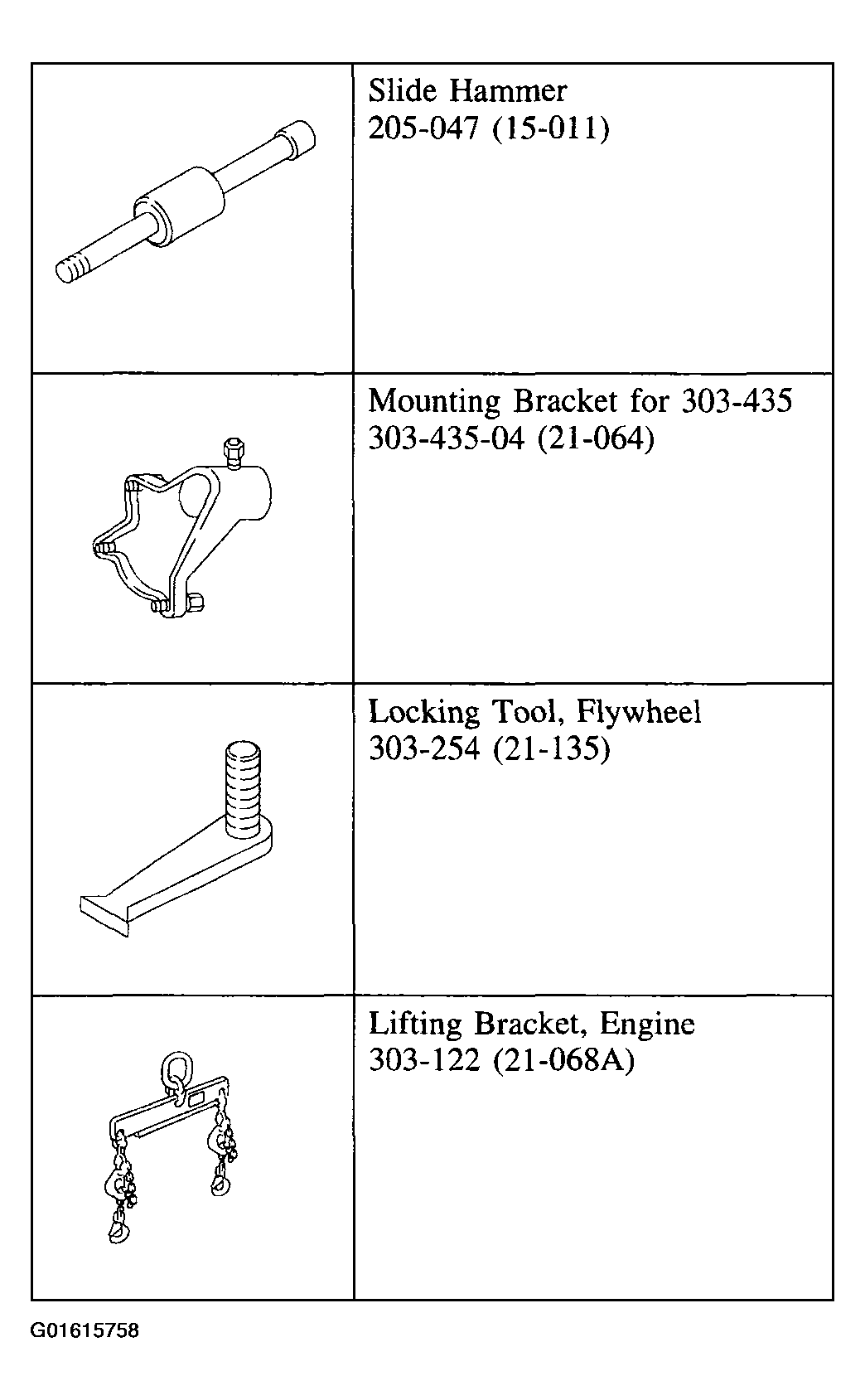

Fig 1: Identifying Special Tools - Engine - Disassembly (1 Of 2)

G01615758

Courtesy of FORD MOTOR CO.

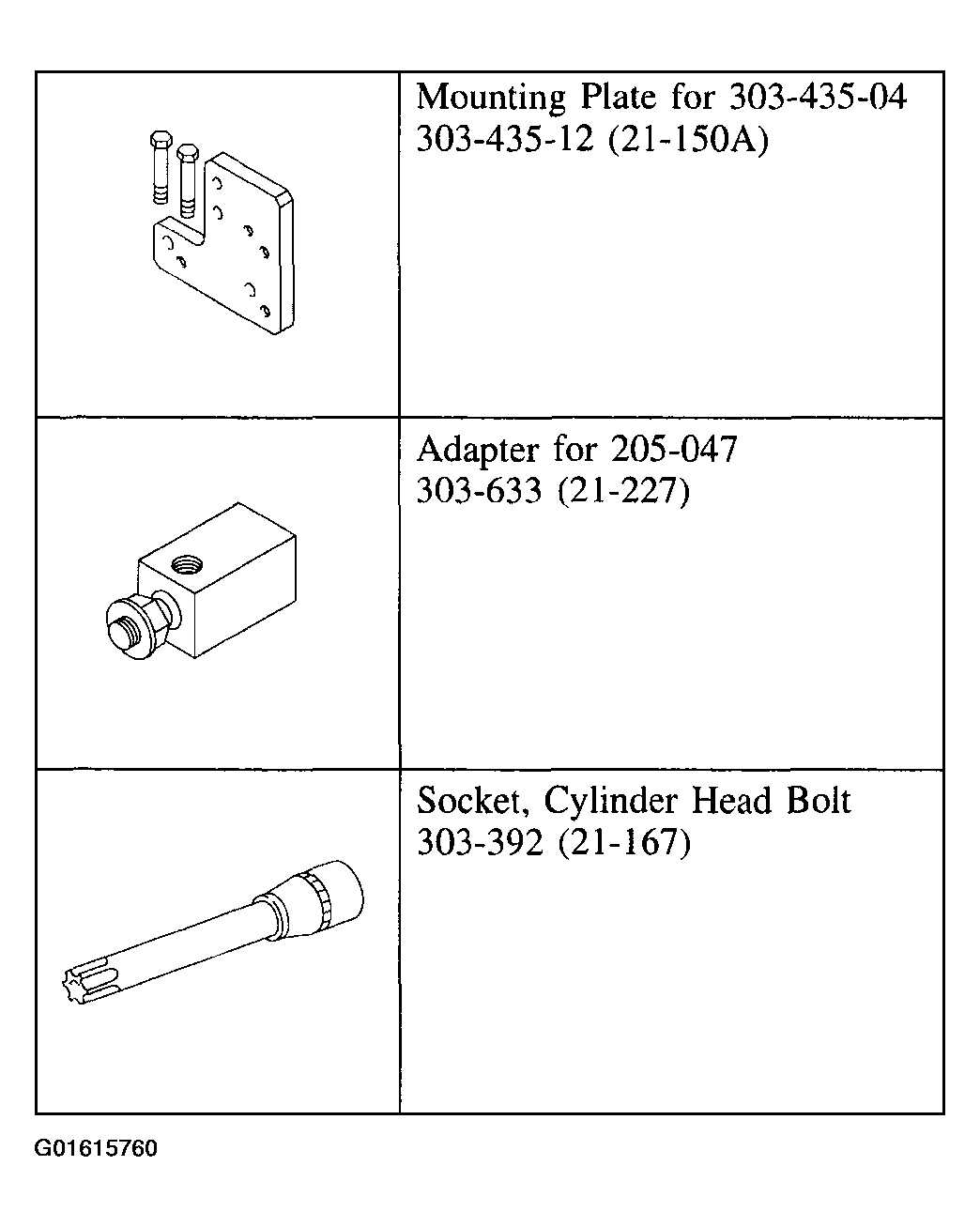

Fig 2: Identifying Special Tools - Engine - Disassembly (2 Of 2)

G01615760

Courtesy of FORD MOTOR CO.
