General Equipment

Fig 1: Cylinder Head Distortion Measuring General Equipment Index
G01614520Courtesy of FORD MOTOR CO.
  1. Using a straightedge and feeler gauge, measure the cylinder head distortion.
    • Measure the mating face distortion.
    • If the value is not to specification, rework the mating face.

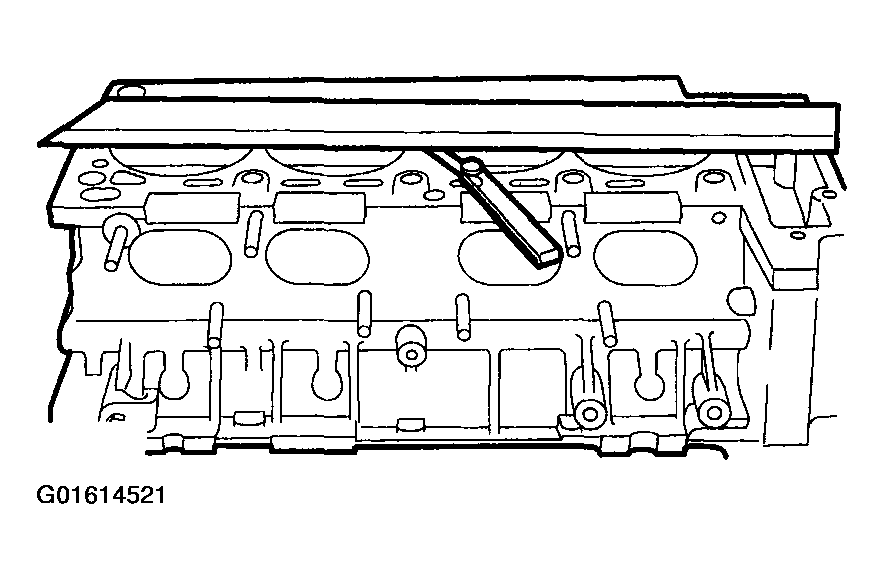

      Fig 2: Measuring Cylinder Head Distortion
      G01614521Courtesy of FORD MOTOR CO.
