Pinpoint Test A: No Communication With Traction Control Module

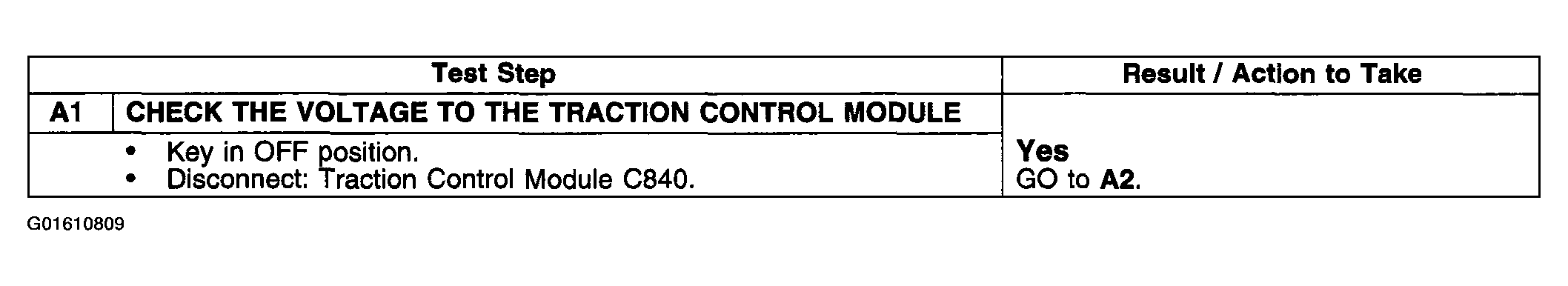

Fig 1: Pinpoint Test A: No Communication With Traction Control Module (A1)
G01610809Courtesy of FORD MOTOR CO.

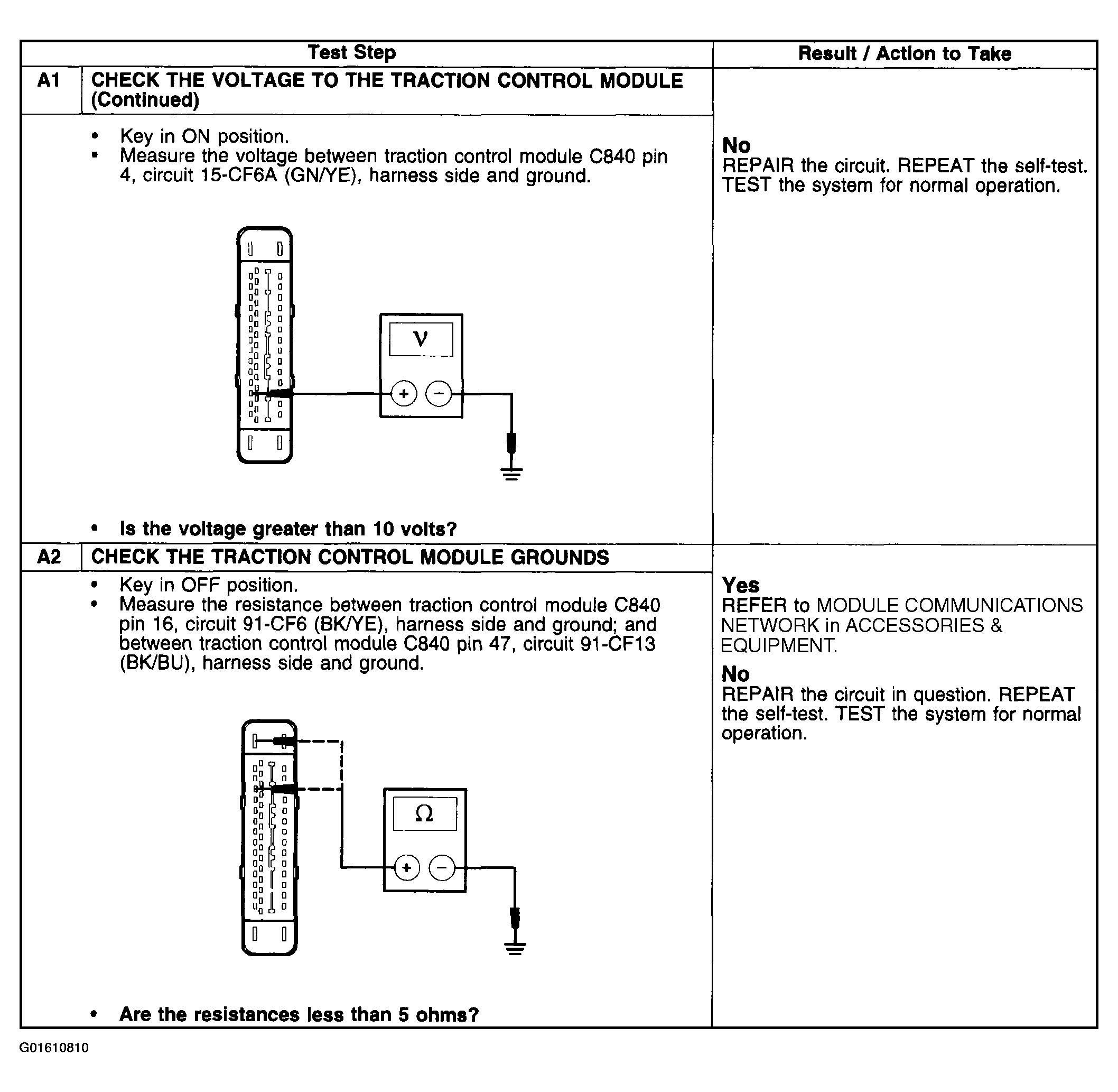

Fig 2: Pinpoint Test A: No Communication With Traction Control Module (A1 Cont.-A2)
G01610810Courtesy of FORD MOTOR CO.
