Speed Control Cable-2.0L: Removal

All Vehicles

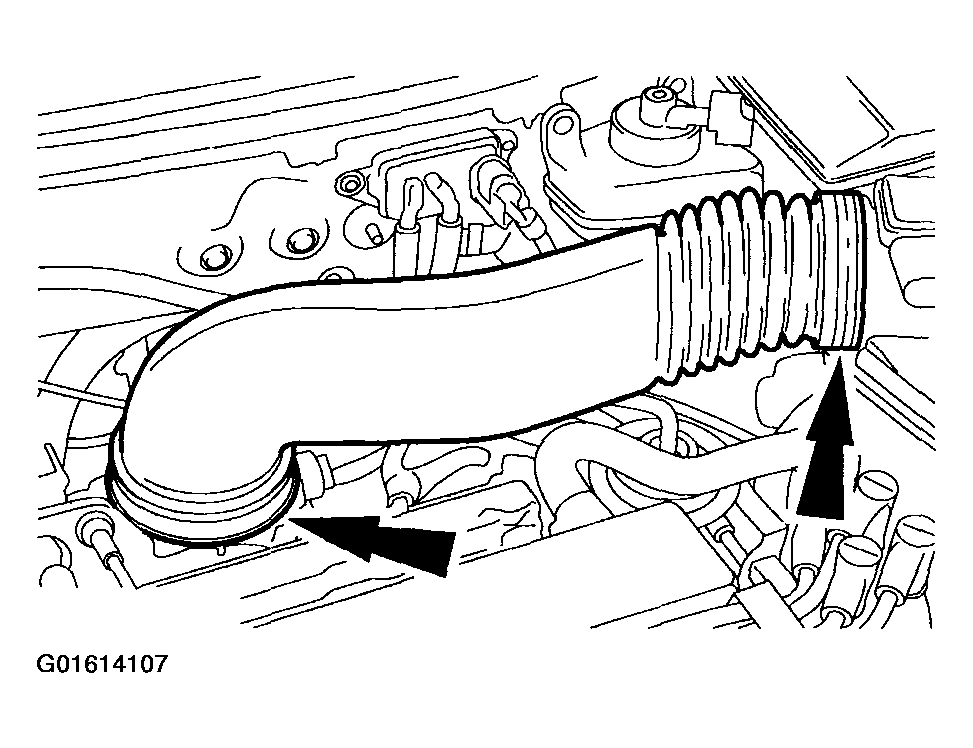

Remove the air cleaner outlet tube.

Fig 1: Removing Air Cleaner Outlet Tube

Courtesy of FORD MOTOR CO.

Vehicles Built Before 08/2002

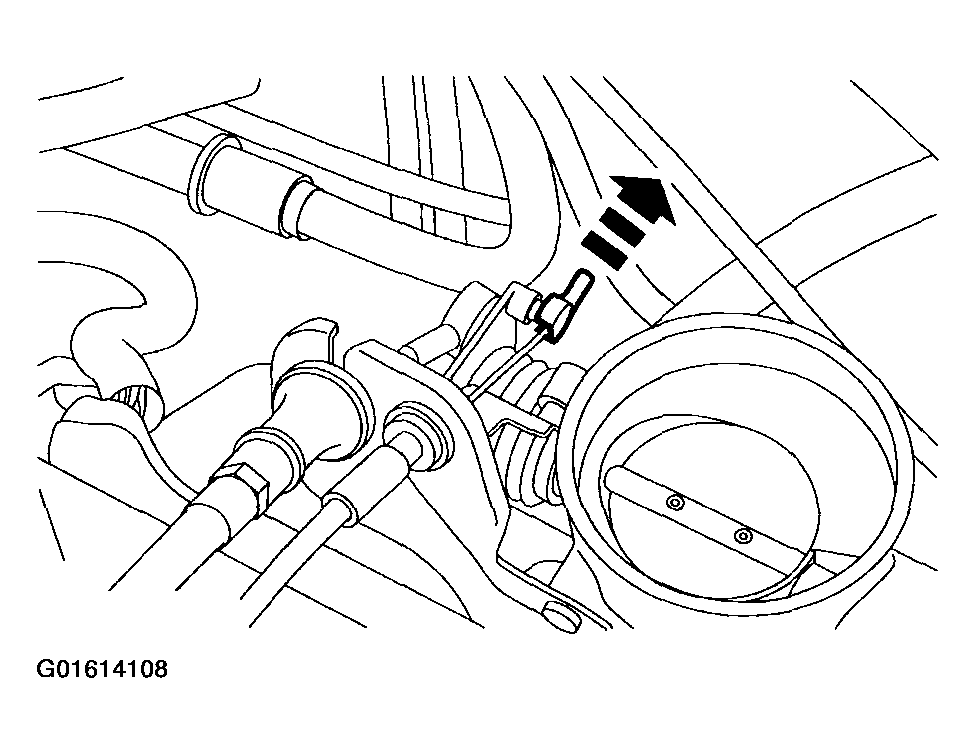

Disconnect the speed control cable from the throttle body.

Fig 2: Disconnecting Speed Control Cable From Throttle Body

Courtesy of FORD MOTOR CO.

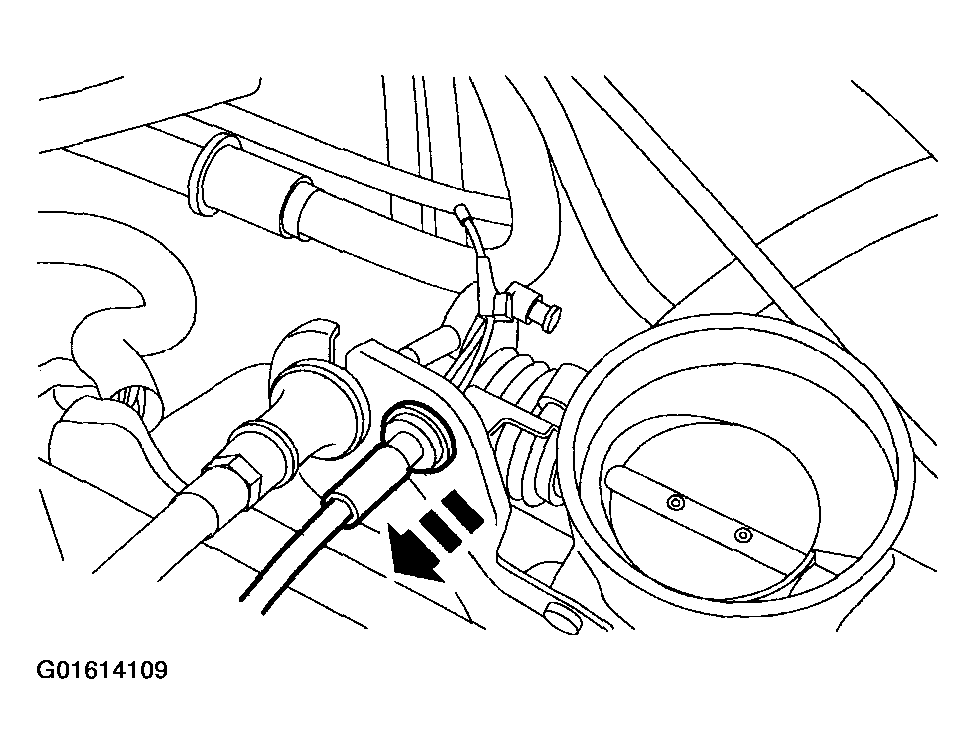

Disconnect the speed control cable from the throttle body bracket.

Fig 3: Disconnecting Speed Control Cable From Throttle Body Bracket

Courtesy of FORD MOTOR CO.

Vehicles Built After 08/2002

Disconnect the speed control cable from the throttle body.

Fig 4: Disconnecting Speed Control Cable From Throttle Body

Courtesy of FORD MOTOR CO.

Disconnect the speed control cable from the throttle body bracket.

Fig 5: Disconnecting Speed Control Cable From Throttle Body Bracket

Courtesy of FORD MOTOR CO.

All Vehicles

Disconnect the speed control cable from the two clips.

Fig 6: Disconnecting Speed Control Cable From Two Clips

Courtesy of FORD MOTOR CO.

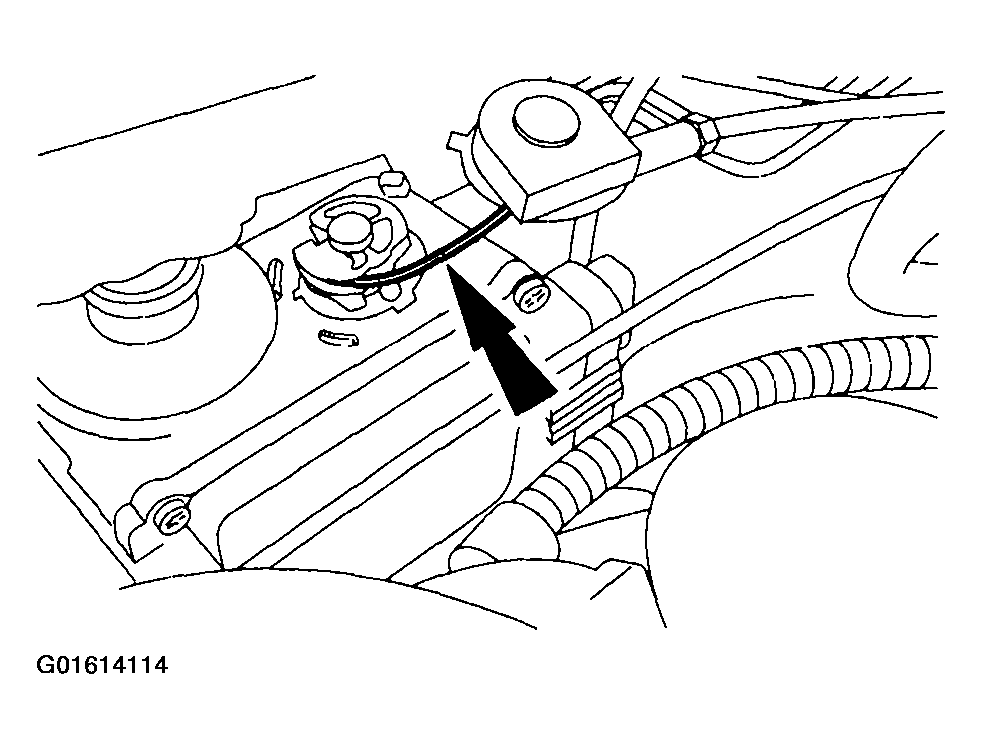

Remove the speed control cable from the speed control actuator pulley.

Fig 8: Removing Speed Control Cable From Speed Control Actuator Pulley

Courtesy of FORD MOTOR CO.
