Torque Specifications

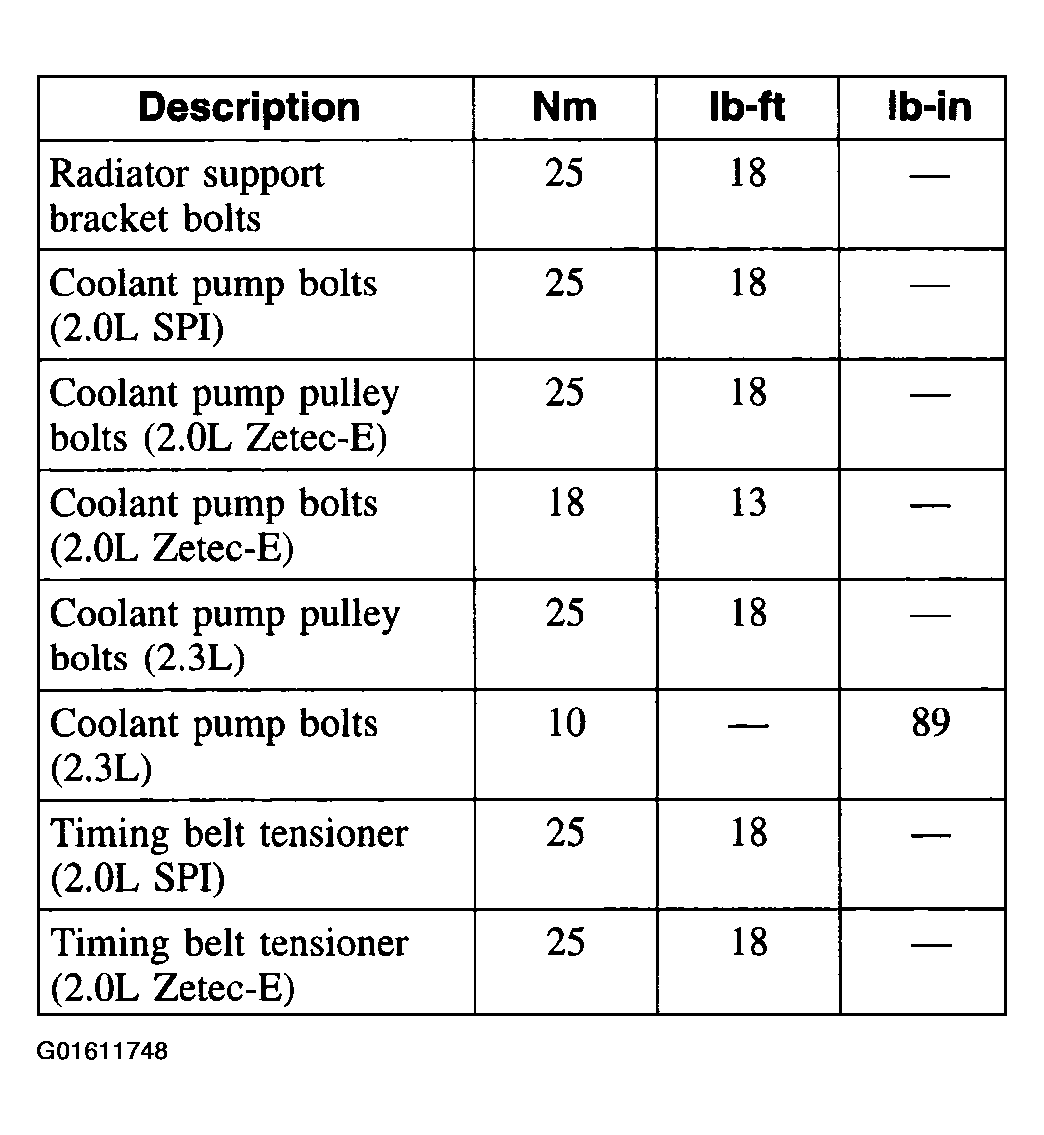

Fig 1: Engine Cooling Torque Specifications (1 Of 2)

G01611748

Courtesy of FORD MOTOR CO.

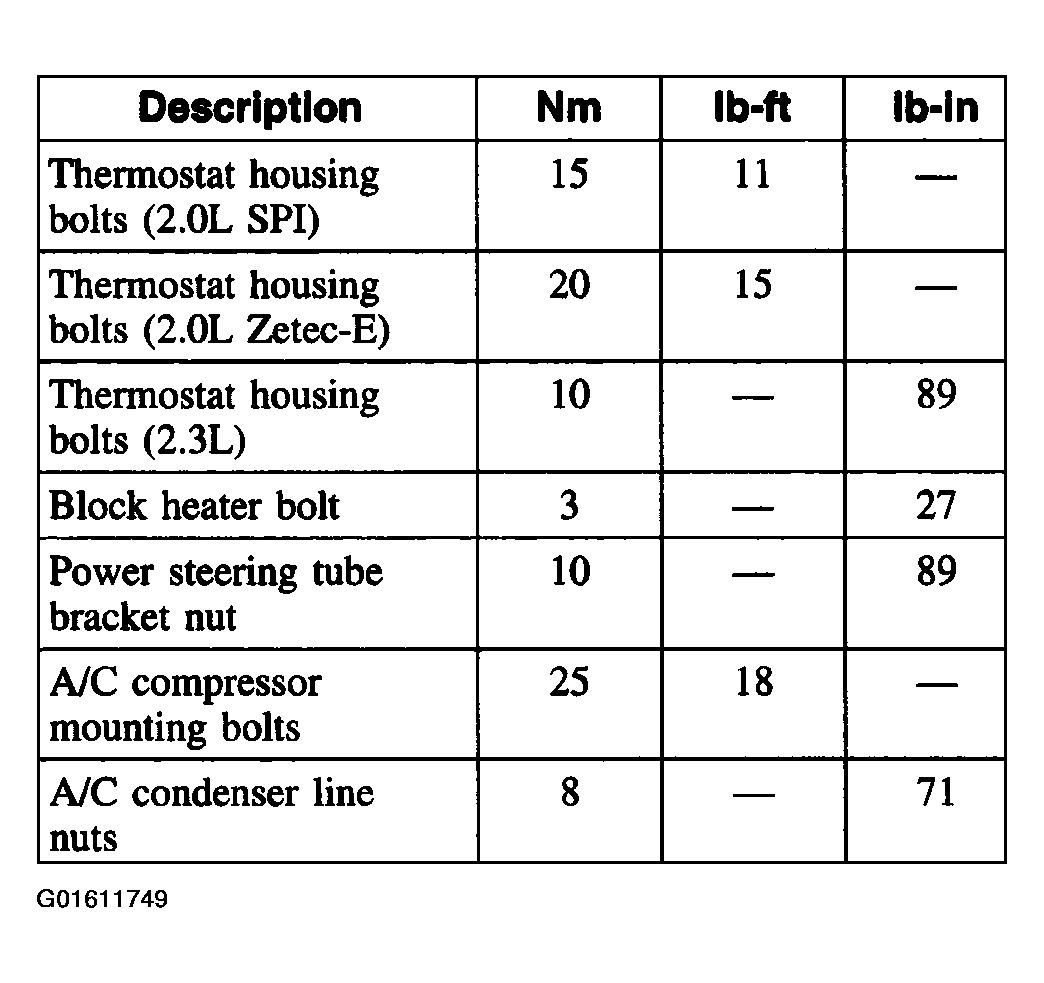

Fig 2: Engine Cooling Torque Specifications (2 Of 2)

G01611749

Courtesy of FORD MOTOR CO.
