Solenoid Operation Chart - Converter Disengaged

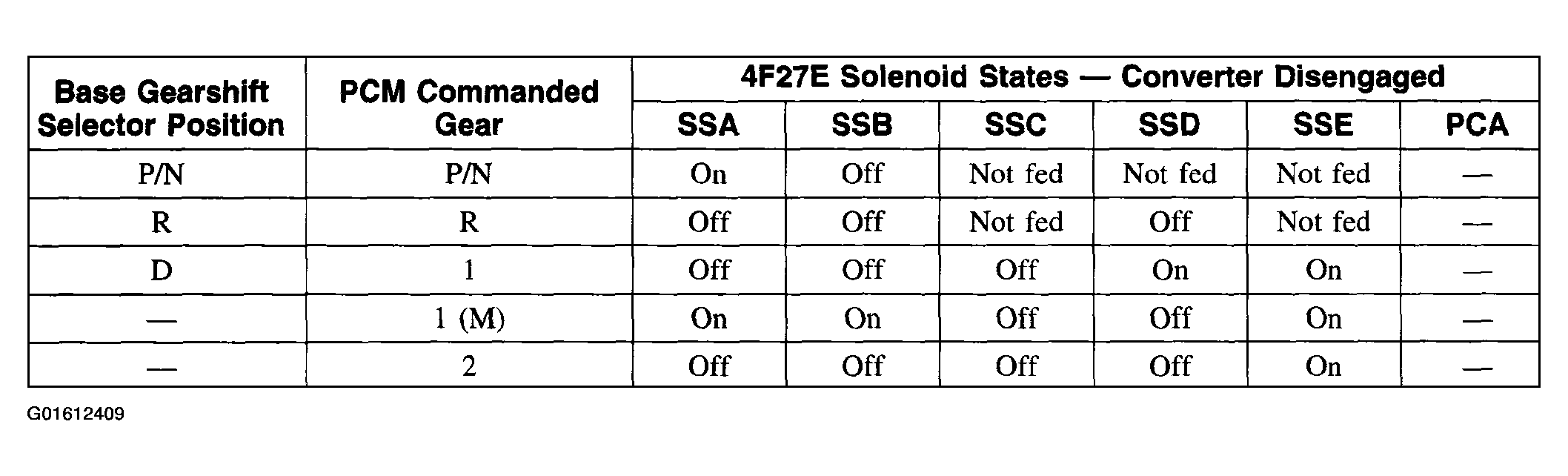

Fig 1: Solenoid Operation Chart - Converter Disengaged (1 Of 2)
G01612409Courtesy of FORD MOTOR CO.

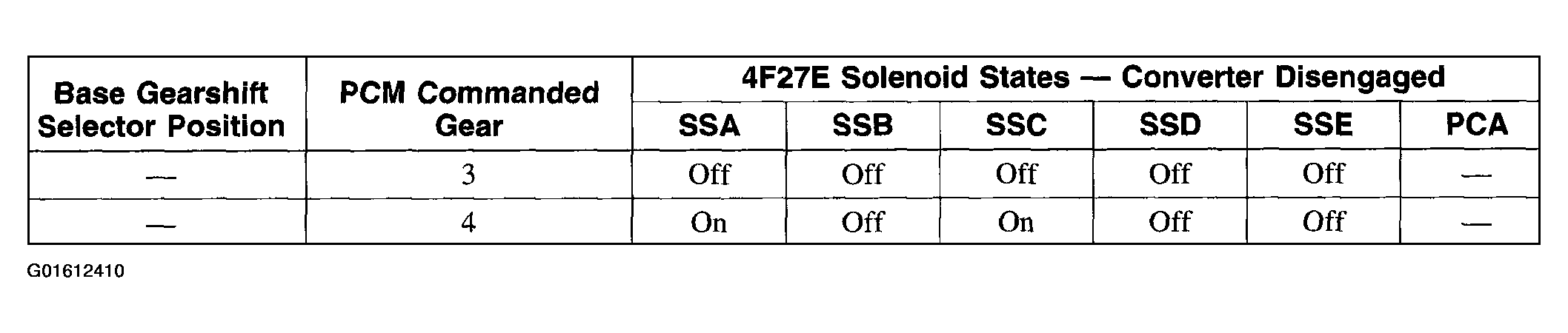

Fig 2: Solenoid Operation Chart - Converter Disengaged (2 Of 2)
G01612410Courtesy of FORD MOTOR CO.
