Differential Assembly and Final Drive Input

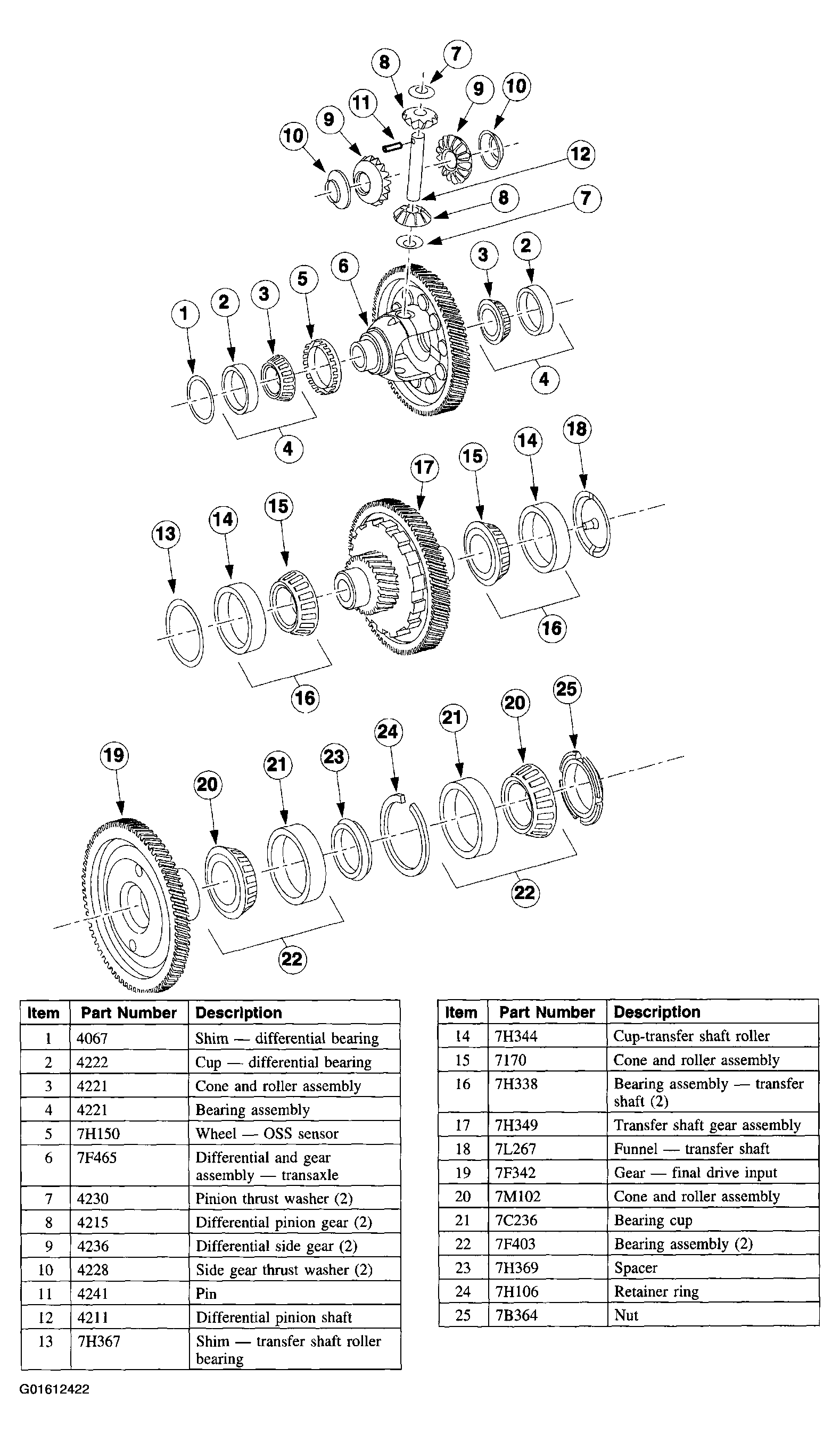

Fig 1: Identifying Components Of Differential Assembly And Final Drive Input

G01612422

Courtesy of FORD MOTOR CO.
