Manual Selector Lever Shift Lock Solenoid

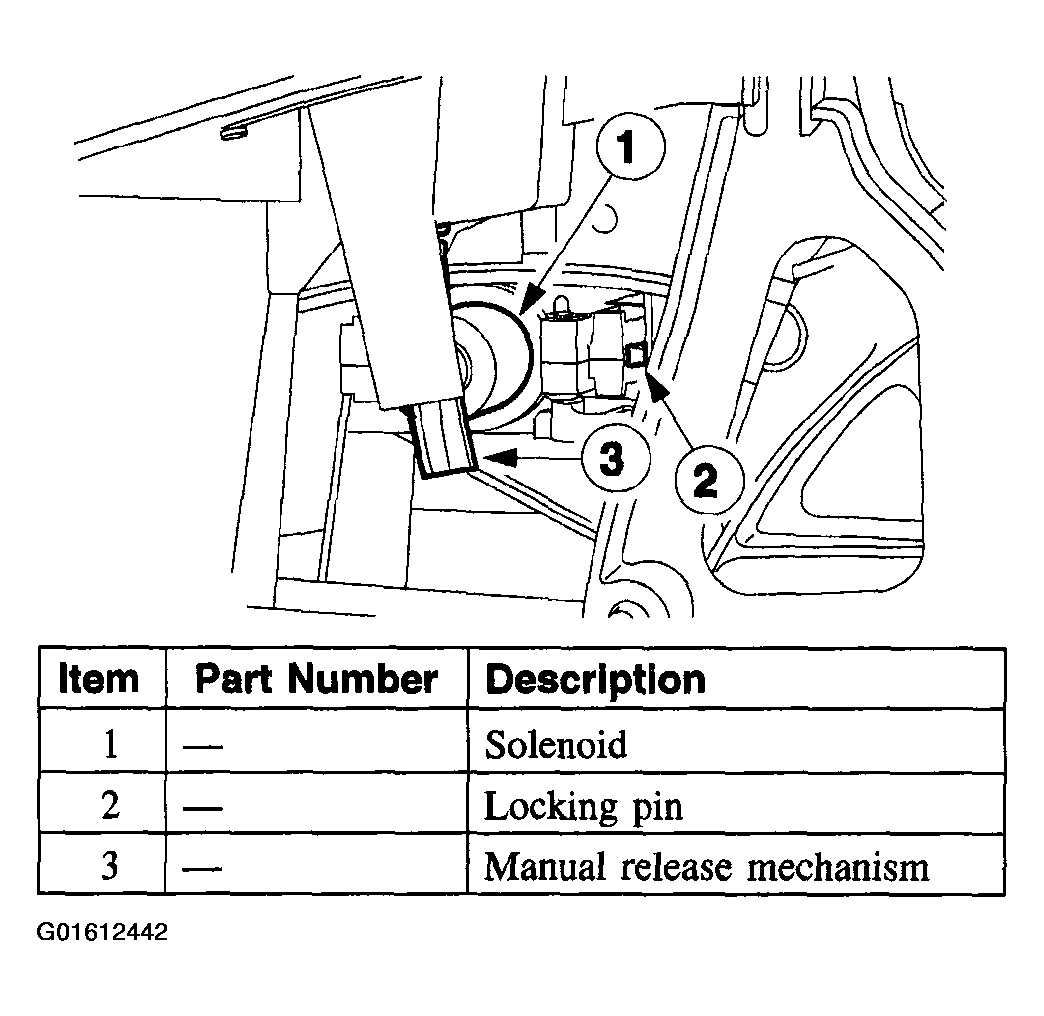

Fig 1: Identifying Manual Selector Lever Shift Lock Solenoid
G01612442Courtesy of FORD MOTOR CO.

When the ignition is switched on, the manual selector lever shift lock solenoid is actuated by depressing the brake (signal from the stoplamp switch). This retracts the locking pin so that he manual selector lever can be moved out of position "P".
