Pinpoint Test E

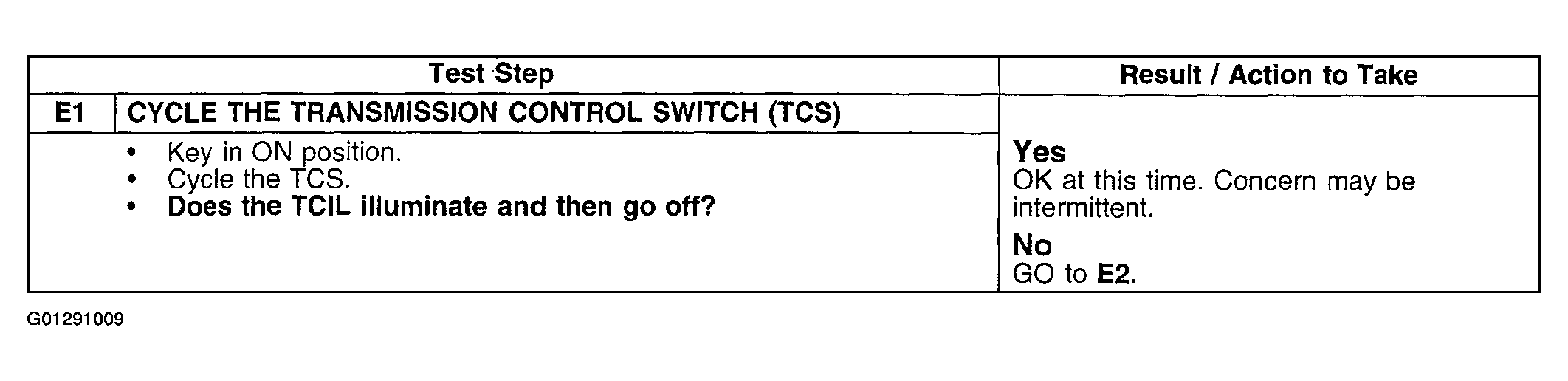

Fig 1: Pinpoint Test E1: Transmission Control Indicator Lamp (TCIL) Is Illuminated Continuously (1 Of 2)
G01291009Courtesy of FORD MOTOR CO.

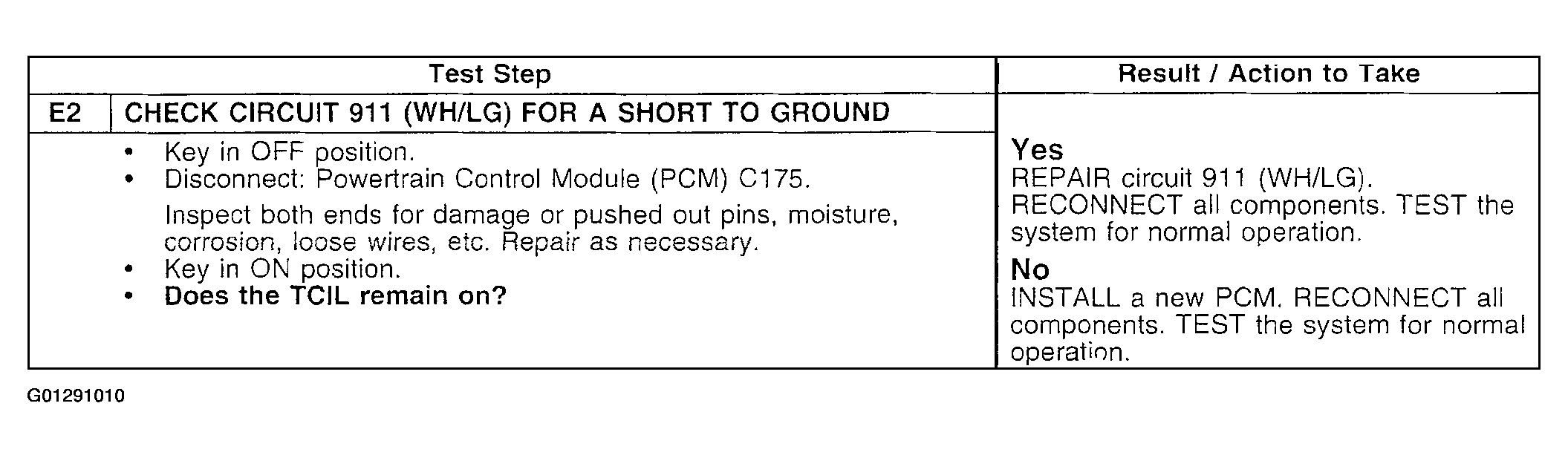

Fig 2: Pinpoint Test E2: Transmission Control Indicator Lamp (TCIL) Is Illuminated Continuously (2 Of 2)
G01291010Courtesy of FORD MOTOR CO.
