Pinpoint Test D

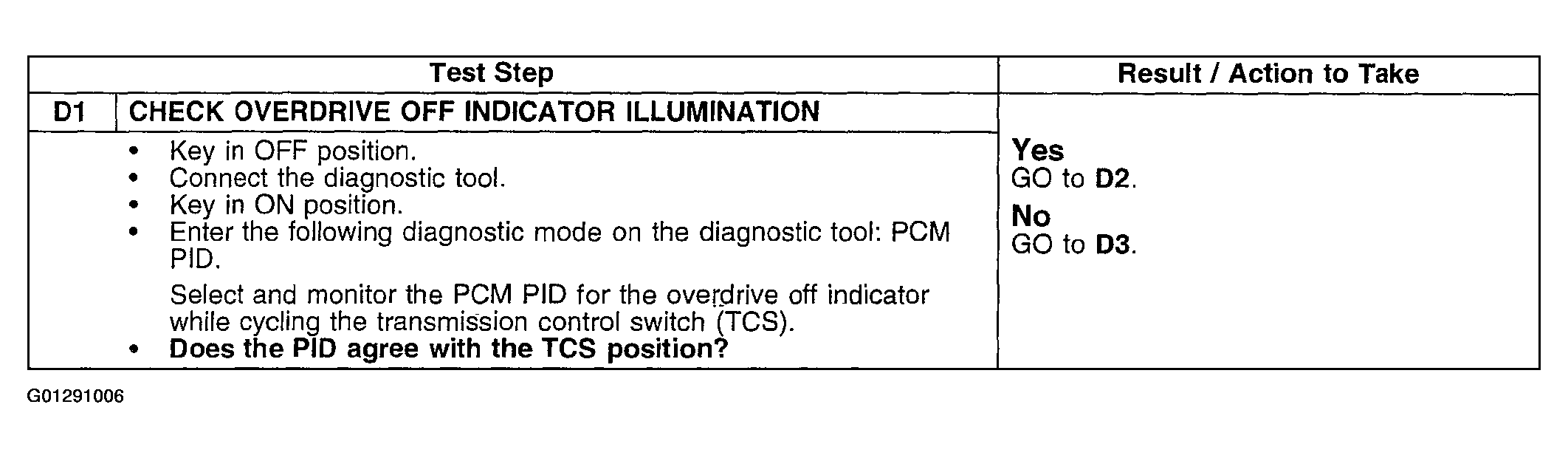

Fig 1: Pinpoint Test D1: Transmission Control Switch (TCS) Does Not Operate Correctly (1 Of 3)
G01291006Courtesy of FORD MOTOR CO.

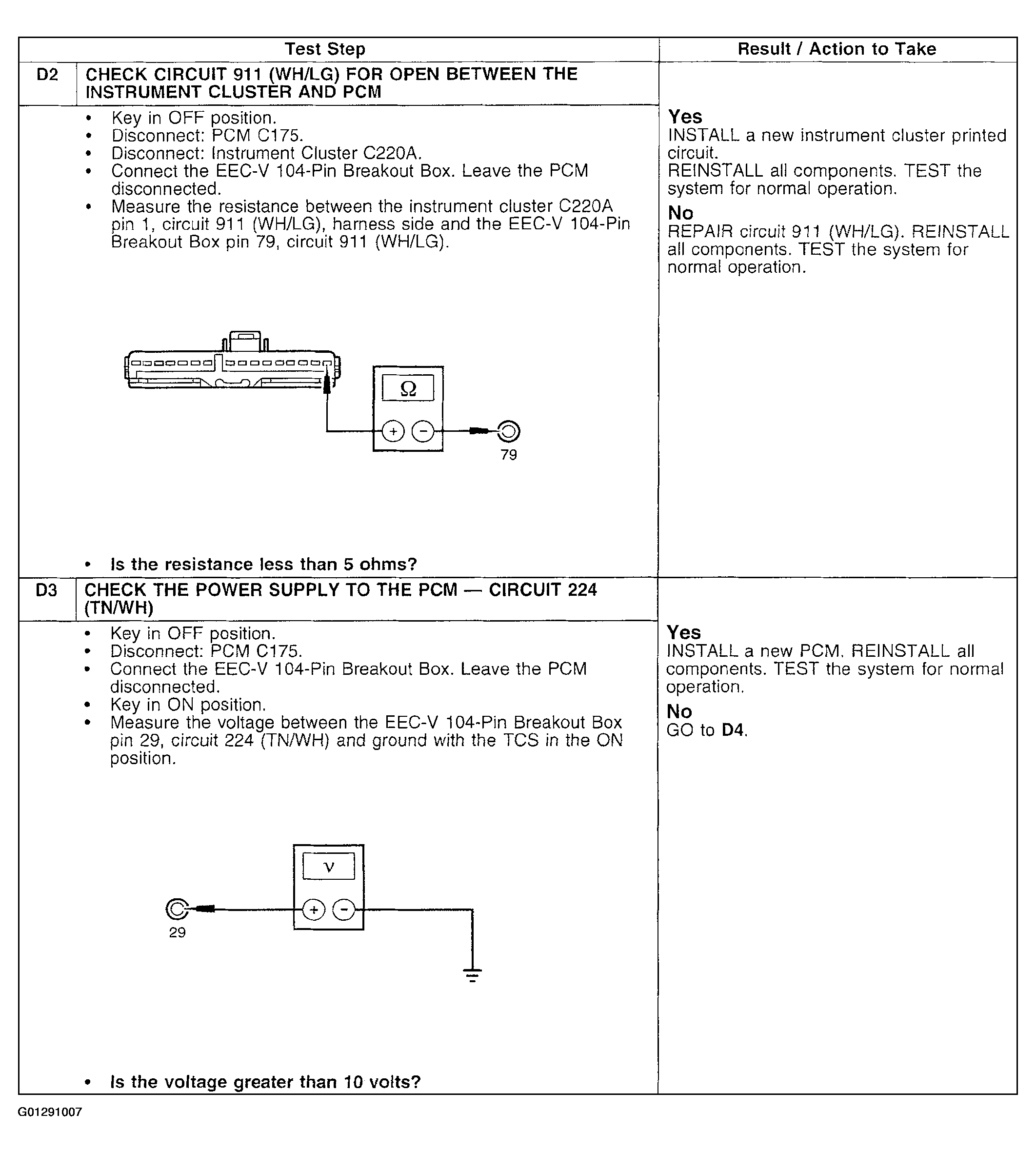

Fig 2: Pinpoint Tests D2 & D3: Transmission Control Switch (TCS) Does Not Operate Correctly (2 Of 3)
G01291007Courtesy of FORD MOTOR CO.

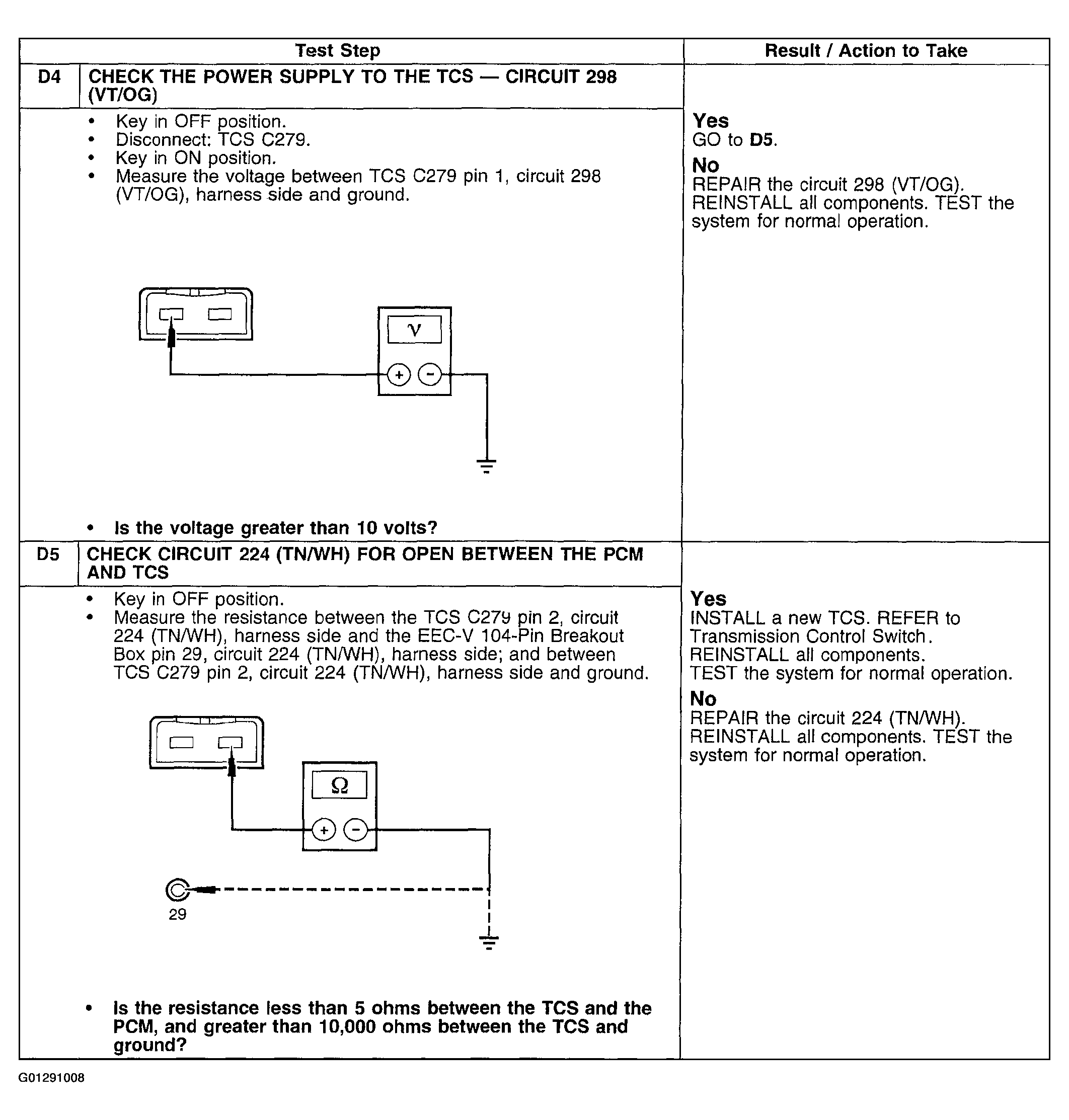

Fig 3: Pinpoint Test D4 & D5: Transmission Control Switch (TCS) Does Not Operate Correctly (3 Of 3)
G01291008Courtesy of FORD MOTOR CO.
