Pinpoint Test B

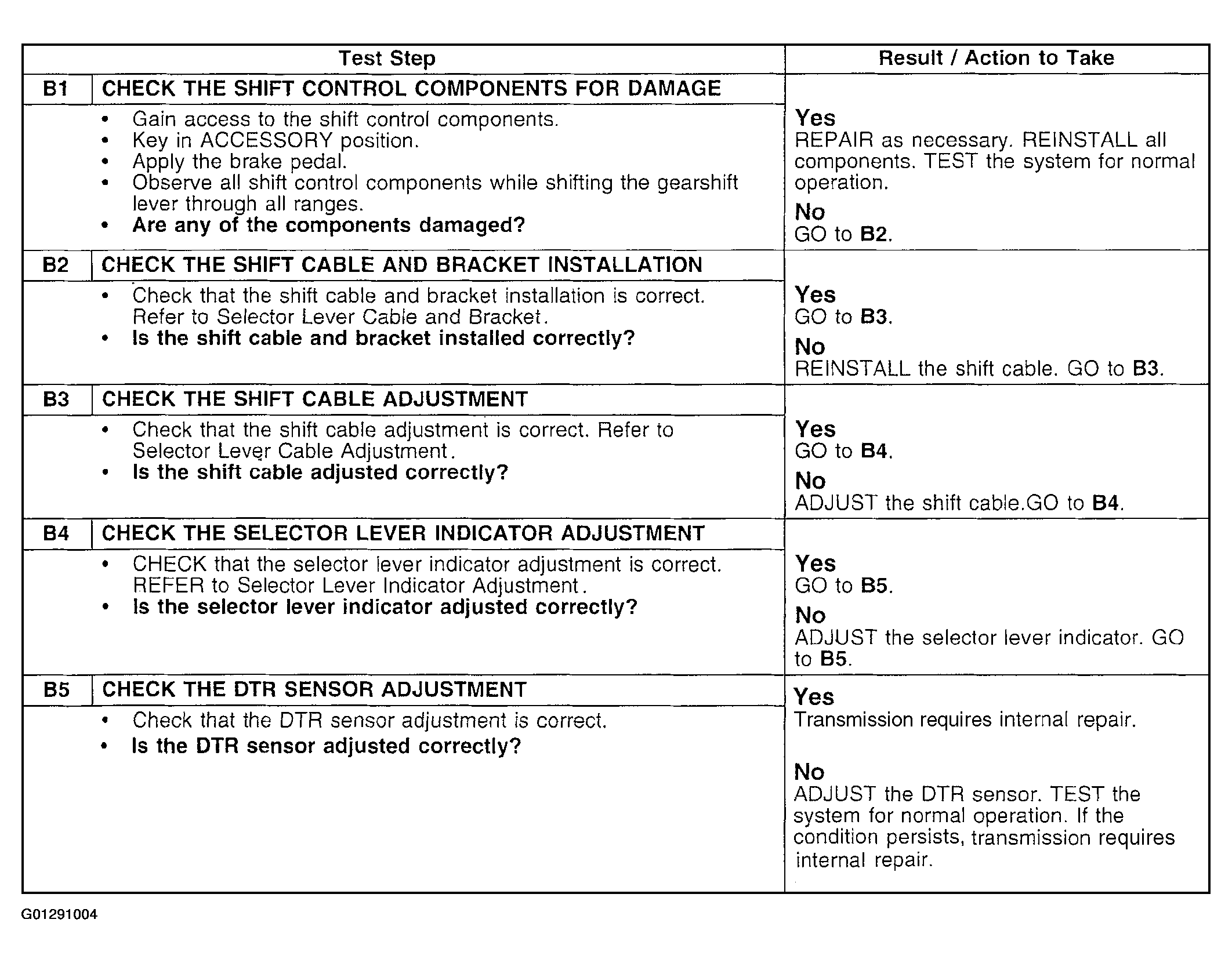

Fig 1: Pinpoint Tests B1-B5: Shift Control Is Out Of Correct Gear Relationship
G01291004Courtesy of FORD MOTOR CO.
