Pinpoint Test A

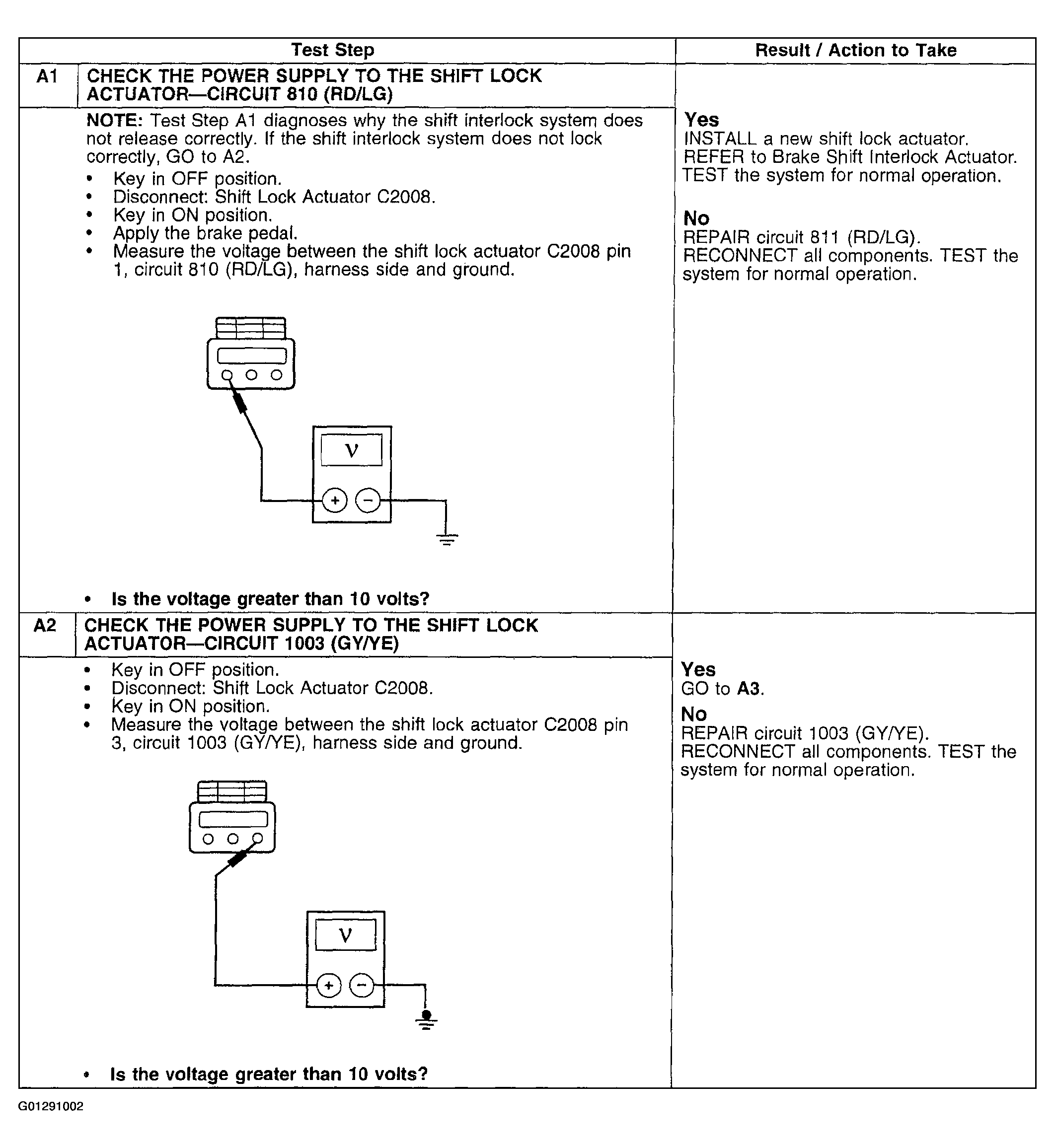

Fig 1: Pinpoint Tests A1 & A2: Shift Interlock System Does Not Release/Lock Correctly (1 Of 2)
G01291002Courtesy of FORD MOTOR CO.

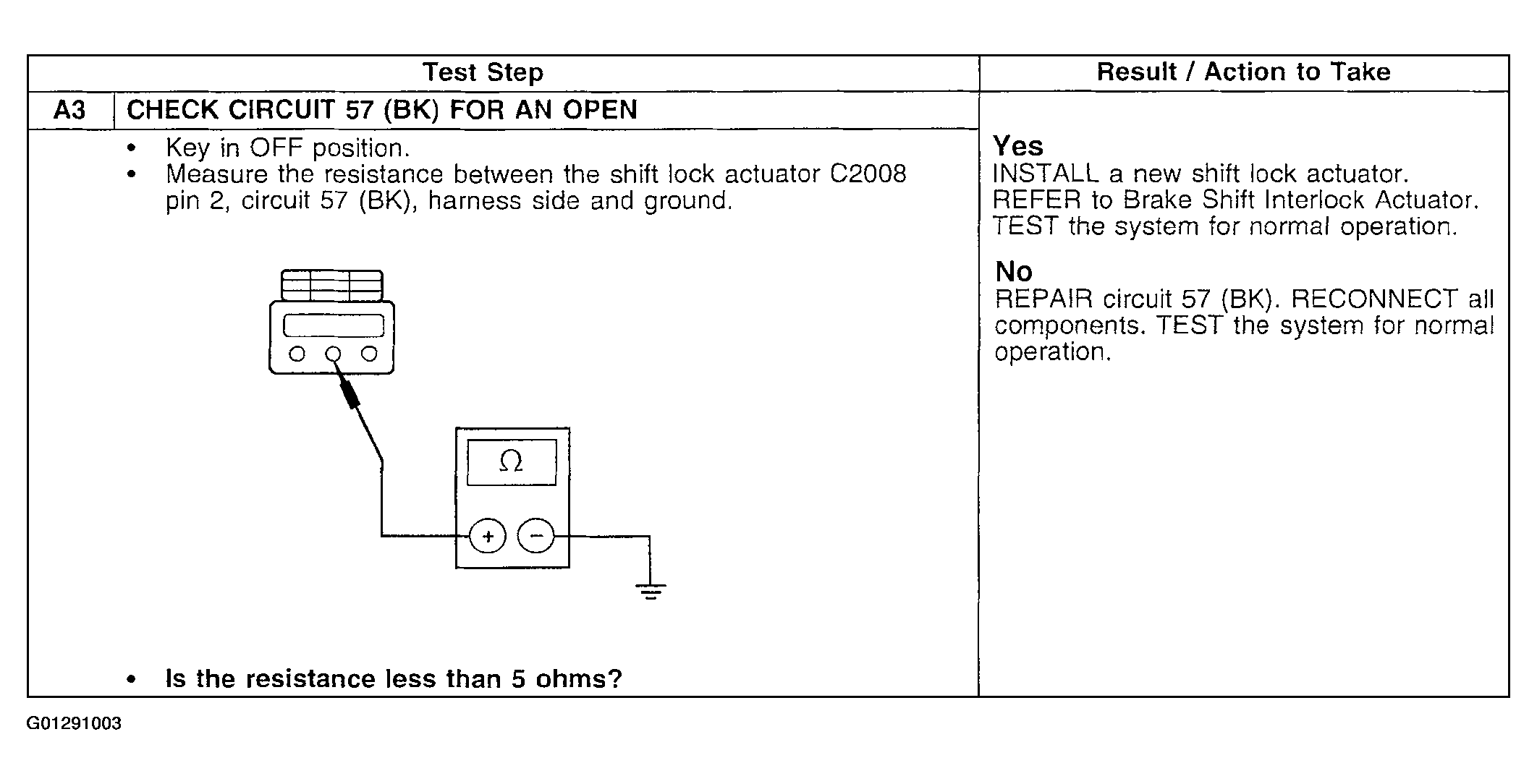

Fig 2: Pinpoint Test A3: Shift Interlock System Does Not Release/Lock Correctly (2 Of 2)
G01291003Courtesy of FORD MOTOR CO.
