Direct Clutch Pack

NOTE: Prior to using this chart, you should check the transmission identification tag. Some early built units will use a different specification.

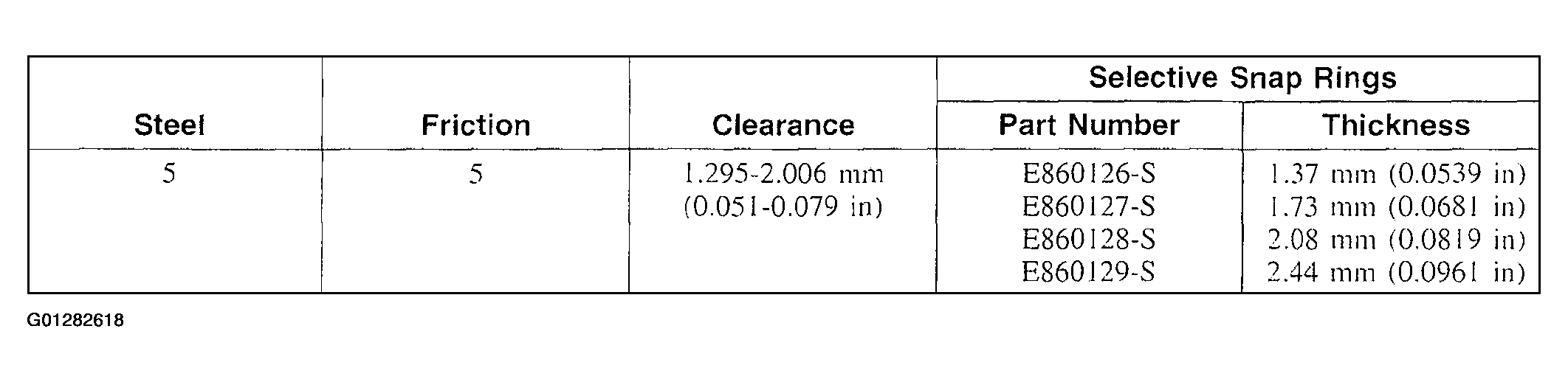

Fig 1: Direct Clutch Pack Specifications
G01282618Courtesy of FORD MOTOR CO.
